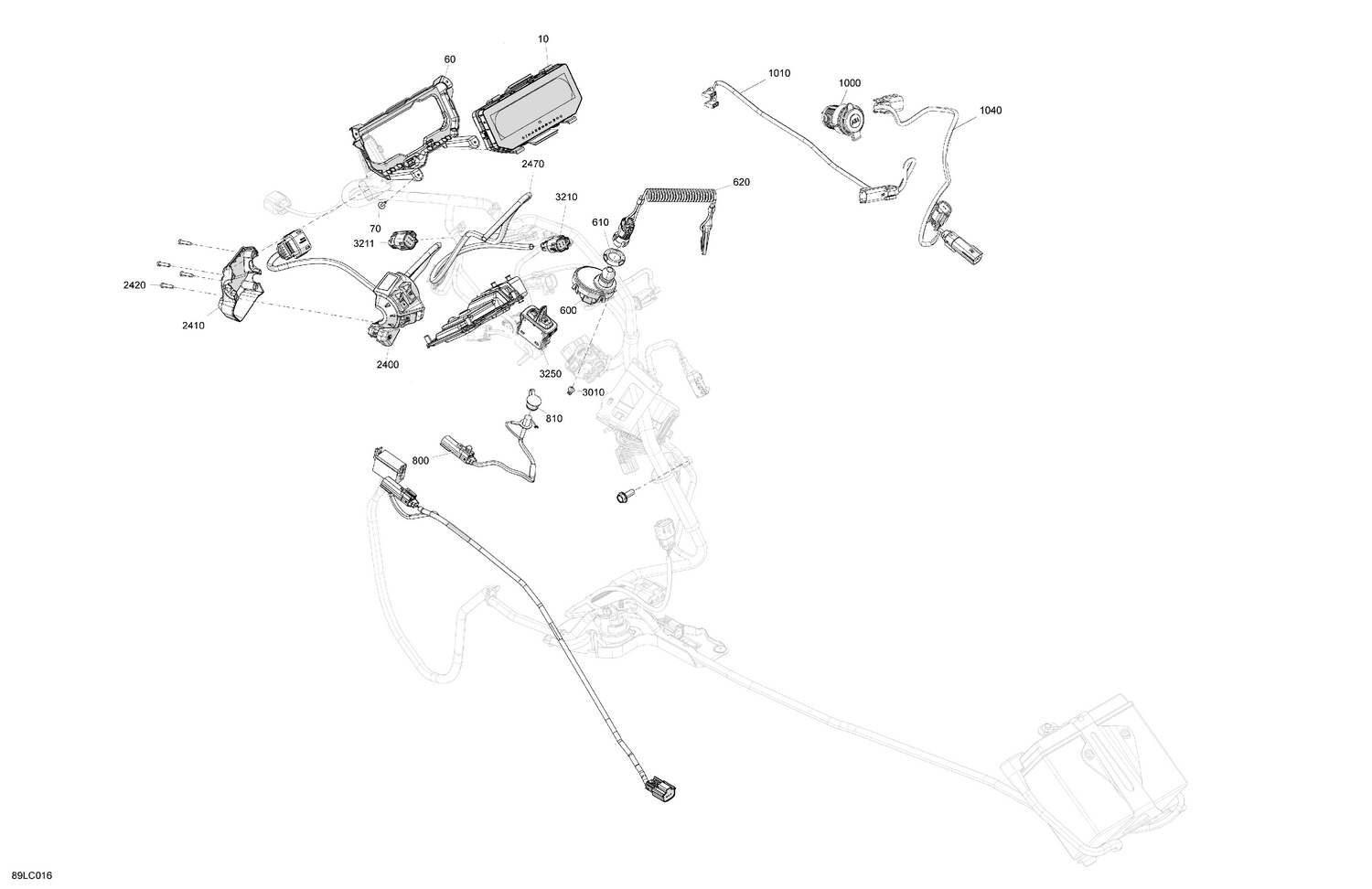

08- Electric - Upper Section
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0351928 | CLAMP, Trunnion cable |
| 2 | 0353897 | VIS, dispositif de blocage vers levier de sens de marche |
| 10 | 515178227 | Multifunction Gauge Full Size Color |
| 60 | 515178965 | Gauge Support |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515179240 | Terminal Dess One Wire |
| 610 | 278004274 | Specialized Nut |
| 620 | 515179476 | Grey, LYNX DESS Key |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 810 | 572103300 | Cap |
| 1000 | 219400510 | USB Outlet |
| 1010 | 515178190 | Harness |
| 1040 | 515178153 | Extension Harness |
| 2400 | 515178196 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 3010 | 515177929 | Rivet |
| 3211 | 515178202 | Connector Coil |
