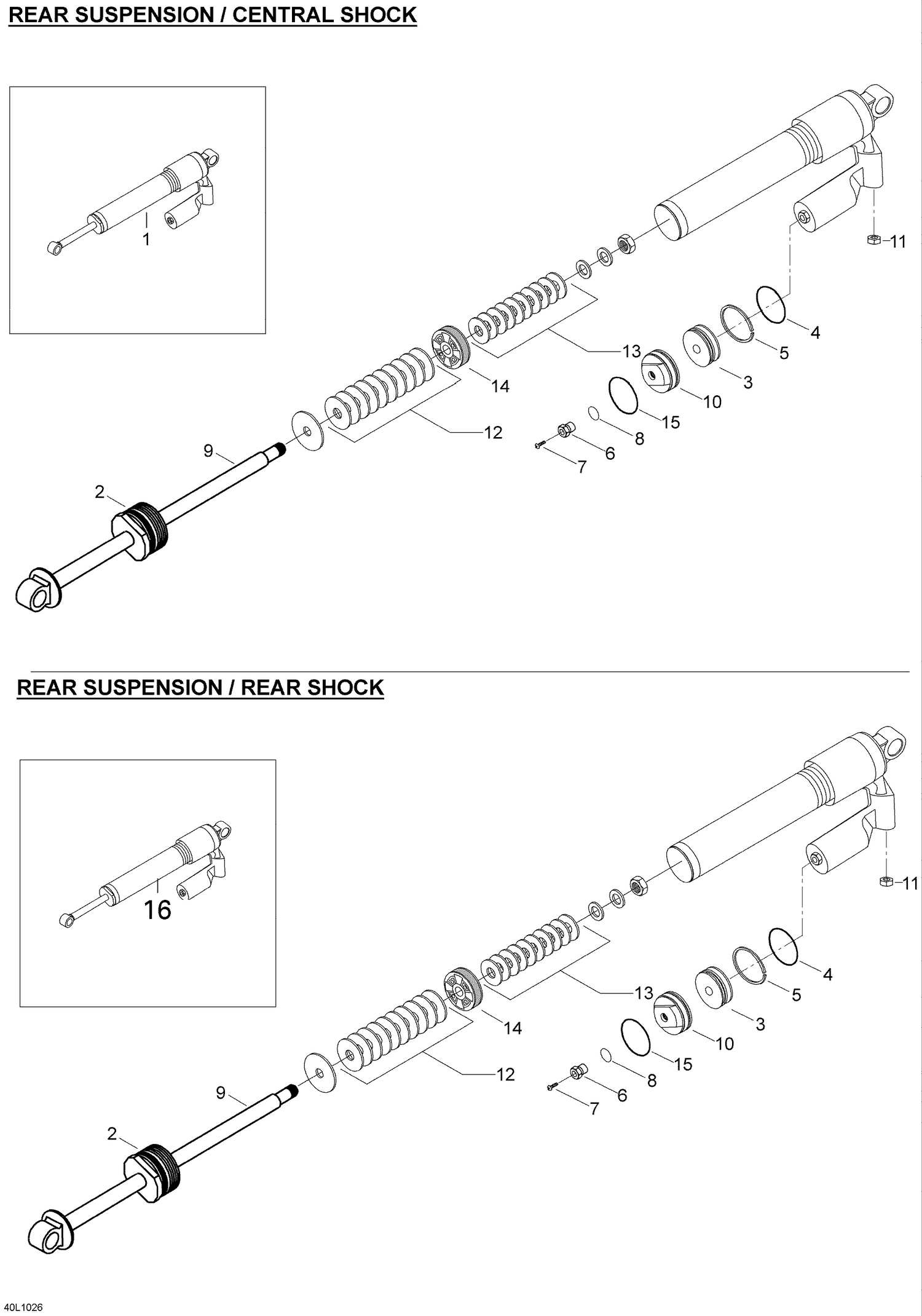

| Ref | Part Number | Description |
|---|
| 1 |
619330003 |
Shock, front arm |
| 2 |
Not |
Available As Spare Part - Seal carrier assy |
| 3 |
Not |
Available As Spare Part - Floating piston |
| 4 |
415093807 |
O-Ring |
| 5 |
503189006 |
PISTON RING - Call your local BRP dealership |
| 6 |
505070398 |
Air Valve |
| 7 |
505070399 |
Screw |
| 8 |
505070400 |
O-Ring |
| 9 |
Not |
Available As Spare Part - Rod ass'y, front arm |
| 10 |
619300009 |
Seal carrier assy |
| 11 |
Not |
Available As Spare Part - Valve ass'y |
| 12 |
230029 |
Leaf valve 20x0.114 |
| 12 |
230030 |
Leaf valve 20x0.152 |
| 12 |
230031 |
Leaf valve 20x0.203 |
| 12 |
230032 |
Leaf valve 20x0.254 |
| 12 |
230033 |
Leaf valve 34x0.114 |
| 12 |
230034 |
Leaf valve 34x0.152 |
| 12 |
230035 |
Leaf valve 34x0.203 |
| 12 |
230036 |
Leaf valve 34x0.254 |
| 12 |
230037 |
Leaf valve 36x0.114 |
| 12 |
230040 |
Leaf valve 38x0.152 |
| 12 |
230041 |
Leaf valve 38x0.203 |
| 12 |
230042 |
Leaf valve 38x0.254 |
| 12 |
230082 |
Leaf valve 32x0.114 |
| 12 |
Not |
Available As Spare Part - Leaf valve 22x0.114 |
| 13 |
230029 |
Leaf valve 20x0.114 |
| 13 |
230030 |
Leaf valve 20x0.152 |
| 13 |
230031 |
Leaf valve 20x0.203 |
| 13 |
230032 |
Leaf valve 20x0.254 |
| 13 |
230033 |
Leaf valve 34x0.114 |
| 13 |
230034 |
Leaf valve 34x0.152 |
| 13 |
230035 |
Leaf valve 34x0.203 |
| 13 |
230036 |
Leaf valve 34x0.254 |
| 13 |
230037 |
Leaf valve 36x0.114 |
| 13 |
230040 |
Leaf valve 38x0.152 |
| 13 |
230041 |
Leaf valve 38x0.203 |
| 13 |
230042 |
Leaf valve 38x0.254 |
| 13 |
230082 |
Leaf valve 32x0.114 |
| 13 |
Not |
Available As Spare Part - Leaf valve 22x0.114 |
| 14 |
230039 |
Piston 2.0 mm |
| 14 |
230043 |
Piston 0 mm. |
| 14 |
503189002 |
Piston, Ø1.7 (C46) |
| 14 |
503189003 |
Piston, Ø1.2 (C46) |
| 14 |
Not |
Available As Spare Part - Piston 2.2 mm |
| 16 |
619330005 |
Shock, rear arm |
