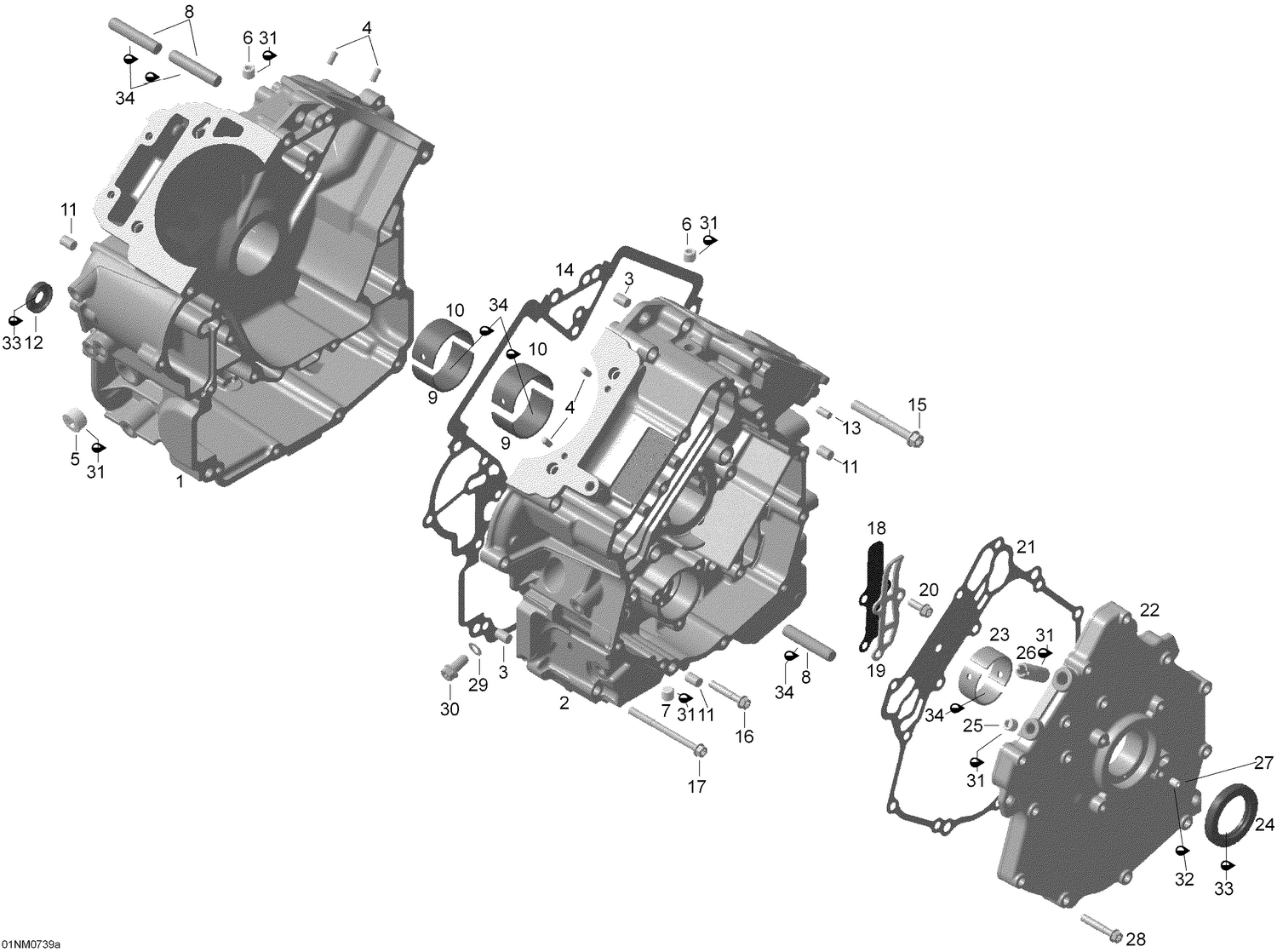

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Crankcase MAG |
| 2 |
Not |
Available As Spare Part - Crankcase PTO |
| 3 |
420632010 |
Center Pin 8 X 12 |
| 4 |
420929650 |
Pin |
| 5 |
420240170 |
Plug |
| 6 |
420641323 |
Plug Screw M10 X 1 |
| 7 |
420840651 |
PLUG SCREW M12 X 1.5 - Call your local BRP dealership |
| 8 |
420229302 |
Location Pin This part replaces 420229301. |
| 9 |
420233960 |
Bearing sleeve |
| 10 |
420233965 |
Bearing sleeve |
| 11 |
420632010 |
Center Pin 8 X 12 |
| 12 |
420650315 |
Oil Seal This part replaces 420650310. |
| 13 |
420932780 |
Pin |
| 14 |
420651220 |
Gasket |
| 15 |
420440402 |
Hex. screw M8 x 65 |
| 16 |
420440274 |
Flanged Torx Screw M6 X 35 This part replaces 420440277. |
| 17 |
420440657 |
Flanged Torx Screw M6 X 75 This part replaces 420440652. |
| 18 |
420224721 |
Valve Plate This part replaces 420224720. |
| 19 |
420224725 |
Reed valve stop |
| 20 |
420641048 |
Flanged Torx Screw M6 X 16 This part replaces 420440167. |
| 21 |
420651211 |
Gasket This part replaces 420651210. |
| 23 |
420233995 |
Bearing half |
| 24 |
420631933 |
Oil Seal This part replaces 420631932. |
| 25 |
420641323 |
Plug Screw M10 X 1 |
| 26 |
420256332 |
Hose nipple |
| 27 |
420841771 |
SET SCREW M6 X 8 - Call your local BRP dealership |
| 28 |
420440274 |
Flanged Torx Screw M6 X 35 This part replaces 420440277. |
| 29 |
420950141 |
Sealing Ring A 8X13 DIN 7603 |
| 30 |
420440852 |
Flanged Torx Screw M8 X 16 |
| 31 |
293800060 |
Loctite 243, 10 ml |
| 32 |
219703000 |
Sealant Loctite 648 This part replaces 420899788. |
| 33 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
