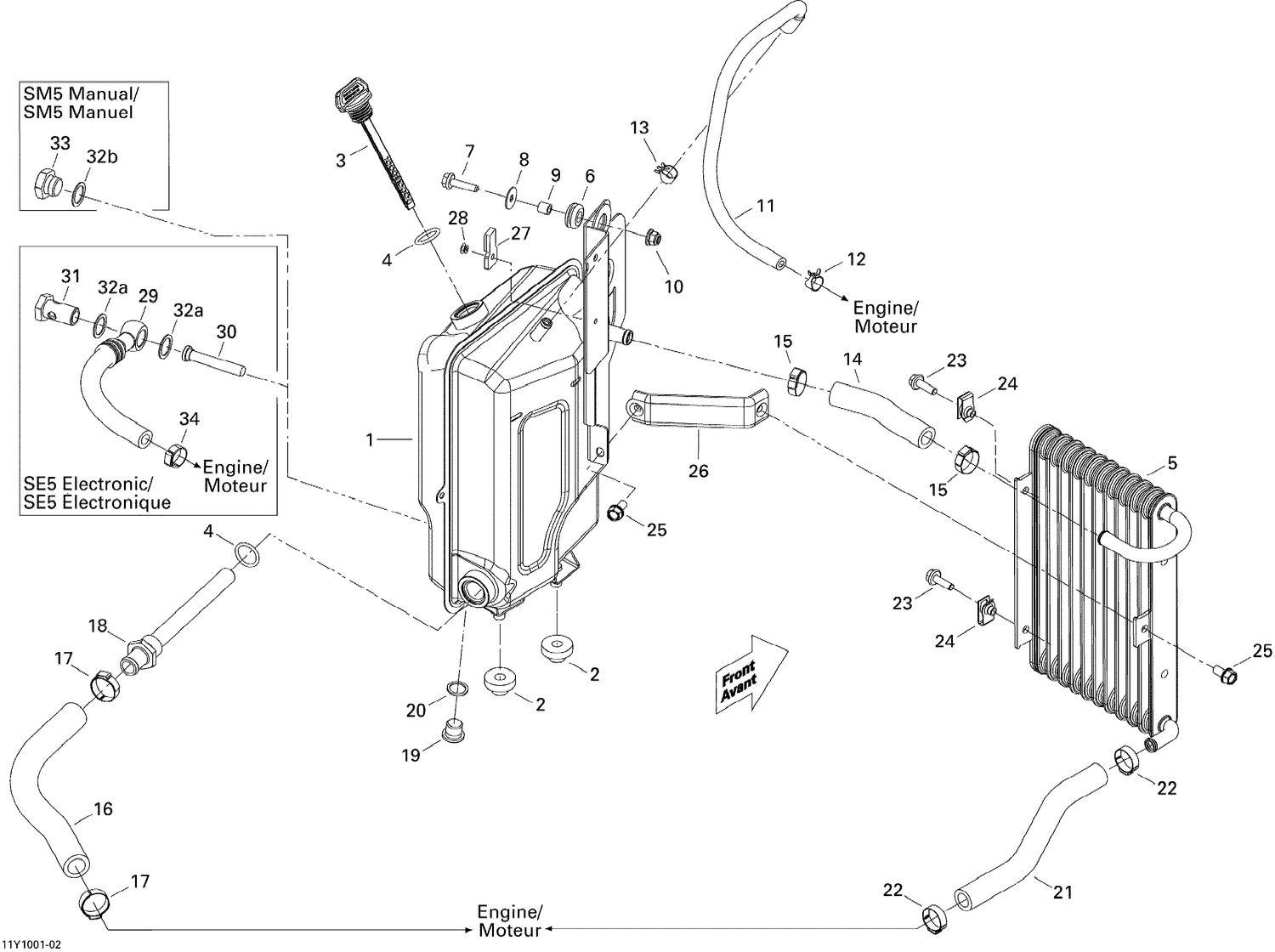

| Ref | Part Number | Description |
|---|
| 1 |
519000246 |
OIL TANK - Call your local BRP dealership |
| 2 |
709200285 |
Grommet |
| 3 |
519000155 |
Oil Cap |
| 4 |
709000218 |
O-Ring |
| 5 |
519000123 |
OIL RADIATOR - Call your local BRP dealership |
| 6 |
709000582 |
Grommet This part replaces 293720053. |
| 7 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 8 |
224060201 |
Flat Washer |
| 9 |
293900105 |
Bushing This part replaces 293900045. |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
519000208 |
Formed Hose |
| 12 |
414415200 |
Spring Clamp |
| 13 |
414655700 |
Spring Clamp |
| 15 |
293650186 |
Oetiker Clamp |
| 17 |
509000552 |
Gear Clamp |
| 18 |
519000219 |
Strainer |
| 19 |
705500504 |
Fill Level Plug |
| 20 |
705500506 |
Copper Washer |
| 22 |
293650186 |
Oetiker Clamp |
| 23 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 24 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 25 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 26 |
519000175 |
RADIATOR SUPPORT - Call your local BRP dealership |
| 27 |
XXX |
Not Available As Spare Parts |
| 28 |
XXX |
Not Available As Spare Parts |
| 29 |
XXX |
Not Available As Spare Parts |
| 30 |
XXX |
Not Available As Spare Parts |
| 31 |
XXX |
Not Available As Spare Parts |
| 32a |
XXX |
Not Available As Spare Parts |
