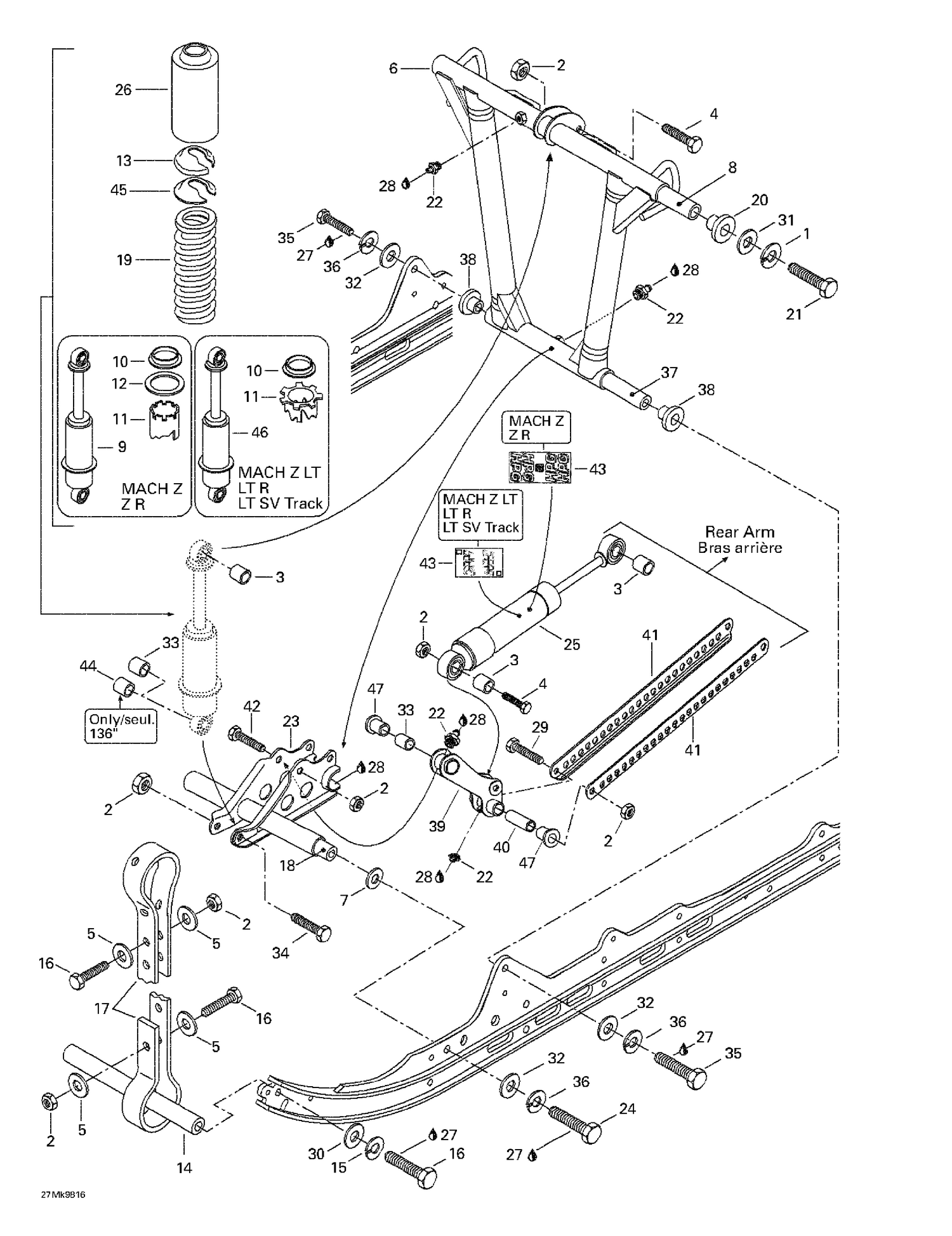

08- Front Arm, Rear Suspension

08- Front Arm, Rear Suspension

Parts (28)

RefPart NumberDescription
1 234101601 Helicoidal Lock Washer M10 This part replaces 213000003.
2 232581414 Hex. Elastic Stop Nut M8 This part replaces 228581045.
4 207084044 Hex. Screw M8 X 40 This part replaces 222084065.
5 517078700 WASHER - Call your local BRP dealership
6 503176000 Welded Front Arm
7 503175400 Hardened Washer
8 503190387 SHAFT - Call your local BRP dealership This part replaces 503159000.
13 706200881 Spring Stopper This part replaces 503140600.
14 503151600 Axle
15 234181401 Lock Washer 8 mm This part replaces 224781140.
16 207183044 Hex. Screw M8 X 30 This part replaces 222083065.
17 570038800 Stopper Strap
20 503189324 Bushing This part replaces 415027900.
21 207006044 HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065.
22 408200700 Grease Fitting
26 503193663 Protector This part replaces 517280900.
27 293800005 Loctite 271, 10 ml This part replaces 413707400.
28 413706100 LITHIUM GREASE, 400 GR - Call your local BRP dealership
30 234081410 Flat Washer 8 mm This part replaces 224081171.
31 234001410 Flat Washer 10 mm This part replaces 224001211.
32 234021410 Flat Washer 12 mm This part replaces 224021251.
34 207085544 Hex. Screw M8 X 55 This part replaces 222085565.
35 222026065 Hex. Screw M12 x 60
36 224721218 Lock Washer 12 mm
37 503182000 Shaft
38 415026300 Cushion
42 207085044 Hex. Screw M8 X 50 This part replaces 222085065.
45 706200785 Cap This part replaces 503141600.
