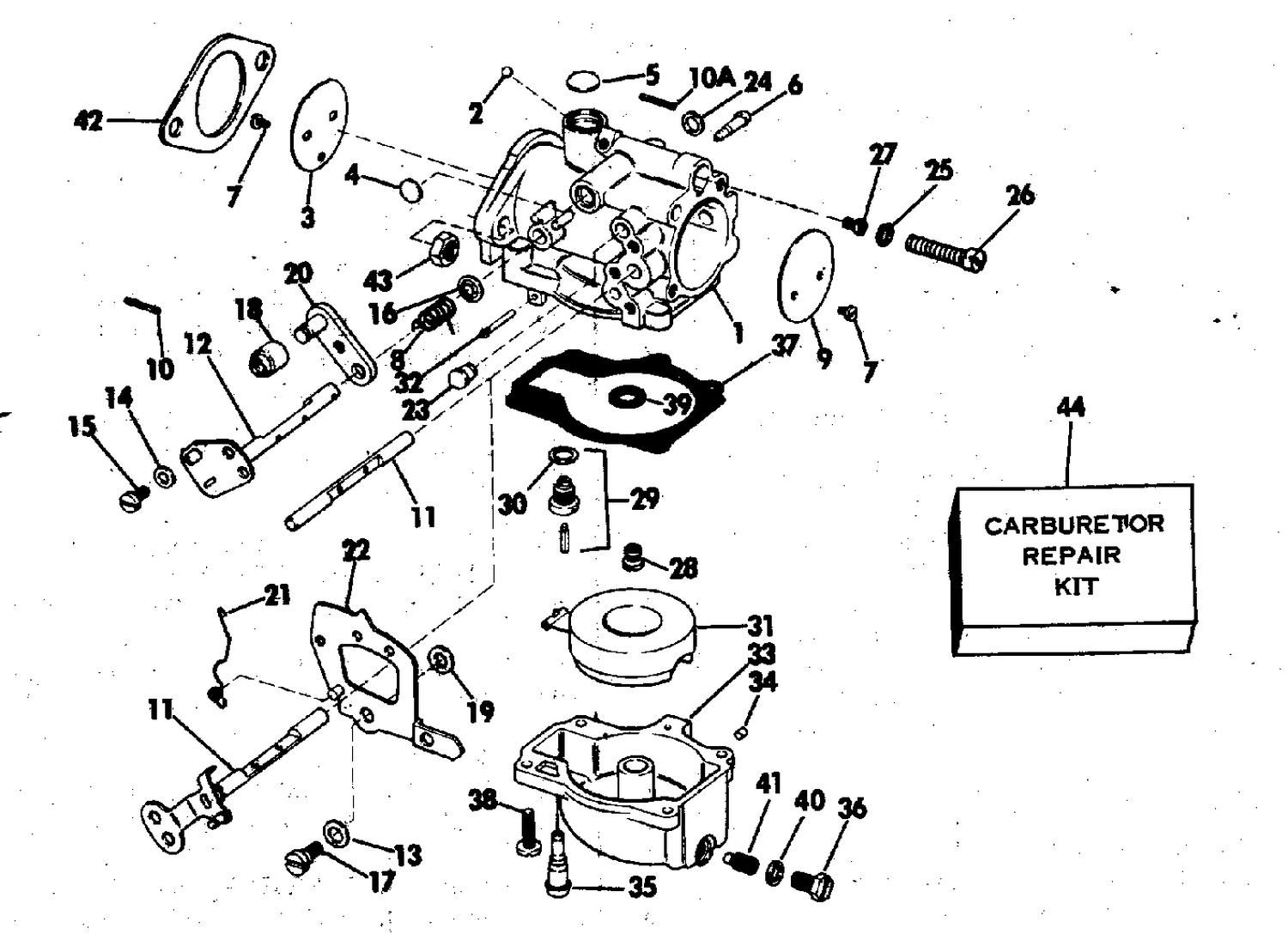

CARBURETOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0386271 | BODY ASSY, Upper and lower |
| 1 | 0386272 | BODY ASSY, Middle |
| 9 | 0322182 | CHOKE VALVE This part replaces 0313359. |
| 11 | 0321798 | CHOKE SHAFT This part replaces 0313358. |
| 33 | 0383318 | FLOAT CHAMBER ASSEMBLY |
| 33 | 0387077 | FLOAT CHAMBER ASSY |
| 36 | 0307832 | PLUG, Screw |
| 41 | 0319907 | ORIFICE PLUG |
| 42 | 0325092 | GASKET This part replaces 0314477. |
| 43 | 0316355 | BUT, Carburetor mounting |
| 0386268 | 0386268 | CARBURETOR ASSY, Upper |
| 0387091 | 0387091 | CARBURETOR ASSY.,Middle |
