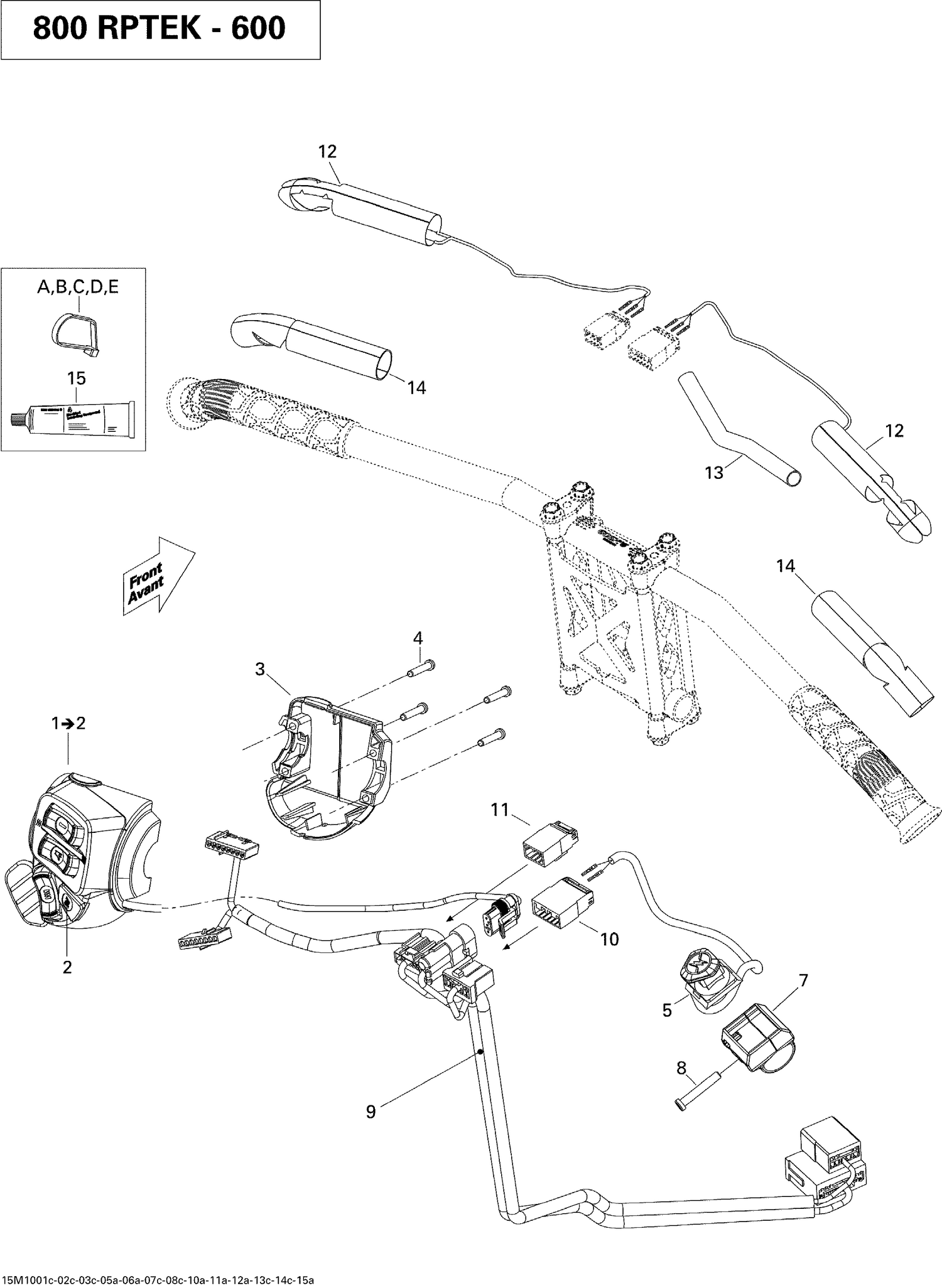

| Ref | Part Number | Description |
|---|
| A |
414115200 |
Tie-Rap 180 mm |
| B |
293750008 |
Tie Wrap 368 mm |
| C |
293750002 |
Tie Wrap 142 mm |
| D |
293750009 |
Tie-Rap 173 mm |
| 2 |
515176088 |
Start/RER Button |
| 3 |
515175926 |
Switch Housing Plate |
| 4 |
250000263 |
Torx Screw #8-18 |
| 5 |
515177362 |
Emergency Stop Switch This part replaces 515176725. |
| 7 |
515177310 |
Emergency Stop Switch Support This part replaces 515176825. |
| 8 |
250000263 |
Torx Screw #8-18 |
| 9 |
515177054 |
STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership This part replaces 515176422. |
| 10 |
515175662 |
Male Terminal Housing, 6 Circuits |
| 11 |
515175846 |
Male Terminal Housing, 4 Circuits |
| 12 |
506152371 |
Heating Element 32W |
| 13 |
219704427 |
LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 14 |
506152360 |
Insulant |
| 15 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
