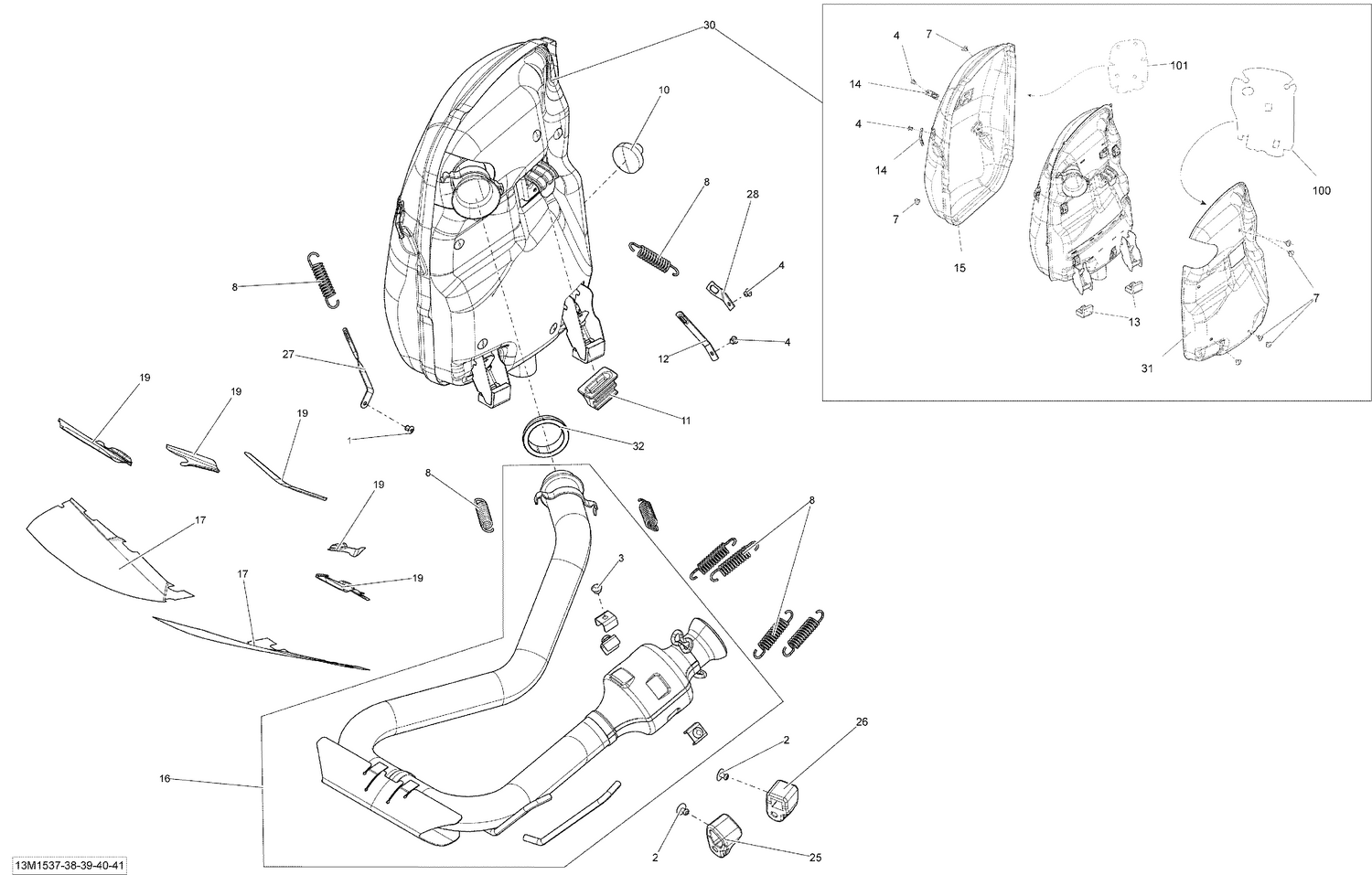

01- Exhaust System _13M1538
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293150027 | Avdel Rivet |
| 2 | 293150103 | Pop Rivet 3/16" |
| 3 | XXX | Not Available As Spare Parts |
| 4 | 390909200 | Avex Rivet |
| 7 | 390910000 | Pop Rivet 3/16” |
| 8 | 415107100 | Spring |
| 10 | 514053654 | Rubber Bumper |
| 11 | 514054346 | Stopper |
| 12 | XXX | Not Available As Spare Parts |
| 13 | 514054496 | Lower Stopper |
| 14 | 514054522 | Spring Bracket |
| 15 | 514055325 | RH Heat Shield This part replaces 514054644. |
| 16 | 514054960 | Welded Pipe |
| 17 | 514054999 | HEAT SHIELD - Call your local BRP dealership |
| 19 | XXX | Not Available As Spare Parts |
| 25 | 514055012 | Rubber |
| 26 | XXX | Not Available As Spare Parts |
| 27 | 514055030 | Spring Bracket |
| 28 | 514055037 | Spring Bracket |
| 30 | 514055324 | Muffler Ass'y This part replaces 514055127. |
| 31 | 514055128 | LH HEAT SHIELD - Call your local BRP dealership |
| 32 | 707601033 | Exhaust Gasket |
| 100 | 514054769 | RH Insulating Wool |
