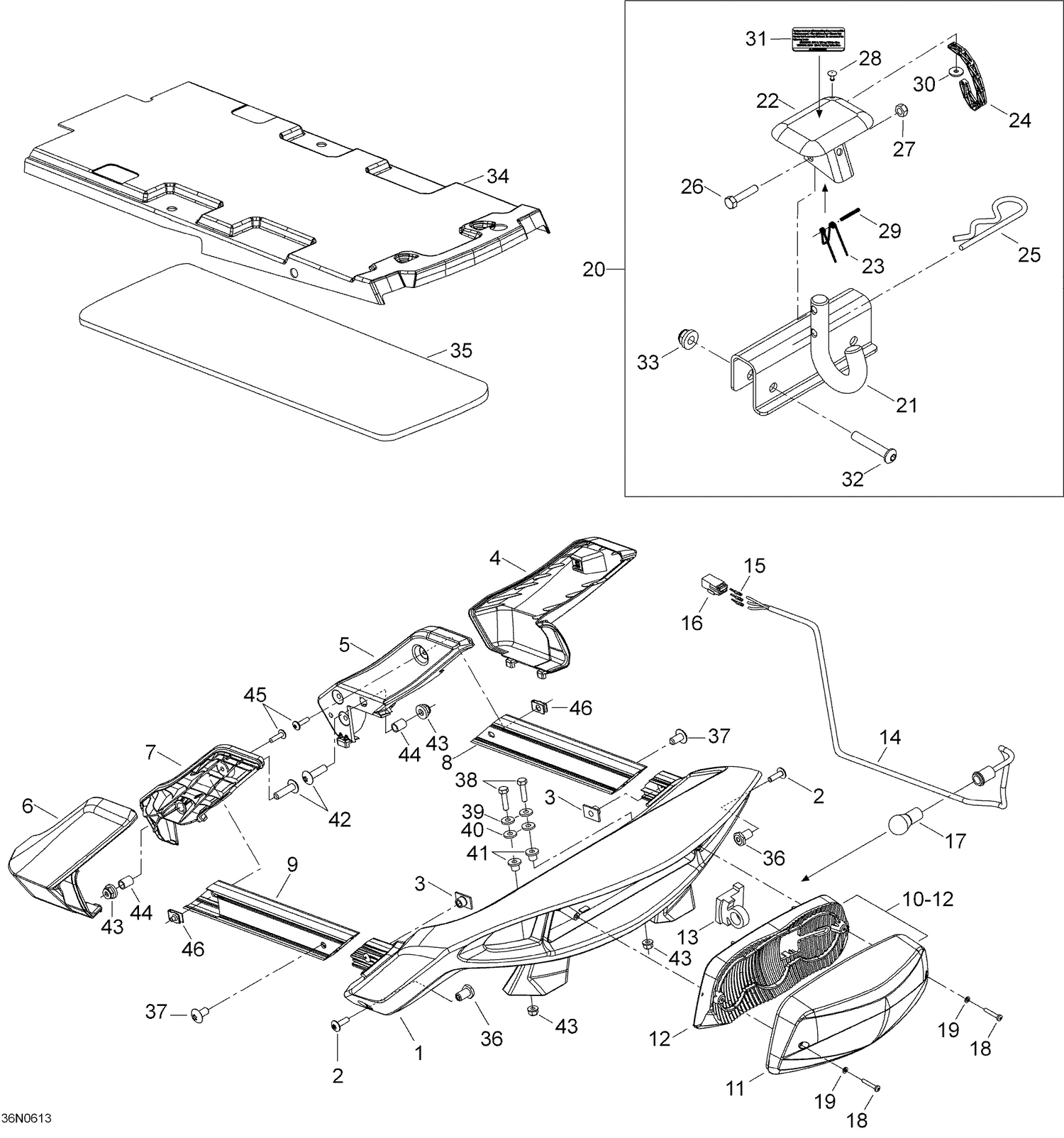

| Ref | Part Number | Description |
|---|
| 1 |
511000317 |
RACK - Call your local BRP dealership |
| 2 |
250000722 |
Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 3 |
511000341 |
THREAD INSERT - Call your local BRP dealership |
| 4 |
511000322 |
RH OUTSIDE ARM - Call your local BRP dealership |
| 5 |
511000326 |
RH INSIDE ARM - Call your local BRP dealership |
| 6 |
511000323 |
LH OUTSIDE ARM - Call your local BRP dealership |
| 7 |
511000327 |
LH INSIDE ARM - Call your local BRP dealership |
| 8 |
511000321 |
RH SIDE BAR - Call your local BRP dealership |
| 9 |
511000345 |
LH SIDE BAR - Call your local BRP dealership |
| 11 |
Not |
Available As Spare Part - lens |
| 12 |
510004442 |
REFLECTOR - Call your local BRP dealership |
| 13 |
511000431 |
BULB SUPPORT - Call your local BRP dealership |
| 14 |
515175852 |
Lampa hållare och kabel set |
| 15 |
605642628 |
CONNECTOR - Call your local BRP dealership |
| 16 |
42271 |
Male connector housing (6 circuits) |
| 17 |
520000758 |
Bulb This part replaces 410504000. |
| 18 |
209632580 |
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 19 |
414516400 |
Washer - Call your local BRP dealership |
| 21 |
511000354 |
HITCH, BLACK - Call your local BRP dealership |
| 22 |
517152700 |
Hitch protector |
| 23 |
517152800 |
SPRING - Call your local BRP dealership |
| 24 |
Not |
Available As Spare Part - Chain |
| 25 |
114045200 |
Hair Pin |
| 26 |
207063044 |
Hex. Screw M6 X 30 |
| 27 |
Not |
Available As Spare Part - Elastic stop nut M6 |
| 28 |
390409400 |
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 29 |
732804000 |
SPRING PIN M3 X 24 - Call your local BRP dealership |
| 30 |
Not |
Available As Spare Part - Washer |
| 31 |
516003037 |
WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership This part replaces 516002685. |
| 32 |
207084544 |
Hex. Screw M8 X 45 This part replaces 40008. |
| 33 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 34 |
605352773 |
Radiator cover |
| 35 |
605354257 |
Support |
| 36 |
511000398 |
INSERT - Call your local BRP dealership |
| 37 |
250000746 |
Torx Truss M/S M8 X 16 This part replaces 250000198. |
| 38 |
40393 |
Socket head screw M6 x 30 |
| 39 |
20052 |
WASHER-LOCK DIN.127B |
| 40 |
20117 |
Washer |
| 41 |
511000340 |
FLANGED BUSHING - Call your local BRP dealership |
| 42 |
40386 |
Hex. screw M8 x 30 |
| 43 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 44 |
511000325 |
BUSHING - Call your local BRP dealership |
| 45 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
