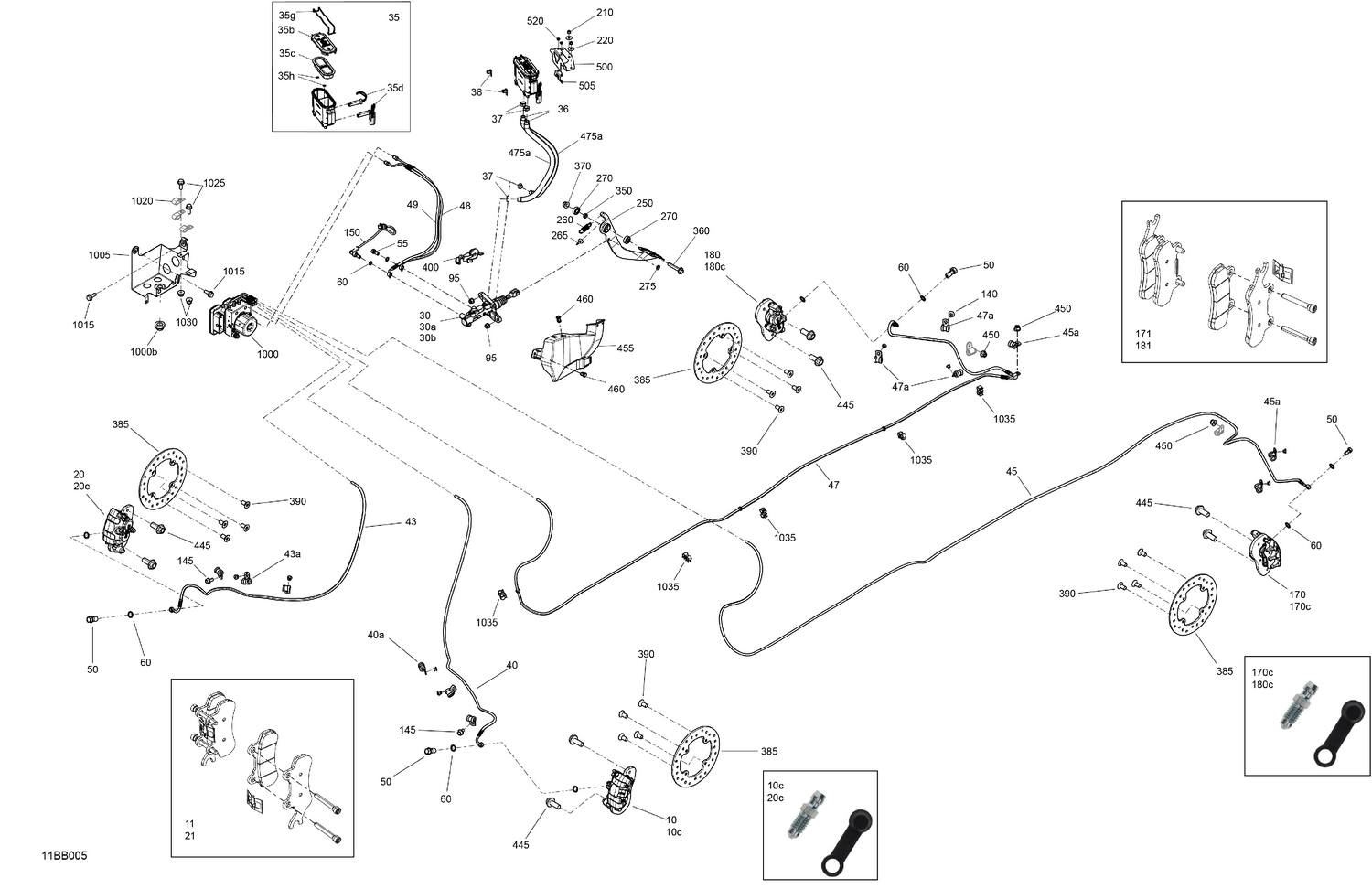

03- Mechanic - Brake System
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 10c | 705601017 | Bleeding Screw |
| 11 | 703501198 | LH/RH Front Brake Pad Set |
| 20c | 705601017 | Bleeding Screw |
| 21 | 703501198 | LH/RH Front Brake Pad Set |
| 30a | 715900373 | Boot Rod Kit |
| 30b | 715900374 | Fork Kit |
| 35b | 219800350 | Diaphragm Cover Ass'y |
| 35c | 219800350 | Diaphragm Cover Ass'y |
| 35d | 705601073 | Oil Level Sensor |
| 35g | 705601294 | Spindle Lock |
| 35h | 211100002 | Push Nut |
| 36 | 705601801 | Hose |
| 37 | 293650046 | Oetiker Clamp |
| 38 | 710001343 | Clip |
| 40a | 293650256 | Clamp |
| 43a | 293650256 | Clamp |
| 45a | 293650256 | Clamp |
| 47a | 293650256 | Clamp |
| 48 | 705601663 | Front Master Cylinder Hose |
| 49 | 705601664 | Rear Master Cylinder Hose |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 55 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer |
| 95 | 233281416 | Hex. Elastic Flange Nut M8 |
| 140 | 390402200 | Pop Rivet 3/16" |
| 145 | 210261040 | Hex. Flange Screw M6 X 10 |
| 150 | 705601669 | Brake Switch |
| 170c | 705601017 | Bleeding Screw |
| 171 | 703501199 | LH/RH Rear Brake Pad Set |
| 180c | 705601017 | Bleeding Screw |
| 181 | 703501199 | LH/RH Rear Brake Pad Set |
| 210 | 233251494 | Elastic Flange Nut M5 |
| 220 | 250200040 | Flat Washer |
| 250 | 705601537 | Brake Pedal |
| 260 | 705600792 | Brake Pedal Spring |
| 265 | 708000759 | Rubber Stopper |
| 270 | 705600458 | Bearing |
| 275 | 250200183 | Nylon Flat Washer M8 |
| 350 | 705601622 | Bushing |
| 360 | 207605546 | Hex. Flange Screw M10 X 55 |
| 370 | 233201436 | Hex. Flange Elastic Nut M10 |
| 385 | 705601511 | Brake Disc |
| 390 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 400 | 705601750 | Hose Support |
| 445 | 207502546 | Hex. Flange Screw M10 X 25 |
| 450 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 455 | 705601626 | Master Cylinder Deflector |
| 460 | 293150230 | Tuflok Plastic Rivet |
| 475a | 710009588 | Tubing Protector 16 mm (1 meter pac) |
| 500 | 705601644 | Reservoir Support |
| 505 | 705601608 | Stopper Bracket |
| 520 | 390402200 | Pop Rivet 3/16" |
| 1000b | 710003279 | Shock Damper |
| 1005 | 705601642 | Module Support |
| 1015 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1020 | 515175980 | OPEN CLAMP - Call your local BRP dealership |
| 1025 | 207661644 | Hex. Flange Screw M6 X 16 |
| 1030 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
