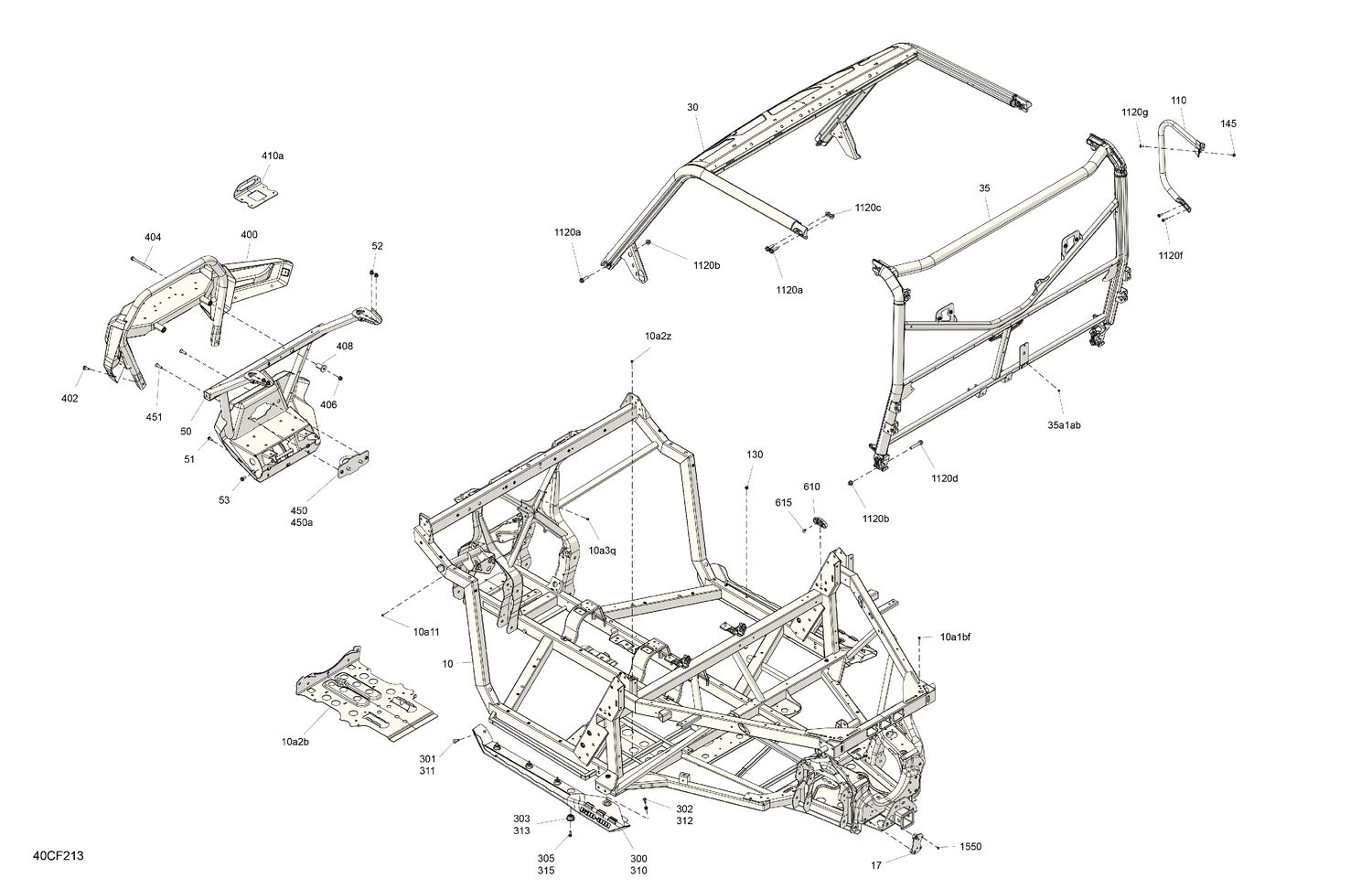

| Ref | Part Number | Description |
|---|
| 10 |
715011327 |
Chassis |
| 10a11 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 10a1bf |
293150293 |
Pop Rivet 3/16 X ,425 |
| 10a2b |
705213496 |
Front Skid Plate |
| 10a2z |
293150293 |
Pop Rivet 3/16 X ,425 |
| 10a3q |
293150293 |
Pop Rivet 3/16 X ,425 |
| 17 |
705212825 |
Rear Chassis Reinforcement |
| 30 |
715011122 |
Deep Black, Front Cage Ass'y |
| 35 |
715011282 |
Deep Black, Rear Cage Ass'y |
| 35a1ab |
293150293 |
Pop Rivet 3/16 X ,425 |
| 50 |
705211301 |
Deep Black, Front Bumper |
| 51 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 53 |
207502546 |
Hex. Flange Screw M10 X 25 |
| 110 |
705210930 |
Deep Black, RH Guard |
| 130 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 145 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 300 |
705212382 |
Deep Black, LH Panel Guard |
| 301 |
250000745 |
Hex Torx Truss M8 X30 |
| 302 |
250000722 |
Torx Screw M6 X 20 |
| 303 |
705212754 |
Cup |
| 305 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 310 |
705212387 |
Deep Black, RH Panel Guard |
| 311 |
250000745 |
Hex Torx Truss M8 X30 |
| 312 |
250000722 |
Torx Screw M6 X 20 |
| 313 |
705212754 |
Cup |
| 315 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 400 |
705212314 |
Deep Black, Front Bumper |
| 402 |
207682056 |
Hex Flange Screw M8 X 20 |
| 404 |
250001360 |
Hex.Flange Screw M8 X 115 |
| 406 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 408 |
705207754 |
Spacer |
| 410a |
705211620 |
Deep Black, Winch Support |
| 450a |
705213100 |
Front Tow Hook |
| 451 |
250000953 |
Torx Truss M/S M8 X 20 |
| 610 |
705208203 |
Spacer |
| 615 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1120a |
250000855 |
Hex. Flange Screw M10 X 35 |
| 1120b |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 1120c |
233201466 |
Flange Elastic Nut M10 |
| 1120d |
207606046 |
Hex. Flange Screw M10 X 6 |
| 1120f |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 1550 |
293150293 |
Pop Rivet 3/16 X ,425 |
