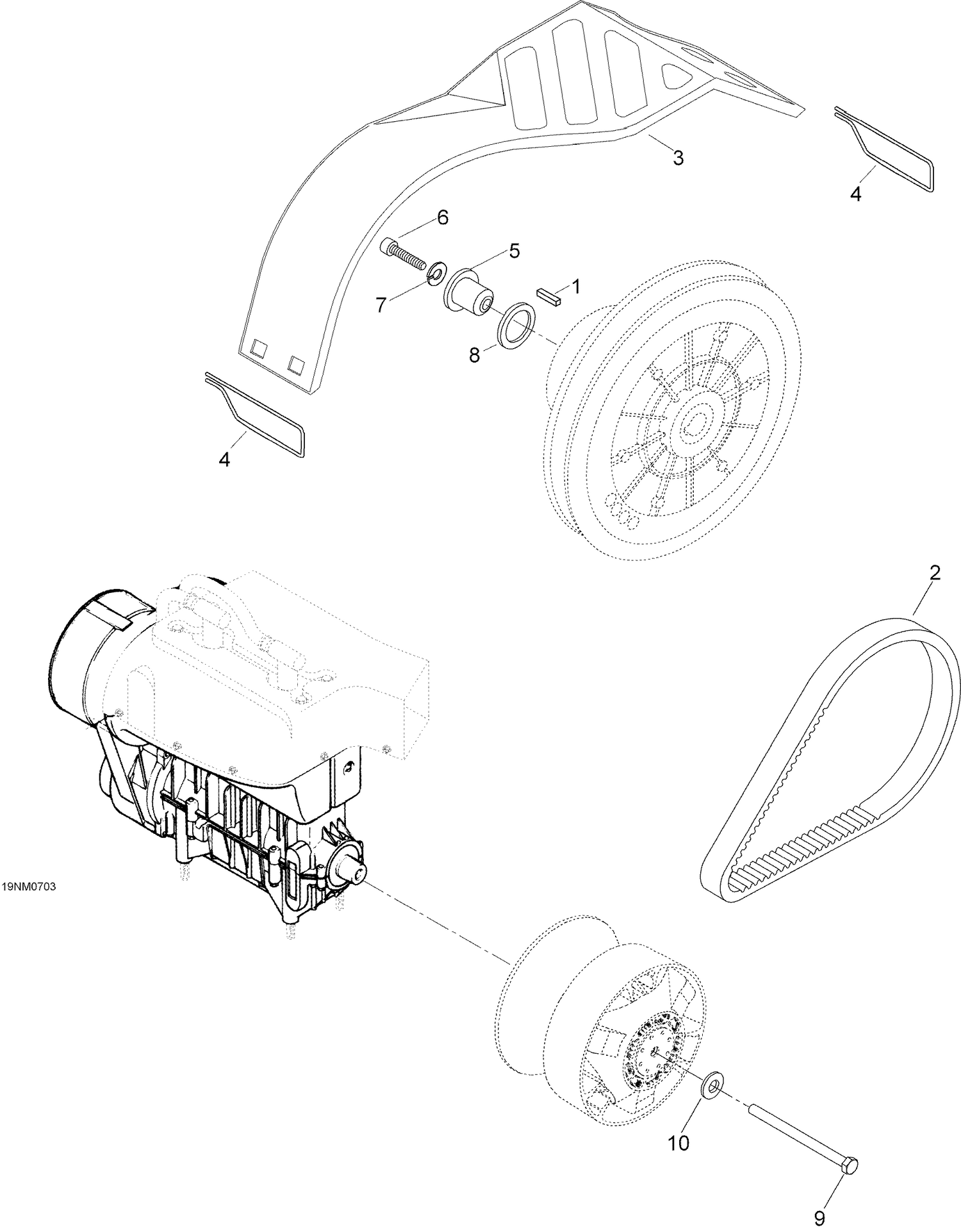

05- Pulley System
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 619690074 | KEY - Call your local BRP dealership This part replaces 418763. |
| 2 | 417300155 | Drive belt |
| 3 | 5142660 | Belt Quard - Call your local BRP dealership |
| 4 | 5442726 | Pin |
| 5 | 5443765 | Sleeve |
| 6 | 40290 | Socket head screw M8 x 55 |
| 7 | 20014 | Lock washer A8 |
| 8 | 3125351 | Shim |
| 9 | 417113800 | BOLT - Call your local BRP dealership |
