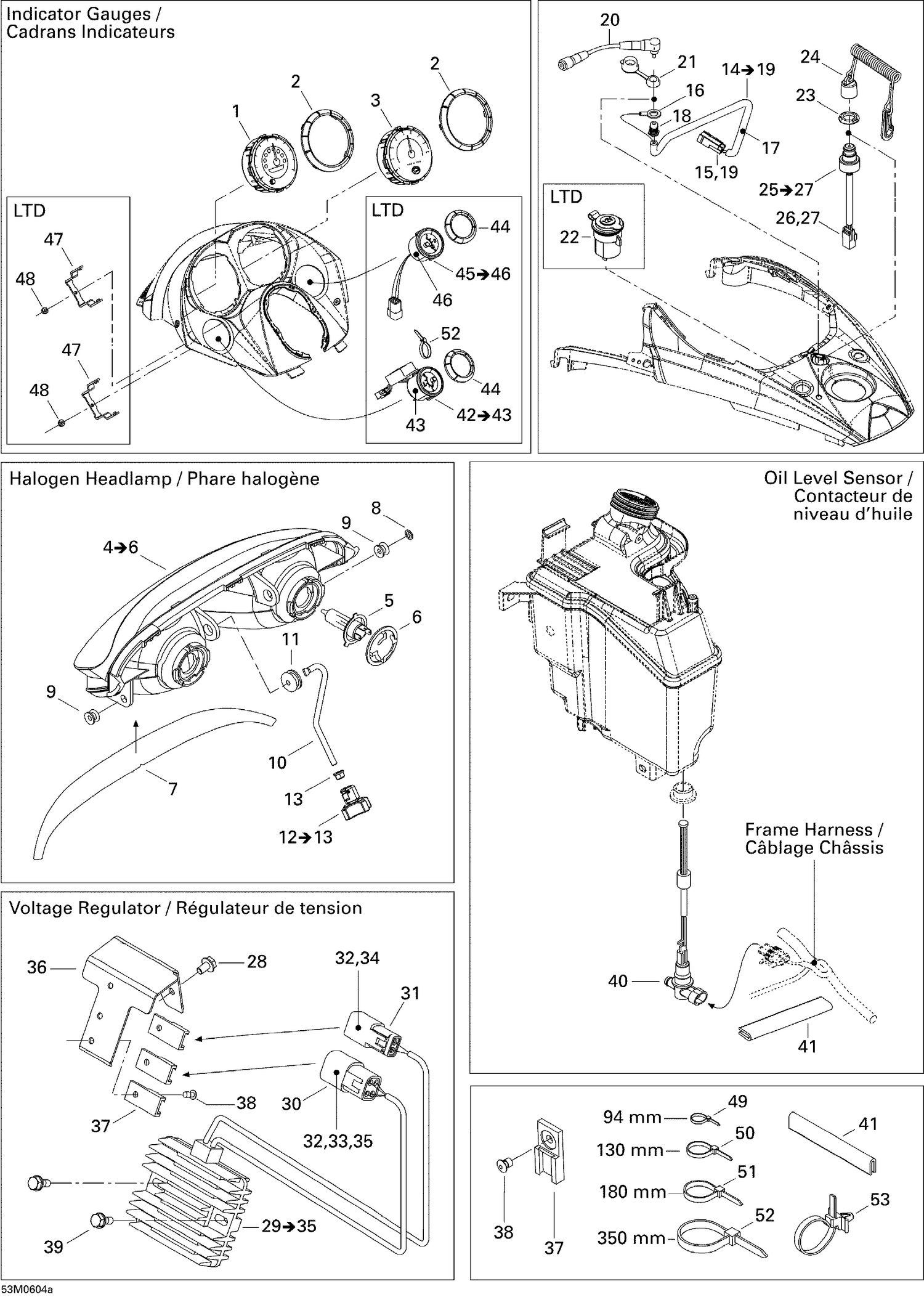

| Ref | Part Number | Description |
|---|
| 1 |
515176302 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
515176303 |
TACHOMETER - Call your local BRP dealership |
| 5 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 6 |
515176385 |
BULB HOLDER - Call your local BRP dealership |
| 7 |
516001328 |
HEADLAMP DECAL - Call your local BRP dealership |
| 8 |
732610072 |
Push Nut |
| 9 |
515175760 |
HEADLAMP BUSHING - Call your local BRP dealership |
| 10 |
515175521 |
ADJUSTER ROD - Call your local BRP dealership |
| 11 |
415100800 |
Grommet - Call your local BRP dealership |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
515175232 |
Male Terminal |
| 16 |
515175172 |
OPEN BARREL - Call your local BRP dealership |
| 17 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 18 |
415096100 |
Visor Plug |
| 19 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 20 |
515175851 |
Extension |
| 21 |
572103300 |
Cap |
| 22 |
XXX |
Not Available As Spare Parts |
| 23 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 24 |
515178284 |
DESS This part replaces 515176446. |
| 26 |
515175232 |
Male Terminal |
| 27 |
515175494 |
Male Housing, 3 Circuits |
| 28 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 30 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 31 |
278001674 |
Mâle Terminal Housing, 2 Circuits |
| 32 |
515175568 |
Male Terminal |
| 33 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 34 |
278001672 |
Male Lock, 2 Circuits |
| 35 |
293000052 |
Sealing Cap |
| 36 |
515176191 |
HOUSING SUPPORT - Call your local BRP dealership |
| 37 |
270000141 |
Clip This part replaces 515175917. |
| 38 |
293150037 |
Avdel Rivet 3/16" |
| 39 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 40 |
515176327 |
OIL LEVEL SENSOR - Call your local BRP dealership |
| 41 |
509000263 |
TRIM - Call your local BRP dealership |
| 42 |
XXX |
Not Available As Spare Parts |
| 43 |
XXX |
Not Available As Spare Parts |
| 44 |
XXX |
Not Available As Spare Parts |
| 45 |
XXX |
Not Available As Spare Parts |
| 46 |
XXX |
Not Available As Spare Parts |
| 47 |
XXX |
Not Available As Spare Parts |
| 48 |
XXX |
Not Available As Spare Parts |
| 49 |
293750001 |
Tie Wrap 94 mm |
| 50 |
293750002 |
Tie Wrap 142 mm |
| 51 |
414115200 |
Tie-Rap 180 mm |
| 52 |
293750008 |
Tie Wrap 368 mm |
