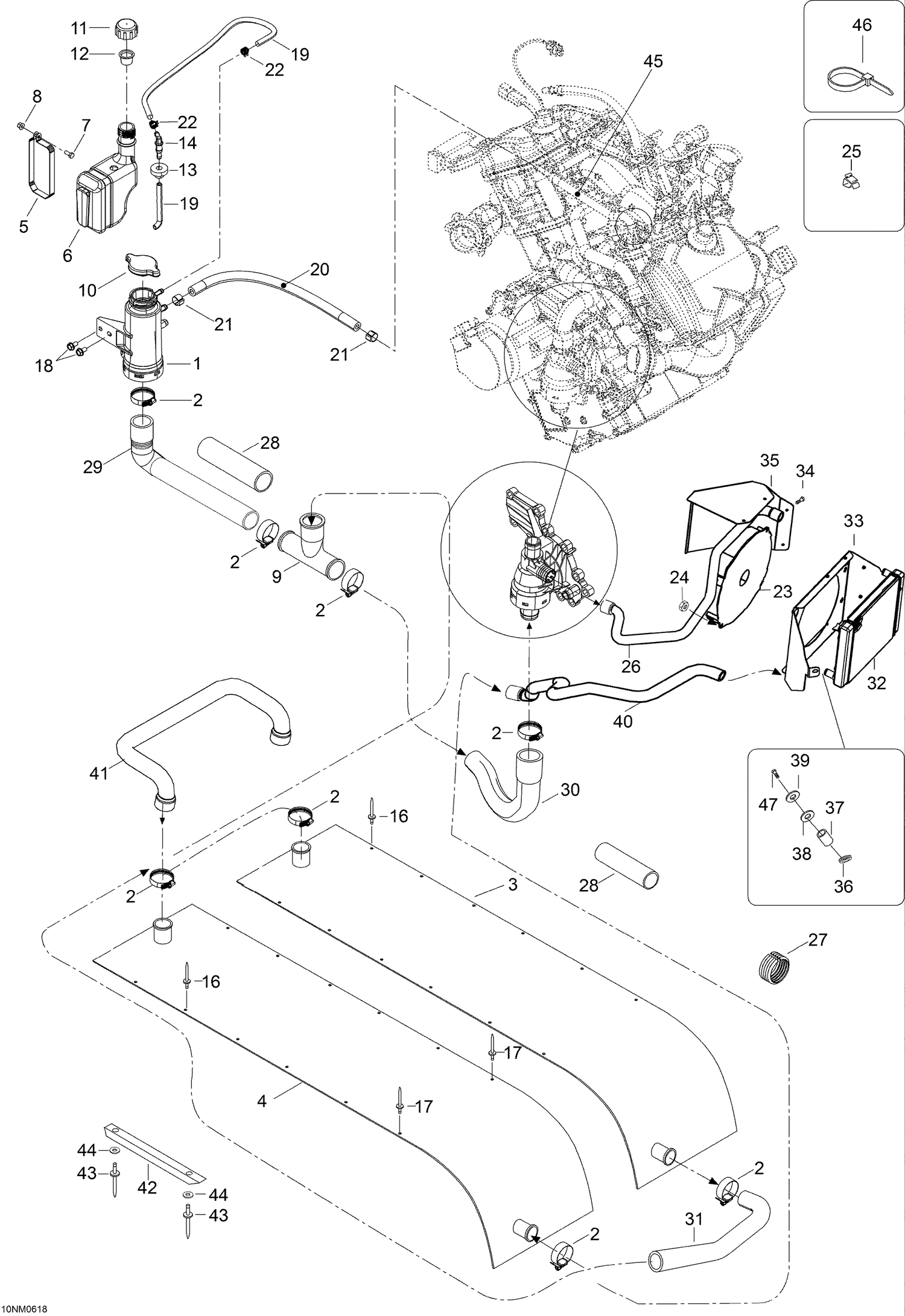

| Ref | Part Number | Description |
|---|
| 1 |
509000176 |
FILLER NECK ASS'Y - Call your local BRP dealership |
| 2 |
27003 |
Clamp |
| 3 |
605151688 |
RH RADIATOR - Call your local BRP dealership |
| 4 |
605152382 |
LH RADIATOR - Call your local BRP dealership |
| 5 |
509000191 |
COOLANT TANK SUPPORT - Call your local BRP dealership |
| 6 |
709200099 |
COOLANT TANK - Call your local BRP dealership |
| 7 |
40366 |
Screw M5 x 16 |
| 8 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 9 |
509000219 |
T-fitting |
| 10 |
509000180 |
Radiator Pressure Cap |
| 11 |
709200009 |
TANK CAP - Call your local BRP dealership |
| 12 |
709200205 |
PROTECTION CAP - Call your local BRP dealership This part replaces 709200034. |
| 13 |
709200285 |
Grommet This part replaces 570135100. |
| 14 |
414580600 |
Fitting |
| 16 |
36108 |
Rivet |
| 17 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 18 |
40327 |
Screw M6 x 12 |
| 19 |
415110000 |
Hose |
| 20 |
509000304 |
RETURN HOSE - Call your local BRP dealership |
| 21 |
293650170 |
Clamp |
| 22 |
414554800 |
Clamp |
| 23 |
42091 |
Axail Motor Fan SPAL - Call your local BRP dealership |
| 24 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 25 |
414227300 |
Clip |
| 26 |
605354194 |
HOSE - Call your local BRP dealership |
| 27 |
27039 |
Tubing |
| 28 |
39062 |
Tubing |
| 29 |
605353906 |
Hose |
| 30 |
605353907 |
HOSE - Call your local BRP dealership |
| 31 |
605353908 |
Hose |
| 32 |
605353238 |
RADIATOR 250 - Call your local BRP dealership |
| 33 |
605253698 |
SUPPORT - Call your local BRP dealership |
| 34 |
210251650 |
Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 35 |
605254458 |
DEFLECTOR PLATE - Call your local BRP dealership |
| 36 |
709000582 |
Grommet This part replaces 293720053. |
| 37 |
605453745 |
Sleeve |
| 38 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 39 |
20052 |
Washer |
| 40 |
605354195 |
WATER HOSE - Call your local BRP dealership |
| 41 |
605354468 |
Hose |
| 42 |
605349264 |
PROTECTOR - Call your local BRP dealership |
| 43 |
36005 |
Rivet |
| 44 |
20002 |
Washer A5,3 |
| 45 |
605627127 |
Tubing |
| 46 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
