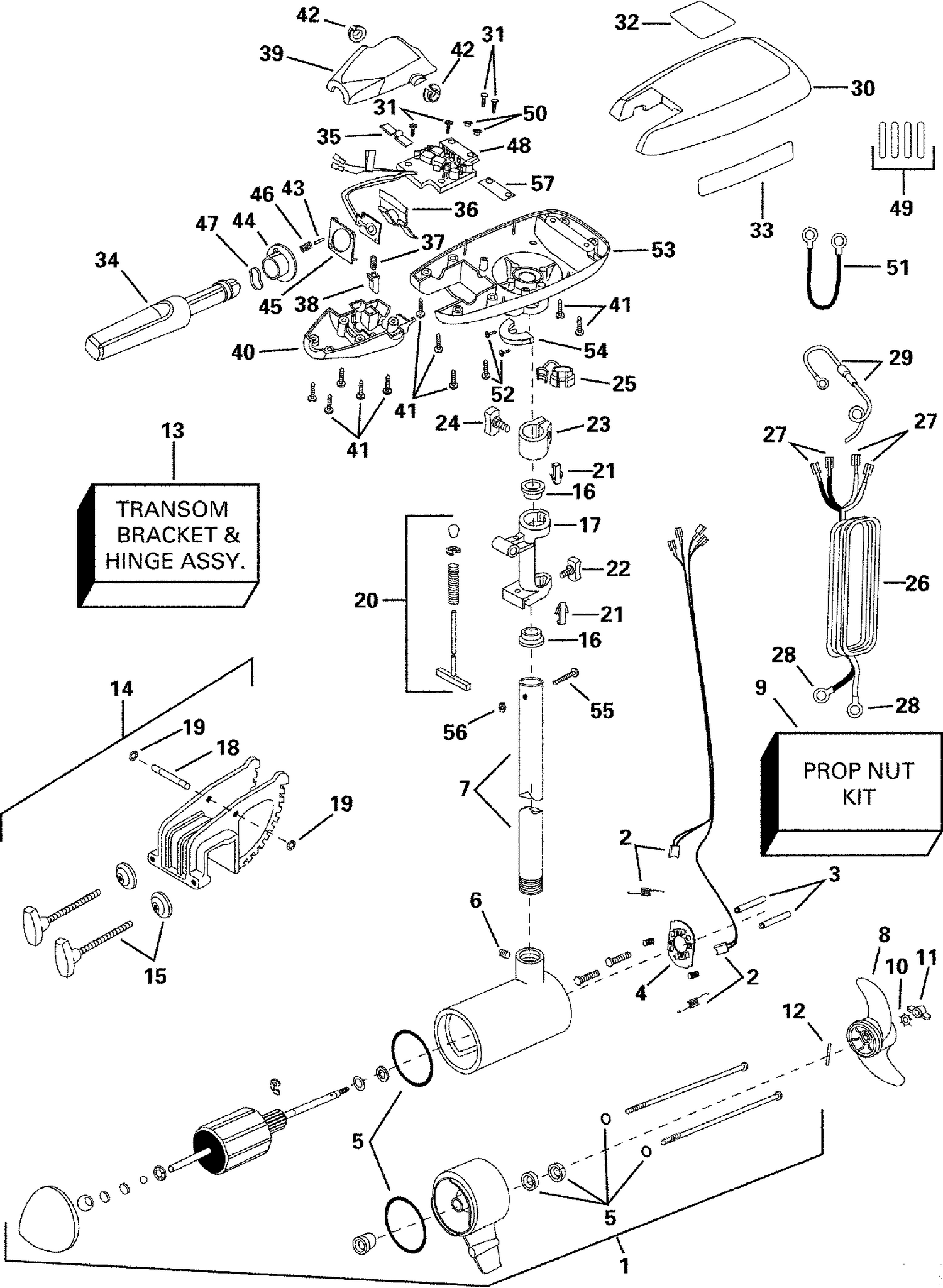

SEAQUEST 70 H
Parts (35)
| Ref | Part Number | Description |
|---|
| 1 |
0128205 |
MOTOR ASSEMBLY |
| 6 |
0128091 |
SCREW, Set |
| 7 |
0128201 |
TUBE, 36 in. |
| 8 |
0772776 |
PROPELLER |
| 9 |
0772778 |
PROP NUT KIT |
| 13 |
0128034 |
BRACKET & HINGE ASSY. |
| 23 |
0128086 |
COLLAR, Depth |
| 25 |
0128208 |
STRAIN RELIEF |
| 26 |
0128178 |
BATTERY CABLE |
| 29 |
0128209 |
GROUND WIRE FUSE |
| 32 |
0128210 |
DECAL, Cover |
| 33 |
0128114 |
DECAL, Side |
| 34 |
0128231 |
HANDLE ASSY. |
| 35 |
0127986 |
SPRING, Detent |
| 36 |
0128182 |
SPRING, Tilt detent |
| 37 |
0128183 |
SPRING, Release |
| 38 |
0128184 |
REALEASE BUTTON |
| 39 |
0128232 |
HANDLE, Upper |
| 40 |
0128186 |
HANDLE, Lower |
| 41 |
0127989 |
SCREW |
| 42 |
0127940 |
BEAING, Handle |
| 43 |
0127983 |
PIN, Actuator |
| 44 |
0127987 |
ACTUATOR , Cam |
| 45 |
0128233 |
ACTUATOR, FWD./REV. |
| 46 |
0127984 |
SPRING, Actuator |
| 47 |
0127985 |
SPRING, Cam |
| 48 |
0128002 |
CONTROL BOARD |
| 49 |
0127994 |
SHRINK TUBE |
| 50 |
0128293 |
WASHER, Insulator |
| 51 |
0128234 |
CONNECTOR CABLE |
| 52 |
0128156 |
SCREW |
| 53 |
0128303 |
CONTROL BOX |
| 54 |
0128070 |
COLLAR, Control box |
| 55 |
0128068 |
SCREW |
| 56 |
0128069 |
NUT |
