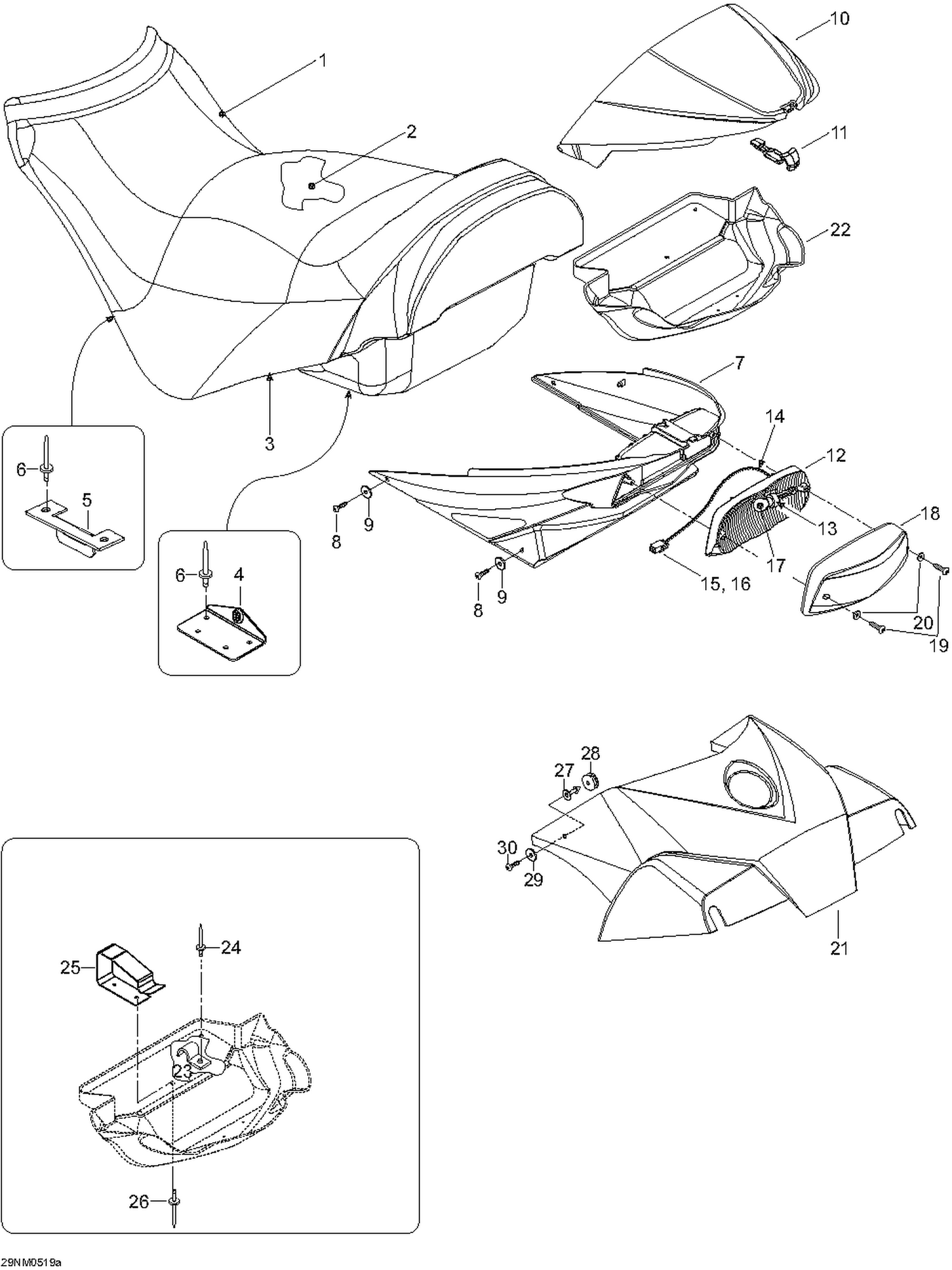

09- Seat
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605250096 | Cover |
| 2 | 605250094 | Foam |
| 3 | 605250095 | Seat base |
| 4 | 605352337 | Bracket |
| 5 | 605452616 | Bracket |
| 6 | 36037 | Rivet |
| 7 | 605352809 | Trunk, Radical Red |
| 8 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 9 | 250200025 | Washer M5 |
| 10 | 510004311 | Cover, black |
| 11 | 510003917 | Latch |
| 12 | 510004442 | REFLECTOR - Call your local BRP dealership |
| 13 | 414979411 | Rubber damper |
| 14 | 515175940 | Fitting |
| 15 | 605642628 | CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 16 | 42271 | Male terminal housing |
| 17 | 520000758 | Bulb This part replaces 410504000. |
| 18 | 511000315 | Lens |
| 19 | 209632580 | PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 20 | 414516400 | Washer - Call your local BRP dealership |
| 21 | 605351344 | Cover, tunnel |
| 22 | 510004021 | BOX LINER - Call your local BRP dealership |
| 23 | 605452665 | Bracket |
| 24 | 36036 | Rivet |
| 25 | 605352688 | Spring plate |
| 26 | 36005 | Rivet |
| 27 | 517245800 | Knob |
| 28 | 517307161 | Grommet This part replaces 517302841. |
| 29 | 250200025 | Washer M5 |
