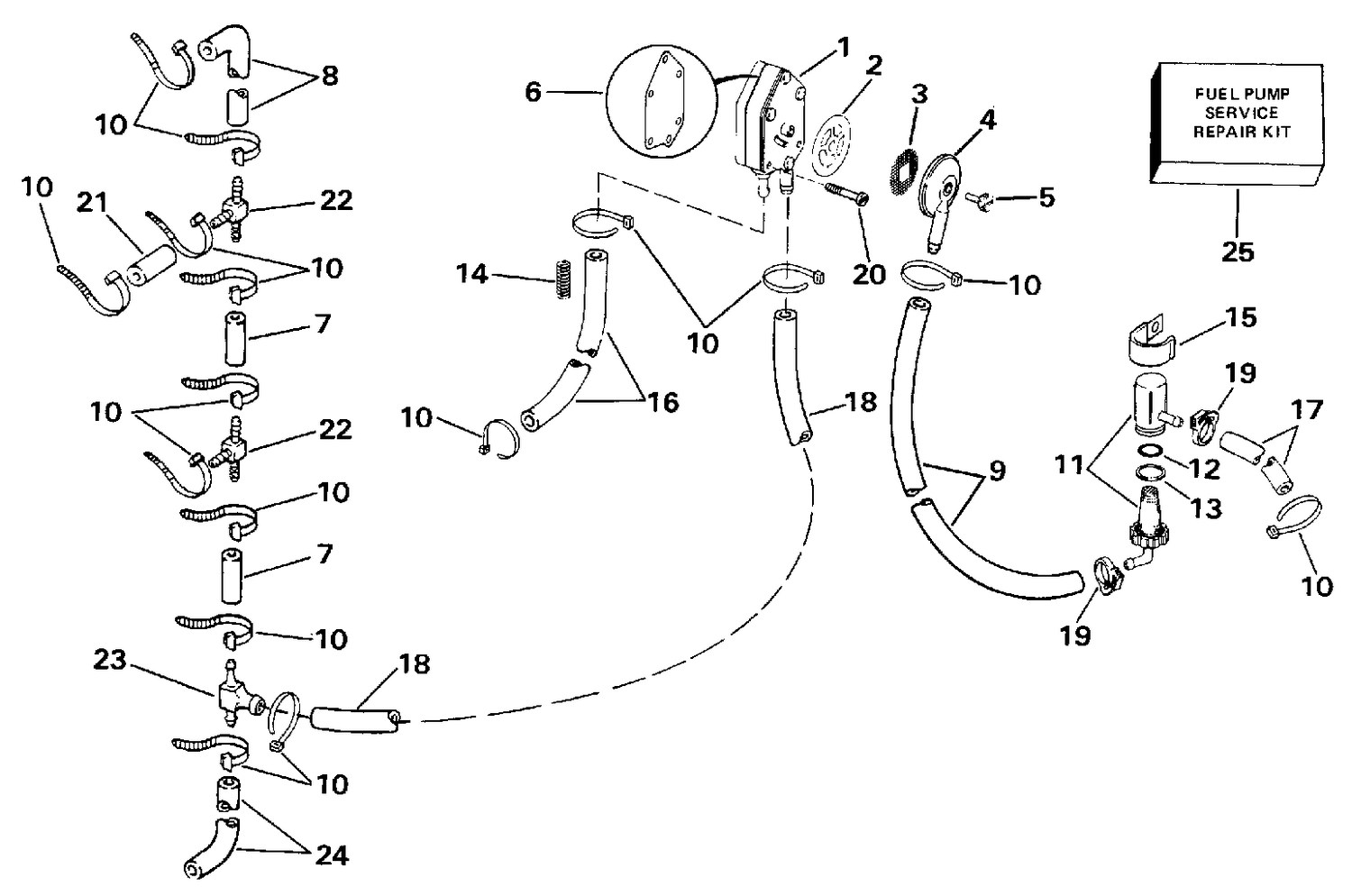

| Ref | Part Number | Description |
|---|
| 1 |
0398399 |
FUEL PUMP ASSEMBLY |
| 2 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0332694. |
| 4 |
0330092 |
CAP Filter |
| 5 |
0330110 |
SCREW, Cap |
| 7 |
HOSE, |
Tee to tee 1 in. (25mm) |
| 8 |
HOSE, |
Tee to upper carb. 5 in. (130mm) |
| 9 |
0333380 |
HOSE, Connector to pump |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
0397715 |
FILTER, Fuel |
| 14 |
0315942 |
SPRING |
| 15 |
0330131 |
CLAMP, Fuel filter |
| 16 |
HOSE, |
Pump to crankcase, 5 1/4 in. (133mm) |
| 17 |
HOSE, |
Connector to filter, 11 1/2 in. (292mm) |
| 18 |
0332843 |
HOSE, Pump to tee |
| 20 |
0328717 |
NUT, Ground lead |
| 21 |
HOSE, |
Tee to middle carb. 1 9/16 in. (40mm) |
| 23 |
0326031 |
TEE, Carburetor hose |
| 24 |
HOSE, |
Tee to lower carb. 3 in. (80mm) |
