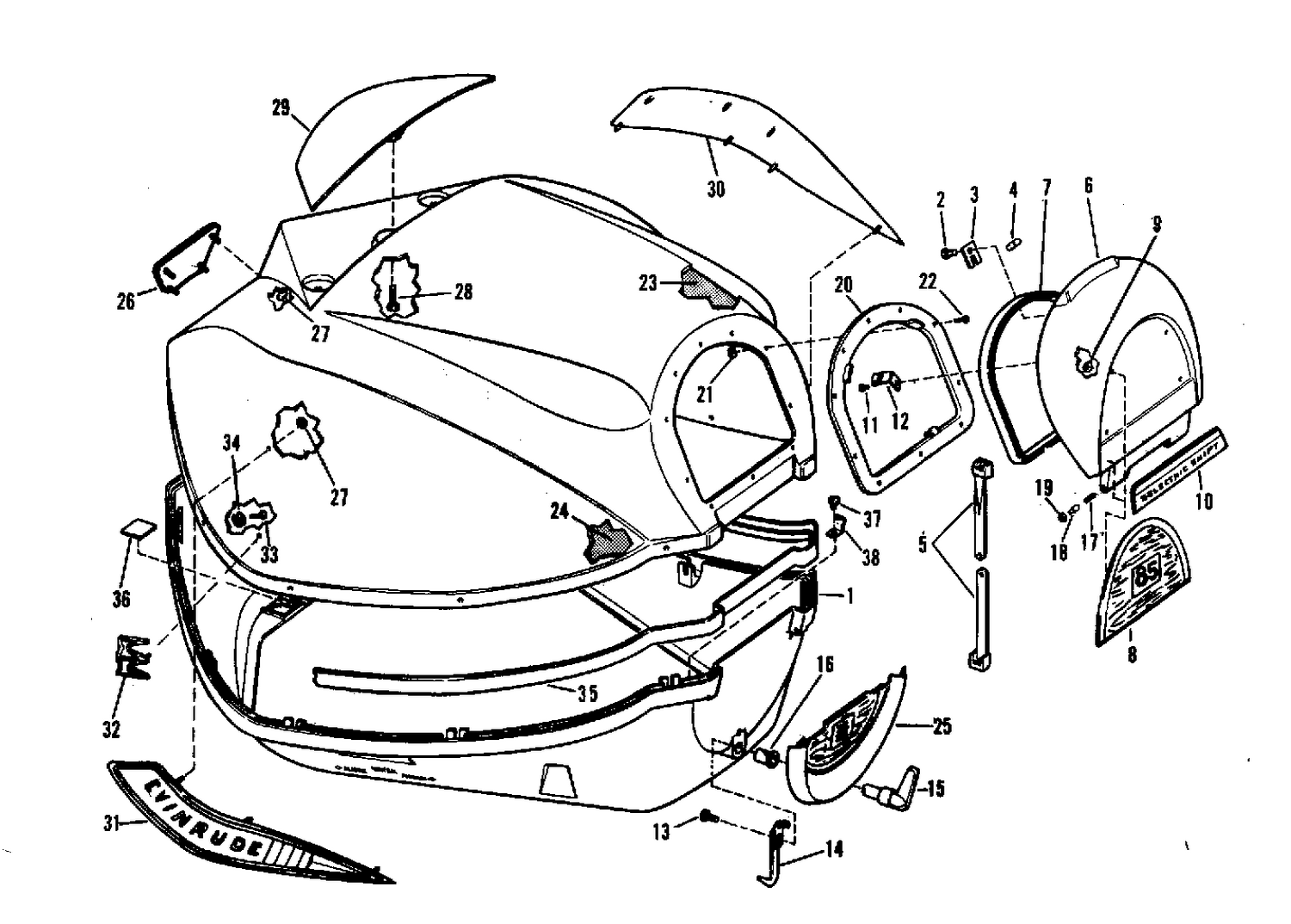

MOTOR COVER GROUP ELECTRIC SHIFT
Parts (34)
| Ref | Part Number | Description |
|---|
| 1 |
0205604 |
COVER, Motor, lower half |
| 2 |
0307920 |
SCREW |
| 3 |
0307690 |
RETAINER, Pivot pin |
| 4 |
0204878 |
PIN, Slide pivot |
| 5 |
0204916 |
SLIDE, Door |
| 6 |
0279022 |
FRONT DOOR ASSEMBLY |
| 7 |
0204906 |
SEAL, Door |
| 8 |
0206055 |
PANEL,Front door |
| 10 |
0206190 |
PLATE,Front door |
| 13 |
0303311 |
SCR,Clamp,eng cable |
| 14 |
0378322 |
LINK & HOOK |
| 15 |
0205530 |
HANDLE, Front latch |
| 16 |
0553769 |
BUSHING |
| 17 |
0204294 |
SPRING, Hinge pin |
| 18 |
0204292 |
HINGE PIN, Front door |
| 19 |
0204293 |
WASHER, Hinge pin |
| 20 |
0278413 |
DOOR FRAME ASSEMBLY |
| 23 |
0204920 |
BLANKET,Sound,top |
| 24 |
0204921 |
BLANKET,Sound,side |
| 25 |
0205844 |
PANEL,Lower front |
| 26 |
0206062 |
APPLIQUE,Rear |
| 28 |
0204936 |
SCREW, Tilt handle |
| 29 |
0205029 |
HANDLE, Tilt |
| 30 |
0206069 |
APPLIQUE,Port |
| 31 |
0206070 |
APPLIQUE,Starboard |
| 32 |
0205821 |
EMBLEM,Port & starboard |
| 33 |
0204904 |
SCREW, Cover fastener |
| 34 |
0204903 |
FASTENER COVER SCREWS |
| 35 |
0205840 |
SEAL,Cover halves |
| 36 |
0307925 |
PAD |
| 37 |
0307907 |
SCREW |
| 38 |
0307908 |
SPRING |
| 0278943 |
0278943 |
MOTOR COVER ASSEMBLY |
| 0279024 |
0279024 |
DECAL SET |
