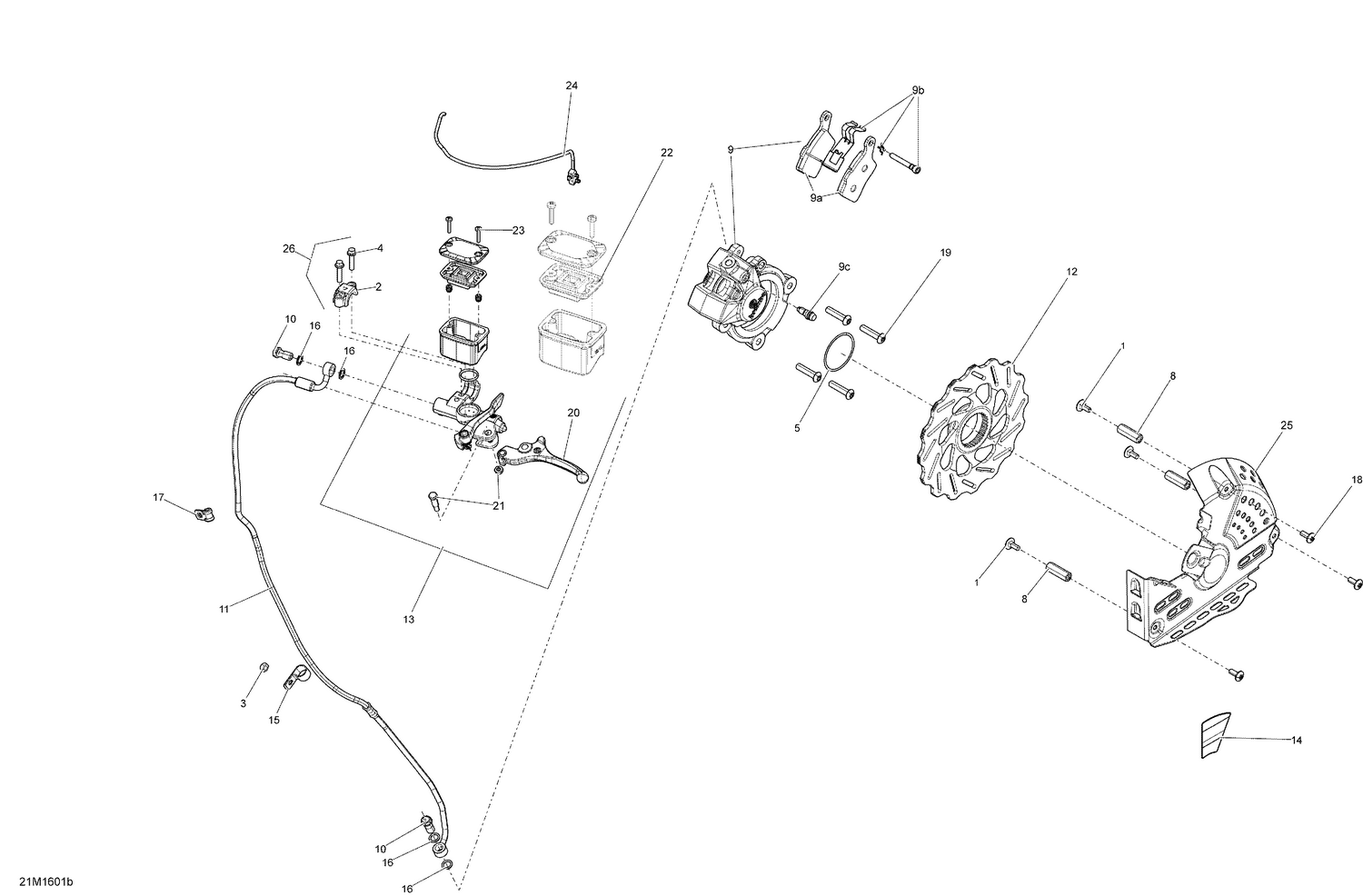

06- Brakes - Package Sport
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207761644 | Carriage Bolt M6 X 1.0 X 16 |
| 2 | 719000049 | Clamps |
| 3 | 232561414 | Elastic Stop Nut M6 |
| 4 | 250000447 | Hex. Flange Screw M6 X 25 |
| 5 | 293300134 | O-Ring |
| 8 | 507032497 | Threaded Tube |
| 9a | 507032473 | Brake Pads Kit |
| 9b | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 9c | 507032475 | Bleeder |
| 10 | 507032551 | Banjo Bolt |
| 11 | 507032552 | HOSE - Call your local BRP dealership |
| 12 | 507032554 | Disk |
| 13 | 507032596 | Master Cylinder Ass. This part replaces 507032585. |
| 14 | 516005525 | Warning Decal |
| 15 | 518321570 | Open Clamp |
| 16 | 705601628 | Copper Washer This part replaces 705600310. |
| 17 | 293650256 | Clamp This part replaces 705600459. |
| 18 | 250000717 | Torx Head Screw M6 X 16 |
| 19 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
| 20 | 507032476 | Lever With Parking Lock |
| 21 | 415030000 | Pin Ass'y |
| 22 | 507032478 | Master Cylinder Reservoir Ass'y |
| 23 | 415129356 | Screw M4 X 20 |
| 24 | 507032597 | Microswitch This part replaces 507032592. |
| 25 | 507032587 | Black Disk Protector |
