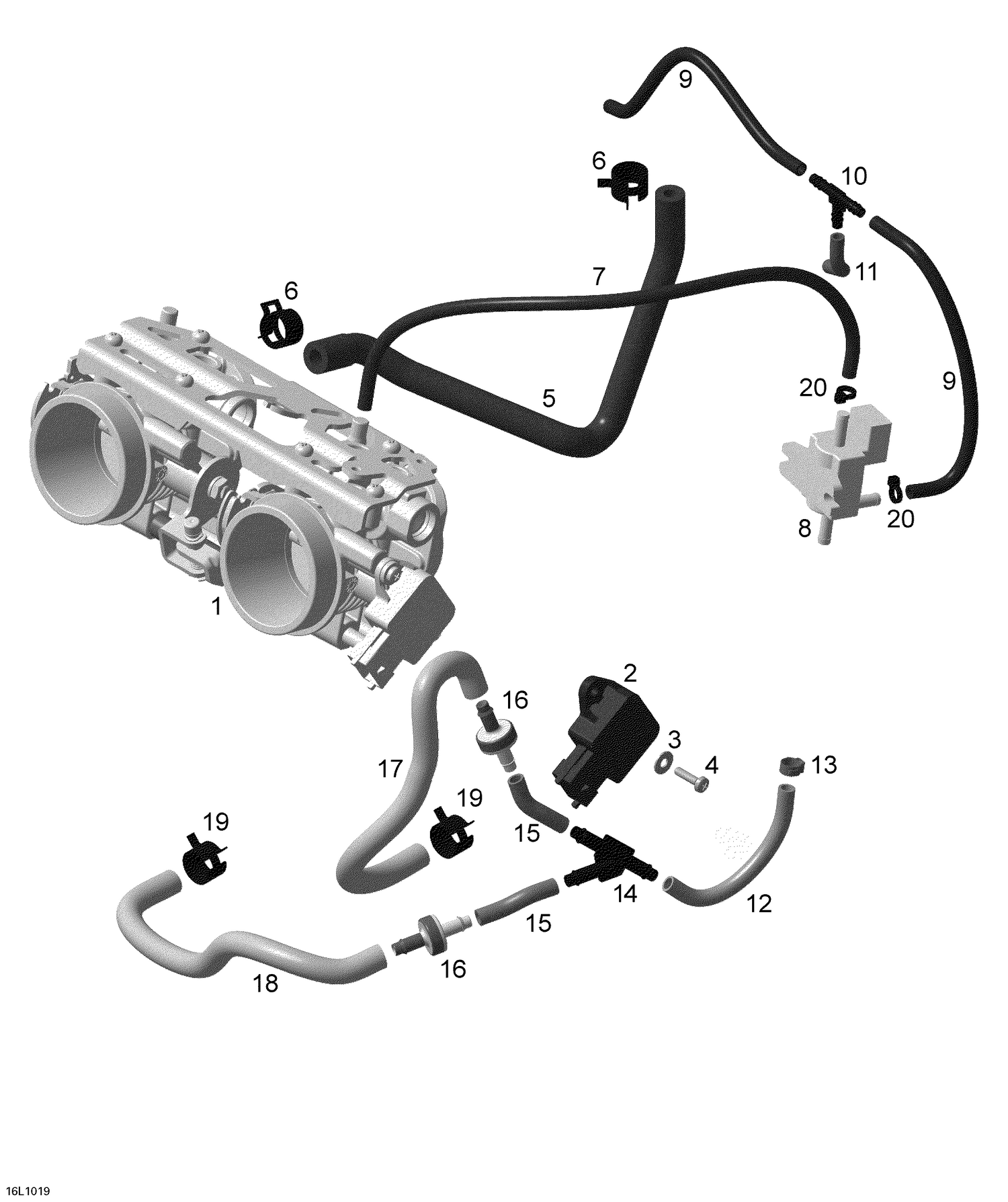

| Ref | Part Number | Description |
|---|
| 1 |
420892132 |
THROTTLE BODY - Call your local BRP dealership |
| 2 |
420866120 |
Position Sensor This part replaces 270000251. |
| 3 |
234041600 |
Flat Washer 4 mm, Stainless |
| 4 |
208641660 |
Phillips Screw M4 X 16 |
| 5 |
420460860 |
HOSE - Call your local BRP dealership |
| 6 |
420853511 |
Clamp |
| 7 |
420660577 |
High Pressure Air Hose, 380 mm |
| 8 |
270600005 |
Solenoid Valve |
| 9 |
420660571 |
High Pressure Air Hose, 180 mm |
| 10 |
293710068 |
T-Fitting |
| 11 |
420660572 |
HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership |
| 12 |
420460852 |
HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership |
| 13 |
420853658 |
Gear Clamp |
| 14 |
293710059 |
Y-Fitting This part replaces 420460635. |
| 15 |
420460851 |
HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership |
| 16 |
420660543 |
Check Valve |
| 17 |
420460782 |
MOLDED HOSE - Call your local BRP dealership |
| 18 |
420460786 |
MOLDED HOSE - Call your local BRP dealership |
| 19 |
420853511 |
Clamp |
