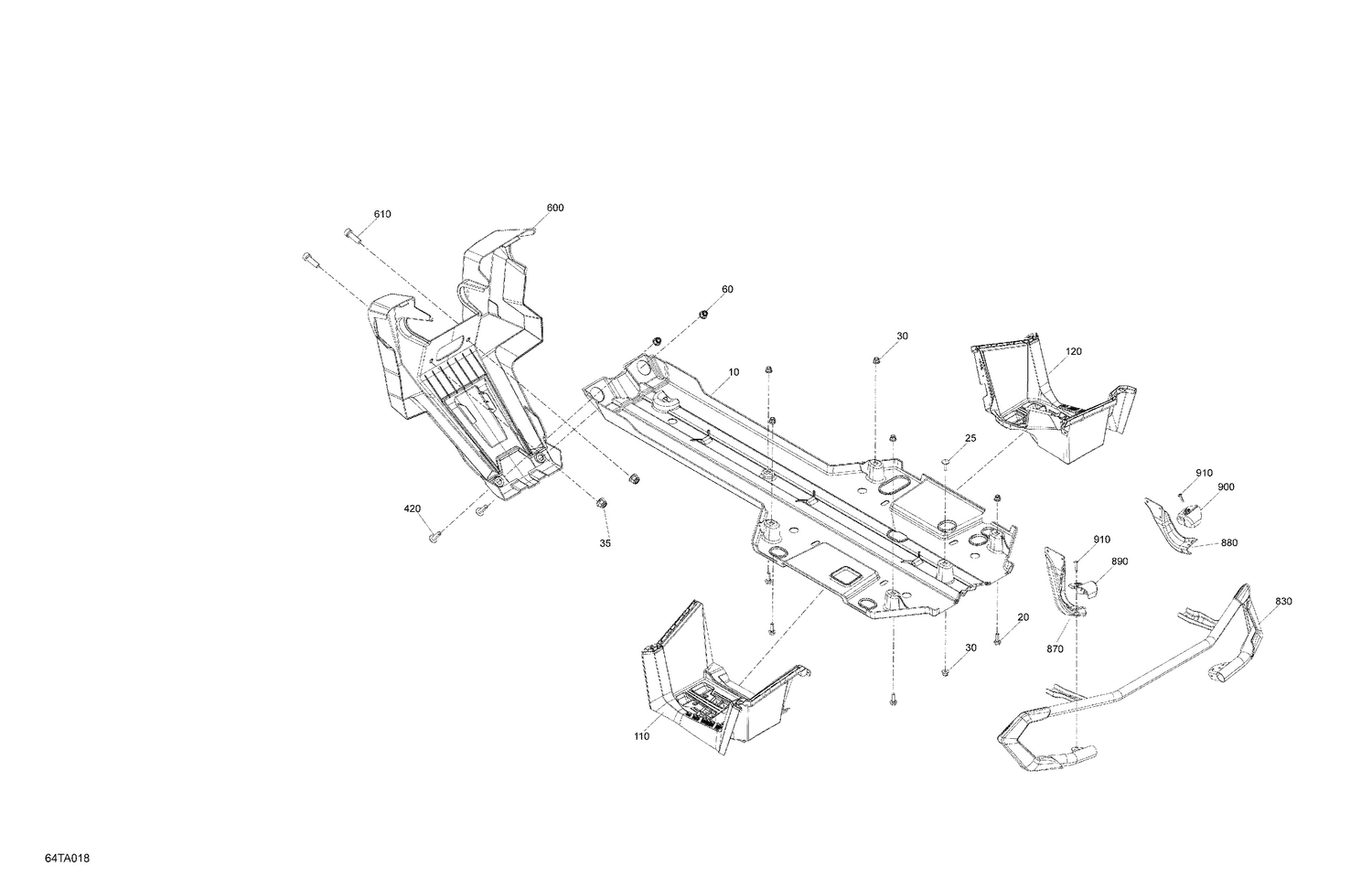

07- Body - Skid Plate
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715002374 | Protective Plate Kit |
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 25 | 207762044 | Carriage Bolt M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233201434 | Hex. Flange Elastic Nut M10 |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 110 | 705009810 | LH Footrest |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 600 | 705006299 | Front Guard Plate |
| 610 | 205003044 | Socket Screw M10 x 30 |
| 870 | 705008164 | LH Rear Bracket |
| 880 | 705008165 | RH Rear Bracket |
| 890 | 705005094 | LH Bracket |
| 900 | 705005095 | RH Bracket |
