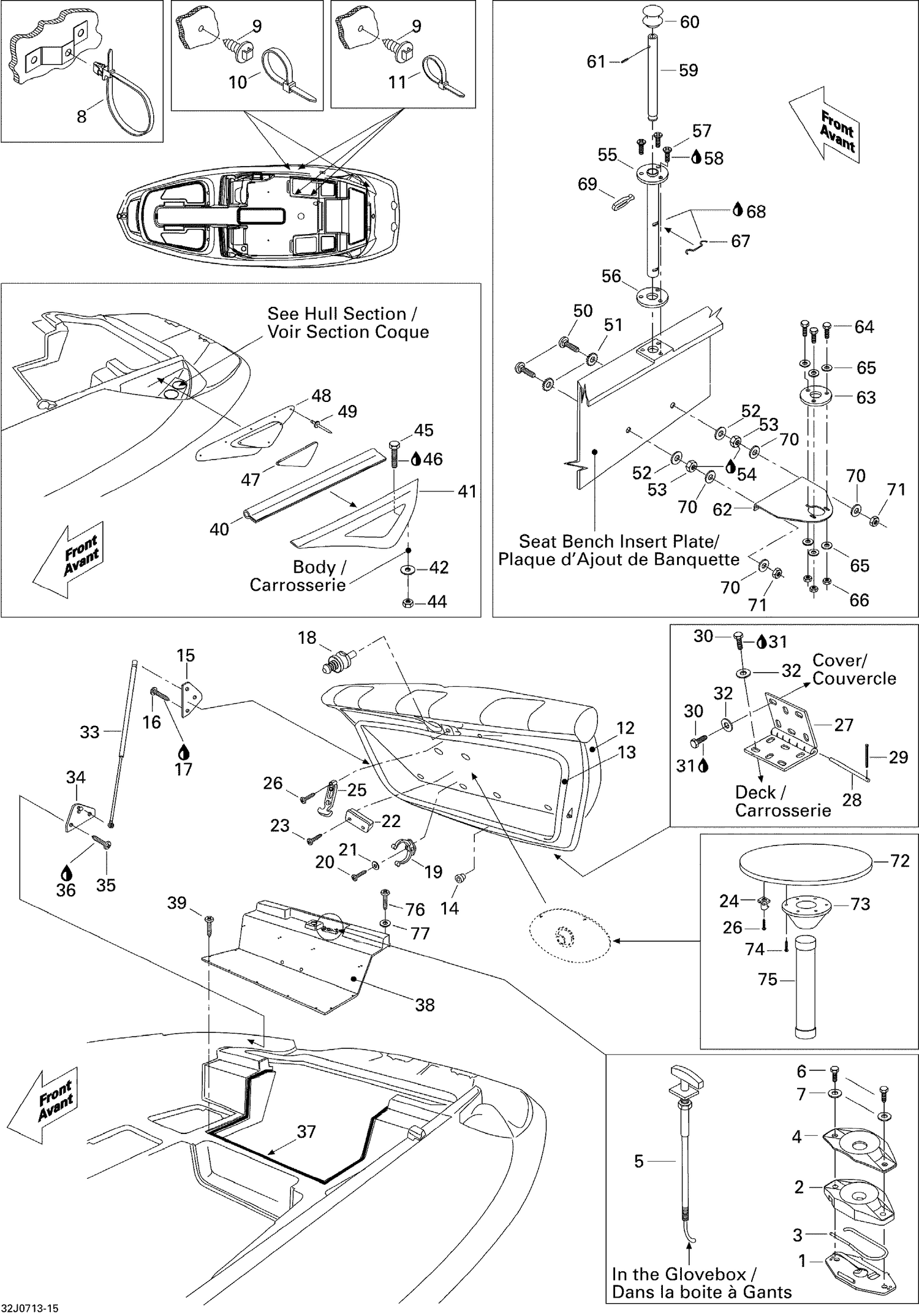

| Ref | Part Number | Description |
|---|
| 1 |
204070036 |
LATCH COVER - Call your local BRP dealership |
| 2 |
204070037 |
LATCH BASE - Call your local BRP dealership |
| 3 |
204070038 |
SPRING - Call your local BRP dealership |
| 4 |
204070952 |
LATCH PROTECTOR - Call your local BRP dealership |
| 5 |
204072793 |
LATCH CABLE - Call your local BRP dealership |
| 6 |
207163560 |
Hex. Screw M6 X 35 |
| 7 |
234061600 |
Stainless Flat Washer M6 |
| 8 |
204130098 |
TIE RAP WITH DART - Call your local BRP dealership |
| 9 |
293730040 |
Mount Dart |
| 10 |
293750008 |
Tie Wrap 368 mm |
| 11 |
414115200 |
Tie-Rap 180 mm |
| 12 |
204072663 |
Engine Cover |
| 13 |
204130083 |
D-SEAL RUBBER - Call your local BRP dealership |
| 14 |
293720017 |
GROMMET - Call your local BRP dealership |
| 15 |
204071673 |
Shock Bracket |
| 16 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 17 |
293800060 |
Loctite 243, 10 ml |
| 18 |
204130146 |
Latch Stud |
| 19 |
204070342 |
POLE CLIP - Call your local BRP dealership |
| 20 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 21 |
234040600 |
Flat Washer 4 mm |
| 22 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 23 |
204100120 |
TAPPING PAN SCREW M14 X 2 - Call your local BRP dealership |
| 24 |
204071376 |
STRAP KEEPER - Call your local BRP dealership |
| 25 |
204071291 |
DOOR STRAP - Call your local BRP dealership |
| 26 |
204100081 |
SCREW #8 X 1-1/4? - Call your local BRP dealership |
| 27 |
204070127 |
HINGE ASS'Y - Call your local BRP dealership |
| 28 |
204070204 |
HINGE ROD - Call your local BRP dealership |
| 29 |
204070205 |
Cotter Pin M2.5 X 12 |
| 30 |
207162560 |
Hex. Screw M6 X 25 |
| 31 |
293800060 |
Loctite 243, 10 ml |
| 32 |
234061600 |
Stainless Flat Washer M6 |
| 33 |
204072798 |
GAS SHOCK - Call your local BRP dealership |
| 34 |
204071673 |
Shock Bracket |
| 35 |
207152560 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 36 |
293800060 |
Loctite 243, 10 ml |
| 37 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 38 |
204072685 |
Seat Bench Insert Plate |
| 39 |
204100200 |
Phillips Head Screw 1/4 - 20 X 1-1/2" |
| 40 |
204073002 |
J-Trim, Blue |
| 41 |
204072491 |
Vent Cover, Port Side, Blue |
| 41 |
204072493 |
VENT COVER, STARBOARD, BLUE - Call your local BRP dealership |
| 42 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 44 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 45 |
207163560 |
Hex. Screw M6 X 35 |
| 46 |
293800060 |
Loctite 243, 10 ml |
| 47 |
204073029 |
VENT INSERT, PORT SIDE - Call your local BRP dealership |
| 47 |
204073035 |
VENT INSERT, STARBOARD - Call your local BRP dealership |
| 48 |
204072801 |
VENT BASE, PORT SIDE - Call your local BRP dealership |
| 48 |
204072802 |
VENT BASE, STARBOARD - Call your local BRP dealership |
| 49 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 50 |
204000130 |
Elevator Bolt |
| 51 |
234381608 |
TOOTHED LOCK WASHER - Call your local BRP dealership |
| 52 |
234062600 |
Flat Washer M6, Stainless |
| 53 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 54 |
293800005 |
Loctite 271, 10 ml |
| 55 |
204072904 |
FIX TUBE - Call your local BRP dealership |
| 56 |
293830045 |
RUBBER WASHER - Call your local BRP dealership |
| 57 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 58 |
293800060 |
Loctite 243, 10 ml |
| 59 |
204072616 |
SKI SHAFT - Call your local BRP dealership |
| 60 |
293000004 |
SKI SHAFT CAP - Call your local BRP dealership |
| 61 |
211400004 |
ROLLED PIN M3 X 30 - Call your local BRP dealership |
| 62 |
204072906 |
FIXATION PLATE - Call your local BRP dealership |
| 63 |
291001060 |
RETAINER WASHER - Call your local BRP dealership |
| 64 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 65 |
234062600 |
Flat Washer M6, Stainless |
| 66 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 67 |
291001205 |
SPRING - Call your local BRP dealership |
| 68 |
293550010 |
Synthetic Grease, 400 G |
| 69 |
570023800 |
Windshield Latch |
| 70 |
234062600 |
Flat Washer M6, Stainless |
| 71 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 72 |
204072391 |
COCKPIT TABLE - Call your local BRP dealership |
| 73 |
204071315 |
TABLE MOUNT - Call your local BRP dealership |
| 74 |
209951960 |
TAPPING SCREW M5 X 19 - Call your local BRP dealership |
| 75 |
204070634 |
TABLE POST, LARGE - Call your local BRP dealership |
| 76 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
