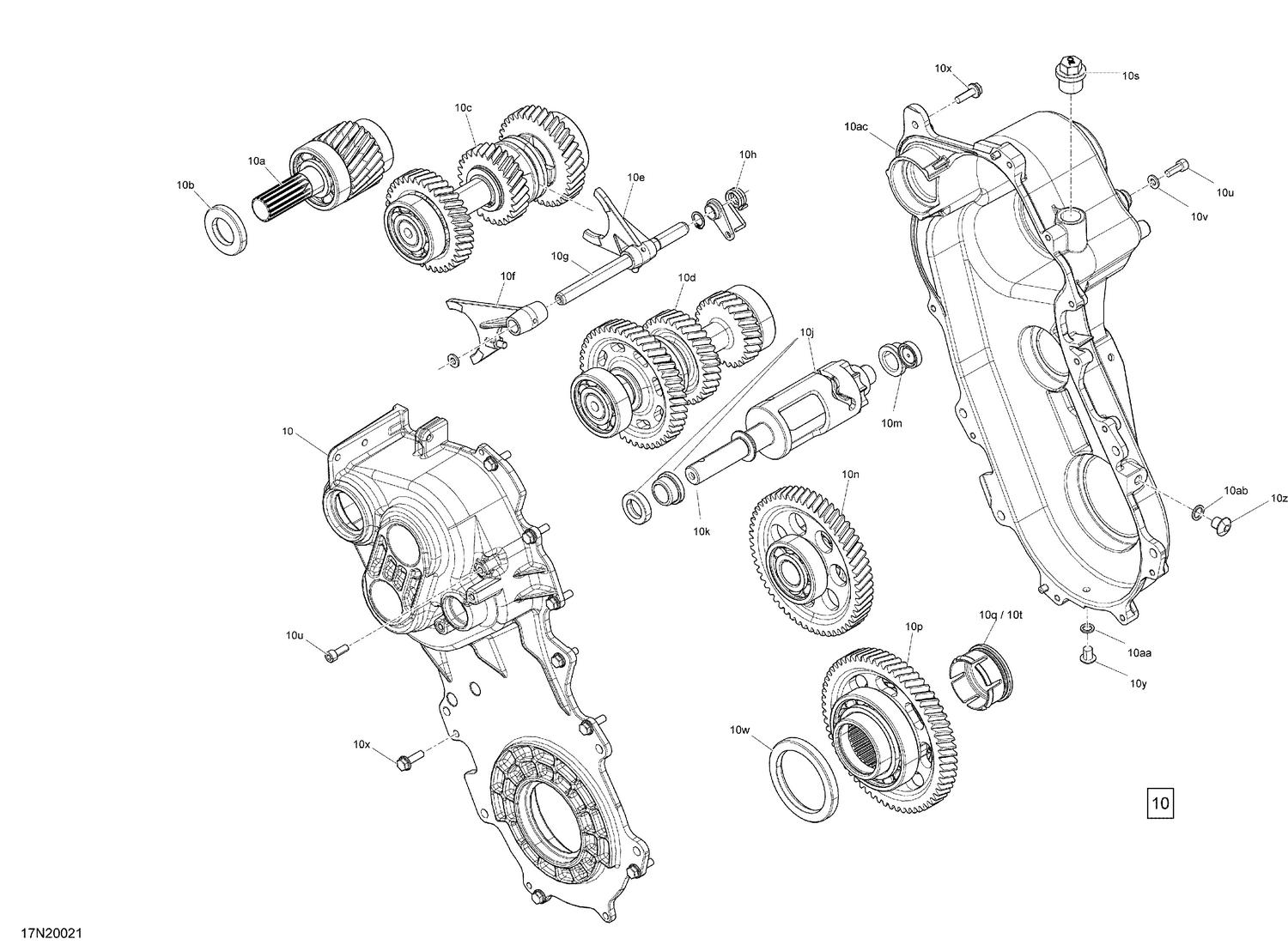

05- Drive - System - Transmission - Fast Ratio
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 615580812 | Gasket-ring - Call your local BRP dealership |
| 10ab | 619230047 | Seal Ring |
| 10b | 619230010 | Oil seal |
| 10e | 619230055 | Fork, Forwards |
| 10f | 619230015 | Fork, reverse |
| 10g | 619230016 | Shaft |
| 10h | 619230017 | Spring |
| 10j | 619230056 | Shifting Drum |
| 10k | 619230079 | O-Ring |
| 10m | 619230021 | Locking lever |
| 10n | 619230022 | Middle gear |
| 10p | 619230023 | Lower gear |
| 10q | 619230070 | Magnetic Plug |
| 10s | 619230027 | Oil Plug |
| 10t | 619230069 | O-Ring |
| 10u | 619230029 | Screw - Call your local BRP dealership |
| 10v | 619230030 | Washer |
| 10w | 619230031 | Oil seal |
| 10x | 619230076 | FLANGED SCREW 10.9 DTM M6X20 GRIP - Call your local BRP dealership |
| 10y | 619230037 | Allen Screw M8 x 10 |
| 10z | 619230038 | Allen Screw M10 x 16 |
