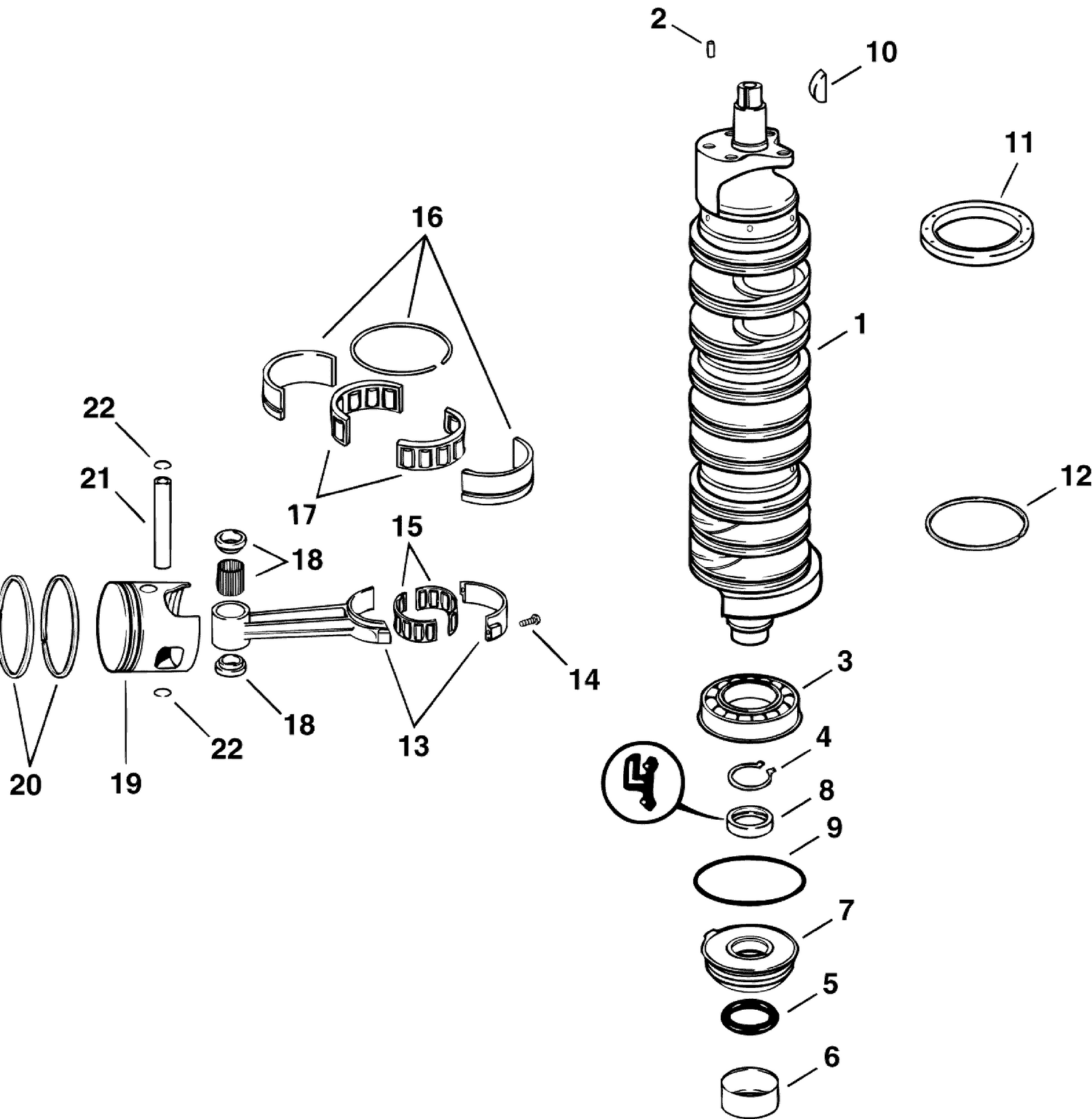

| Ref | Part Number | Description |
|---|
| 1 |
0438930 |
CRANKSHAFT Assy |
| 4 |
0326047 |
Retaining Ring |
| 6 |
0337030 |
Sleeve, Crankshaft |
| 7 |
0340559 |
CORPS, joint, palier inférieur |
| 12 |
0319244 |
JOINT ANNULAIRE |
| 13 |
5006383 |
CONNECTING ROD |
| 15 |
0387787 |
BEARING Assembly, Connecting rod |
| 16 |
0335825 |
GARNITURE FENDUE, coussinet |
| 17 |
5007190 |
BEARING Assembly, Center main This part replaces 0387041. |
| 18 |
0395627 |
BEARING & RETAINER |
| 19 |
5006687 |
PISTON, standard, bâbord |
| 19 |
5006688 |
PISTON, standard, tribord |
| 19 |
5006708 |
PISTON, 0.020 in. O.S. , Port |
| 19 |
5006714 |
PISTON, 0.030 in. O.S. , Port |
| 19 |
5006715 |
PISTON, 0.020 in. O.S. , Stbd |
| 19 |
5006716 |
PISTON, 0.030 in. O.S. , Stbd |
| 21 |
0327861 |
Wrist Pin |
