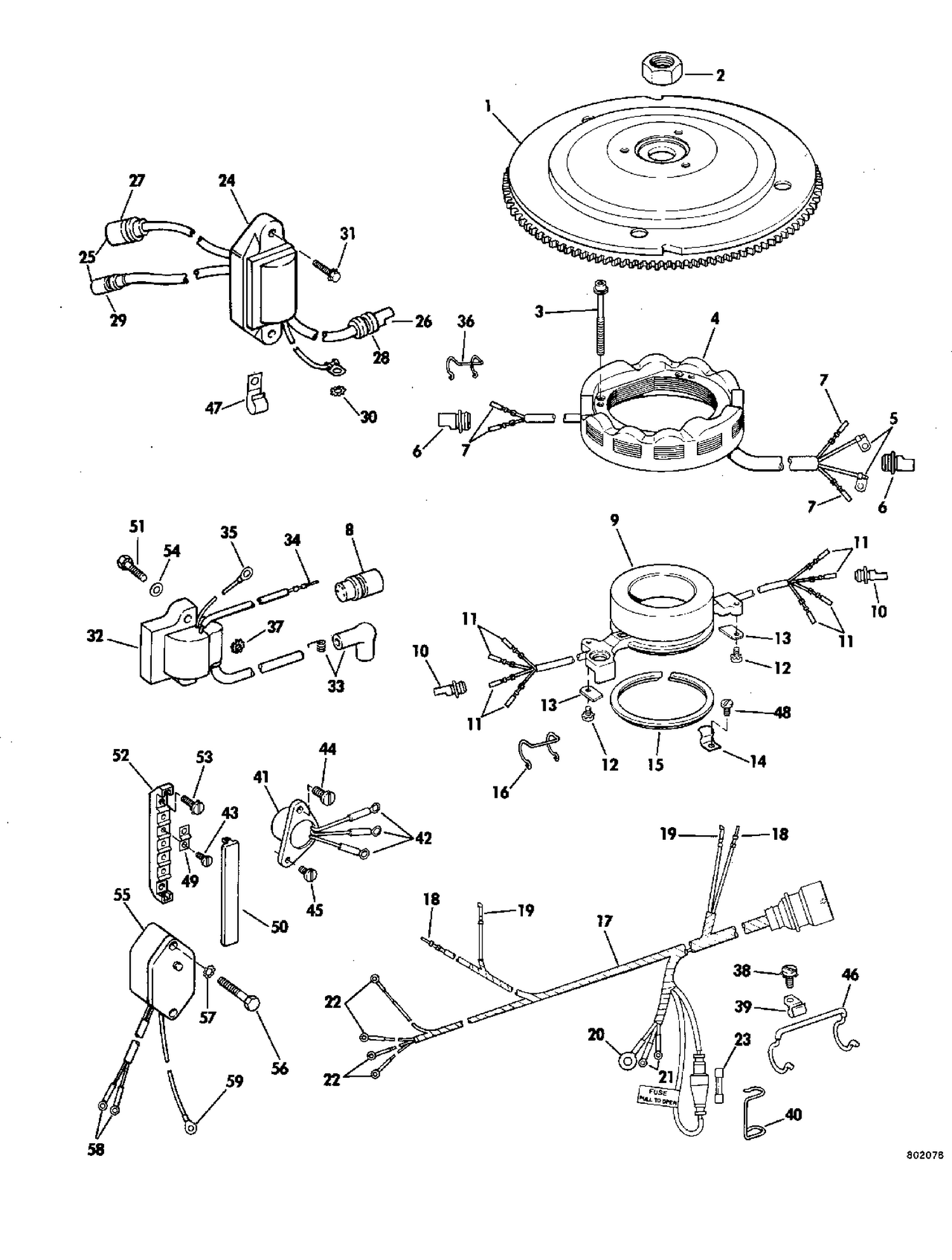

| Ref | Part Number | Description |
|---|
| 1 |
0582403 |
FLYWHEEL ASSY This part replaces 0582352. |
| 2 |
0323599 |
LOCKNUT This part replaces 0316828. |
| 4 |
0581987 |
STATOR ASSY., 10 amp |
| 6 |
0511989 |
CONNECTOR This part replaces 0511617. |
| 8 |
0511449 |
COMMECTOR, Coil to power pack |
| 9 |
0532356 |
TIMER BASE & SENSOR ASSY. |
| 9 |
0581985 |
TIME BASE & SENSOR ASSY. |
| 9 |
0582122 |
TIMER BASE & SENSOR ASSY. |
| 13 |
0511387 |
CLAMP |
| 14 |
0326439 |
CLAMP, Leads |
| 15 |
0313666 |
RET., Distributor base 1 |
| 16 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 17 |
0389452 |
MOTOR CABLE ASSY |
| 24 |
0582556 |
POWER PACK This part replaces 0582138. |
| 27 |
0511449 |
COMMECTOR, Coil to power pack |
| 29 |
0511616 |
CLAMP, Cable |
| 31 |
0328726 |
SCREW (Use existing coil screw) This part replaces 0323796. |
| 32 |
0582330 |
COIL ASSY. |
| 35 |
0510767 |
RING TERMINAL |
| 38 |
0303311 |
SCR,Clamp,eng cable |
| 44 |
0319682 |
VIS, capteur vers plaque |
| 45 |
0319292 |
SCREW, Clamp This part replaces 0308762. |
| 47 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 49 |
0315004 |
FIL DE LIAISON, bornier |
| 50 |
0323729 |
COVER, Terminal block This part replaces 0390318. |
| 52 |
0326255 |
LEVER, Choke knob |
| 54 |
0306407 |
LOCCKWASHER,Cover latch |
| 55 |
0173640 |
VOLTAGE REGUALTOR KIT |
| 56 |
0304913 |
SCREW, Mounting |
