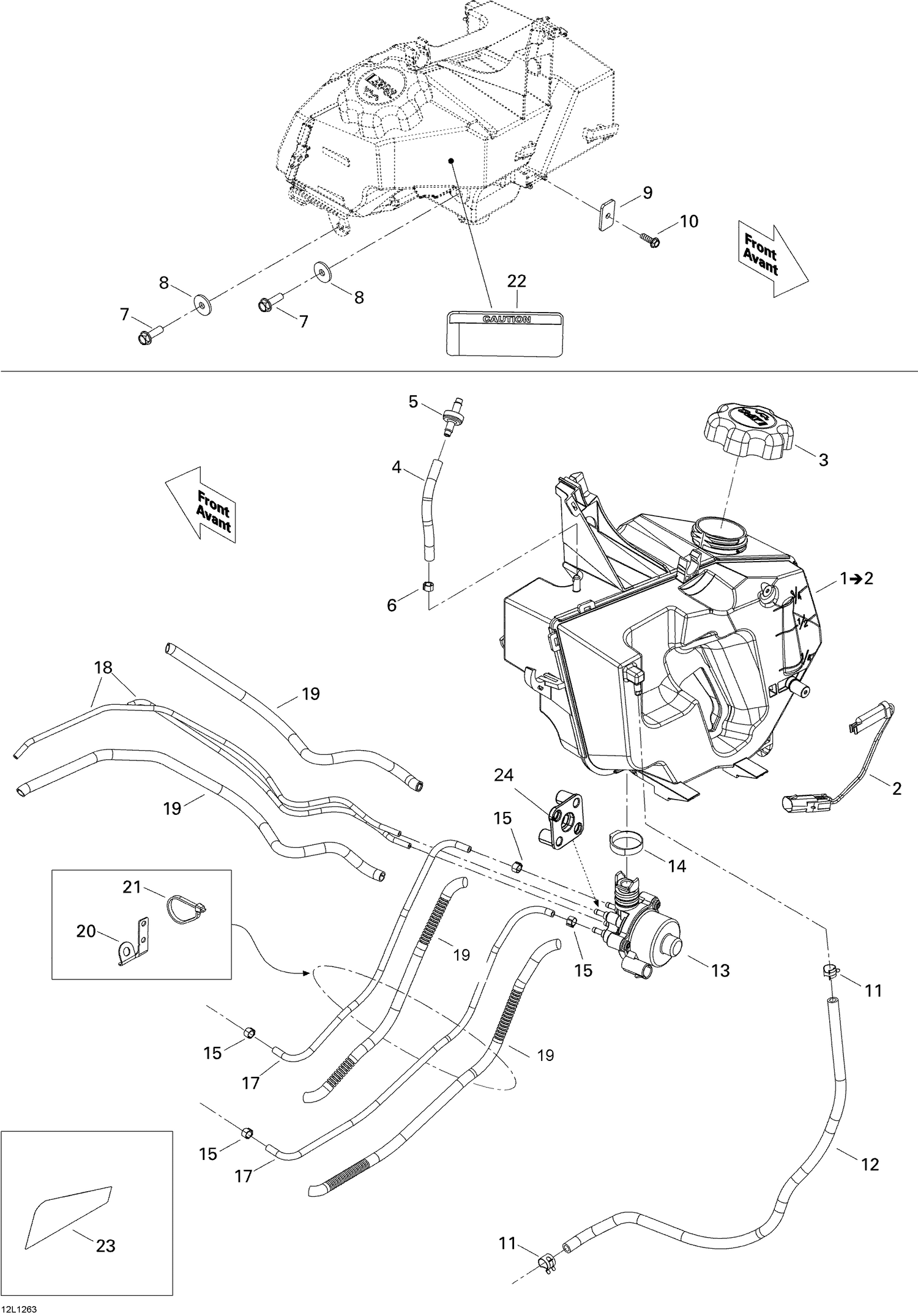

02- Oil System
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515176508 | Oil Level Sensor |
| 3 | 519000194 | CAP - Call your local BRP dealership |
| 4 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 5 | 275500398 | Check Valve |
| 6 | 414554800 | Spring Clamp |
| 7 | 250000331 | Hex. Flanged Screw M6 X 20, Scotch Grip |
| 8 | 224061201 | Flat Washer |
| 9 | 519000179 | Bracket |
| 10 | 241151640 | Hex. Flanged Screw K50 X 16 |
| 11 | 414554800 | Spring Clamp |
| 12 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 13 | 519000376 | Pump_Hydraulic This part replaces 519000268. |
| 14 | 293650099 | Oetiker Gear Clamp |
| 15 | 293650100 | Oetiker Clamp |
| 17 | 519000182 | Hose 3.5 mm |
| 18 | 519000184 | Hose 2.5 mm |
| 19 | 515175442 | Tubing 6 mm |
| 20 | 519000245 | Bracket |
| 21 | 293750002 | Tie-Rap 142 mm |
| 22 | 516005528 | NOTICE DECAL, OIL - Call your local BRP dealership This part replaces 516004719. |
| 23 | 516004648 | Protection Decal |
