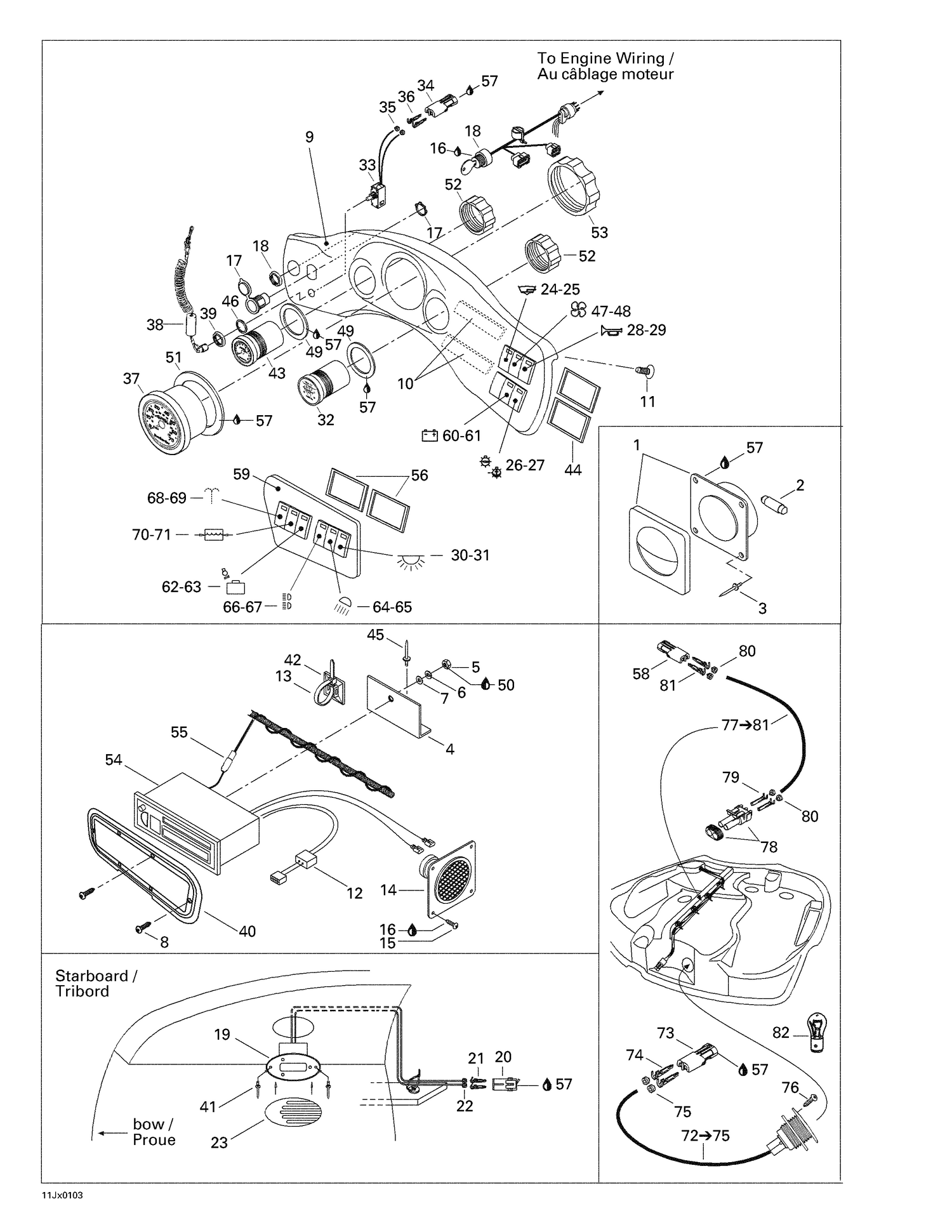

10- Electrical Accessories 1
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204470081 | BULB - Call your local BRP dealership |
| 3 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 4 | 204470559 | Radio Support |
| 5 | 232051600 | Hex. Nut M5 |
| 6 | 234151601 | Helical Lock Washer M5 |
| 7 | 234052600 | Flat Washer 5 mm, Stainless |
| 8 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 10 | 204470268 | Double Faced Tape (Meter) |
| 11 | 293730014 | Black Dart |
| 12 | 204470621 | Harness Radio |
| 13 | 293750002 | Tie Wrap 142 mm |
| 14 | 204470378 | Speaker |
| 15 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 16 | 219704457 | ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 17 | 710001248 | DC Outlet This part replaces 204470252. |
| 18 | 204470630 | Instrumentation Harness |
| 19 | 204470418 | Horn |
| 20 | 409209500 | Female Housing, 2 Circuits This part replaces 204470528. |
| 21 | 278001014 | Female Terminal |
| 22 | 278001013 | Wire Seal |
| 23 | 204470548 | Horn Cover |
| 25 | 204470132 | Gasket |
| 27 | 204470132 | Gasket |
| 29 | 204470132 | Gasket |
| 31 | 204470132 | Gasket |
| 32 | 204470391 | Oil/Fuel Gauge |
| 34 | 278000217 | Female Housing, 2 Circuits |
| 35 | 278000218 | Wire Seal |
| 36 | 278000222 | Male Terminal |
| 37 | 204470561 | Speedometer Gauge |
| 38 | 278001431 | Safety Lanyard This part replaces 204470464. |
| 39 | 278000099 | Safety Switch Nut |
| 40 | 204470535 | Radio Cover |
| 41 | 293150005 | Pop Rivet 3/16" |
| 42 | 293750015 | TIE RAP MOUNT - Call your local BRP dealership |
| 43 | 204470466 | Tachometer Gauge |
| 44 | 204470343 | LOCKING PLATE - Call your local BRP dealership |
| 45 | 204000081 | Pop Rivet 3/16" |
| 46 | 204100027 | FLAT WASHER - Call your local BRP dealership |
| 48 | 204470132 | Gasket |
| 49 | 204470308 | Gasket |
| 50 | 293800060 | Loctite 243, 10 ml |
| 51 | 204470309 | Gasket |
| 52 | 204470146 | Gauge Nut |
| 53 | 204470171 | Gauge Nut |
| 54 | 204470554 | Radio Compact Disk |
| 55 | 204470380 | Antenna |
| 56 | 204470343 | LOCKING PLATE - Call your local BRP dealership |
| 57 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 58 | 278000217 | Female Housing, 2 Circuits |
| 59 | 204470401 | Switch Panel |
| 61 | 204470132 | Gasket |
| 63 | 204470132 | Gasket |
| 65 | 204470132 | Gasket |
| 67 | 204470132 | Gasket |
| 69 | 204470132 | Gasket |
| 71 | 204470132 | Gasket |
| 73 | 278000217 | Female Housing, 2 Circuits |
| 74 | 278000222 | Male Terminal |
| 75 | 278000218 | Wire Seal |
| 76 | 241142560 | Hex. Flange Screw K40 X 25 |
| 78 | 278000220 | Male Connector, 2 Circuits |
| 79 | 409007300 | Female Terminal |
| 80 | 278000218 | Wire Seal |
| 81 | 278000222 | Male Terminal |
