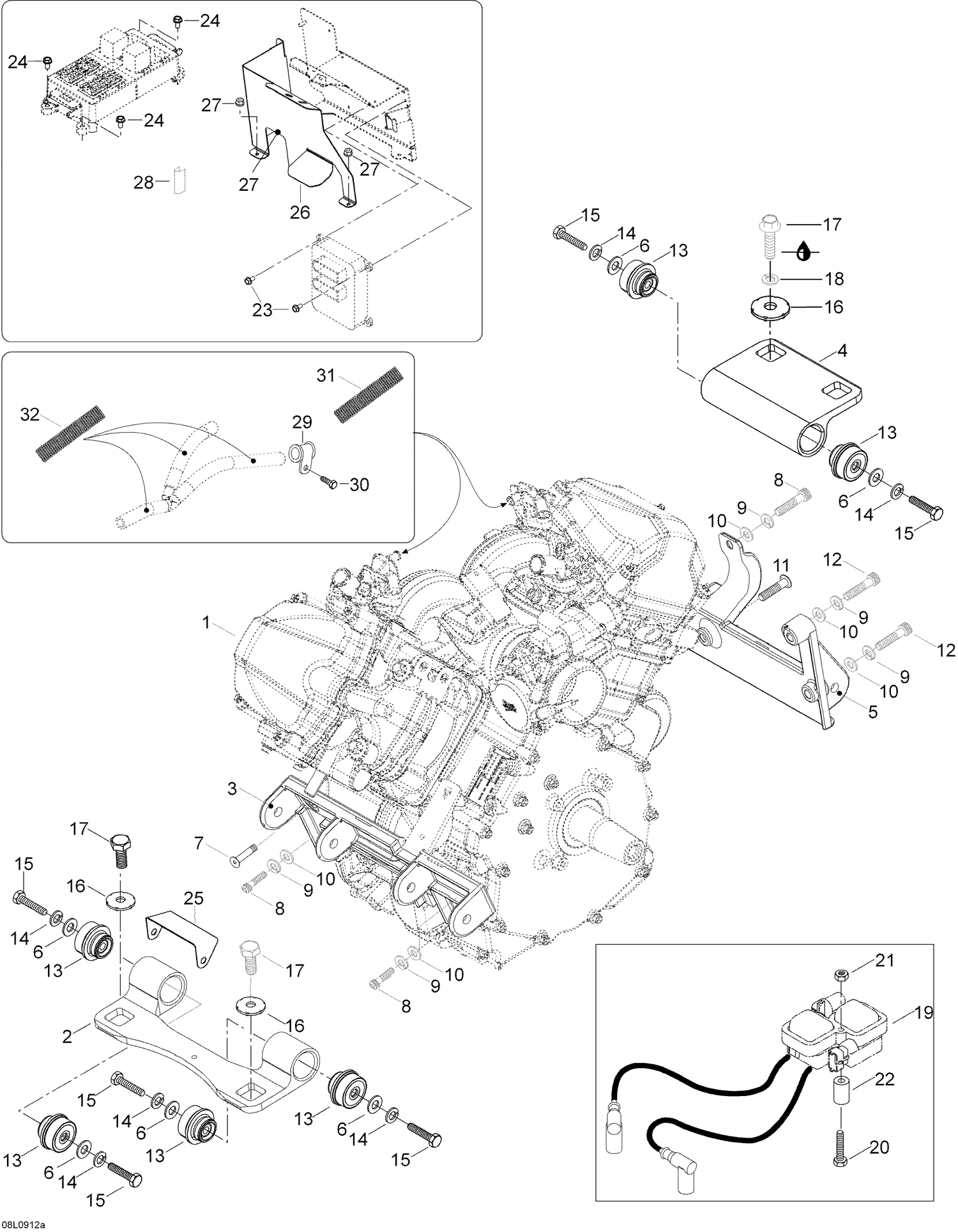

| Ref | Part Number | Description |
|---|
| 1 |
390810190 |
Engine |
| 2 |
605353705 |
FRONT SUPPORT - Call your local BRP dealership |
| 3 |
605253109 |
FRONT ENGINE MOUNTING SUPPORT - Call your local BRP dealership |
| 4 |
605255711 |
ENGINE REAR SUPPORT ASSY - Call your local BRP dealership |
| 5 |
605253110 |
REAR ENGINE MOUNTING SUPPORT - Call your local BRP dealership |
| 6 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 7 |
40839 |
ALLEN SCREW M8 X 20 - Call your local BRP dealership |
| 8 |
40289 |
Socket head screw M8 x 25 |
| 9 |
20014 |
Lock washer A8 |
| 10 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 11 |
605640012 |
SOCKET SCREW M8 X 25 - Call your local BRP dealership |
| 12 |
40286 |
Allen sc. M8 X 45 DIN912m8.8Zn(1=10pcs) - Call your local BRP dealership |
| 13 |
512059691 |
Rubber mount |
| 14 |
20113 |
Lock washer M10 |
| 15 |
40041 |
Hex. Screw M10 x 30 |
| 16 |
512056700 |
Lock washer |
| 17 |
40040 |
Screw M10 x 25 |
| 18 |
20113 |
Lock washer M10 |
| 19 |
420266077 |
Ignition coil ass'y |
| 20 |
40084 |
Hex. Screw M6 x 45 |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 22 |
512059812 |
SPACER - Call your local BRP dealership |
| 23 |
40327 |
Screw M6 x 12 |
| 24 |
210251650 |
Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 25 |
605354238 |
FRONT DEFLECTOR - Call your local BRP dealership |
| 26 |
605353299 |
HEAT COVER - Call your local BRP dealership |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 28 |
28413 |
Protector |
| 29 |
27092 |
Clamp |
| 30 |
40327 |
Hex. Screw M6 x 12 |
| 31 |
27127 |
Tubing |
