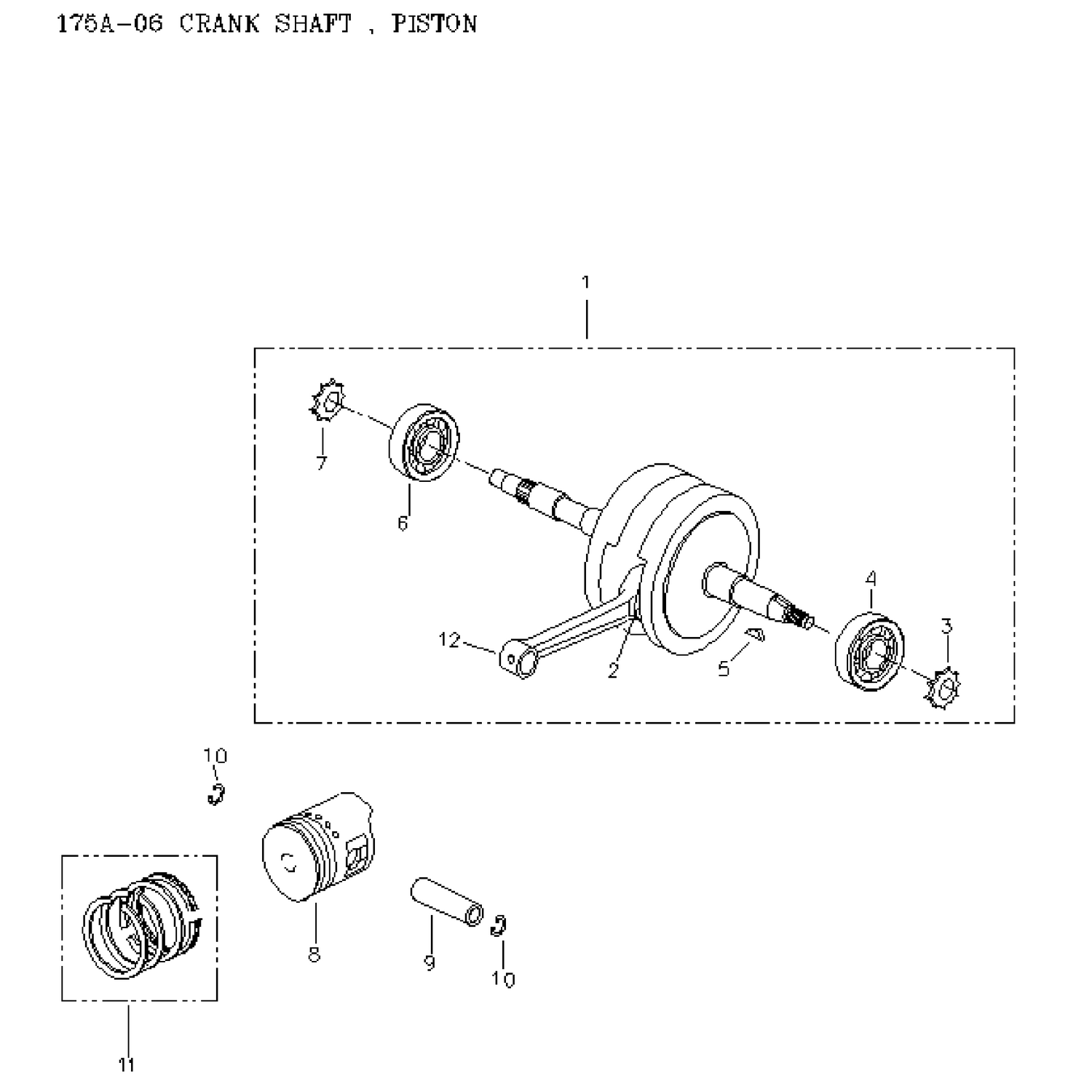

01- Crankshaft And Pistons
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A13000133000 | Crankshaft Ass'y |
| 2 | A96200282313 | Needle Bearing |
| 3 | A14322120000 | Sprocket Oil Pump |
| 4 | A96100SC03A39 | RADIAL BALL BEARING - Call your local BRP dealership |
| 5 | A90471133000 | Semicycle Key |
| 6 | A96100TMB204 | RADIAL BALL BEARING - Call your local BRP dealership |
| 7 | A14311133000 | Timing Sprocket |
| 8 | A13100175000 | PISTON - Call your local BRP dealership |
| 9 | A13111175000 | PISTON PIN - Call your local BRP dealership |
| 10 | A13115101000 | PISTON PIN CLIP, 1.0 X 14 - Call your local BRP dealership |
| 11 | A13011175000 | PISTON RING SET - Call your local BRP dealership |
