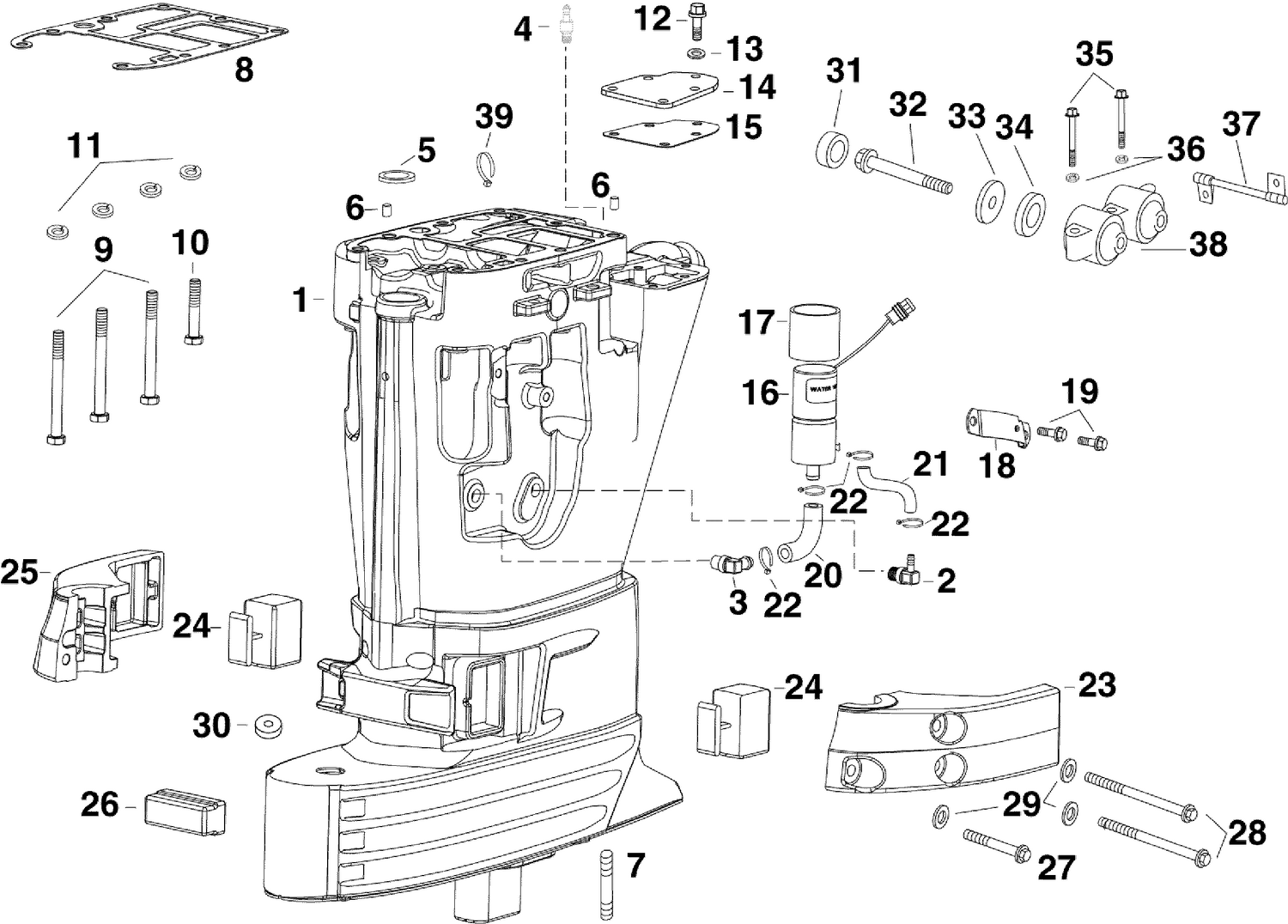

| Ref | Part Number | Description |
|---|
| 1 |
5008274 |
EXHAUST HOUSING |
| 1 |
5008276 |
EXHAUST HOUSING |
| 9 |
0352529 |
SCREW, Exhaust housing to powerhead |
| 10 |
0352530 |
SCREW, Exhaust housing to powerhead |
| 14 |
0351769 |
COVER, Exhaust relief |
| 15 |
0351768 |
GASKET, Exhaust relief cover |
| 16 |
5006129 |
VALVE, Water |
| 17 |
0352041 |
GROMMET, Water valve |
| 18 |
0330153 |
CLAMP, Water valve |
| 20 |
0333446 |
FLEXIBLE, entrée d'eau |
| 21 |
0352480 |
HOSE, Water outlet |
| 22 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 23 |
0351316 |
MOUNT BRACKET, Port |
| 24 |
0333764 |
MOUNT, Lower |
| 25 |
0351317 |
MOUNT BRACKET, Starboard |
| 26 |
0332421 |
MOUNT, Bracket front |
| 28 |
0339822 |
SCREW, Mount bracket |
| 30 |
0321452 |
GROMMET |
| 31 |
0313581 |
BUMBER, Mount screw |
| 32 |
0317648 |
SCREW, Upper mount |
| 33 |
0321232 |
RETAINER WASHER |
| 34 |
0313580 |
WASHER |
| 35 |
0306423 |
BOLT |
| 37 |
0582494 |
GROUND STRAP |
| 38 |
0436470 |
MOUNT, Upper |
