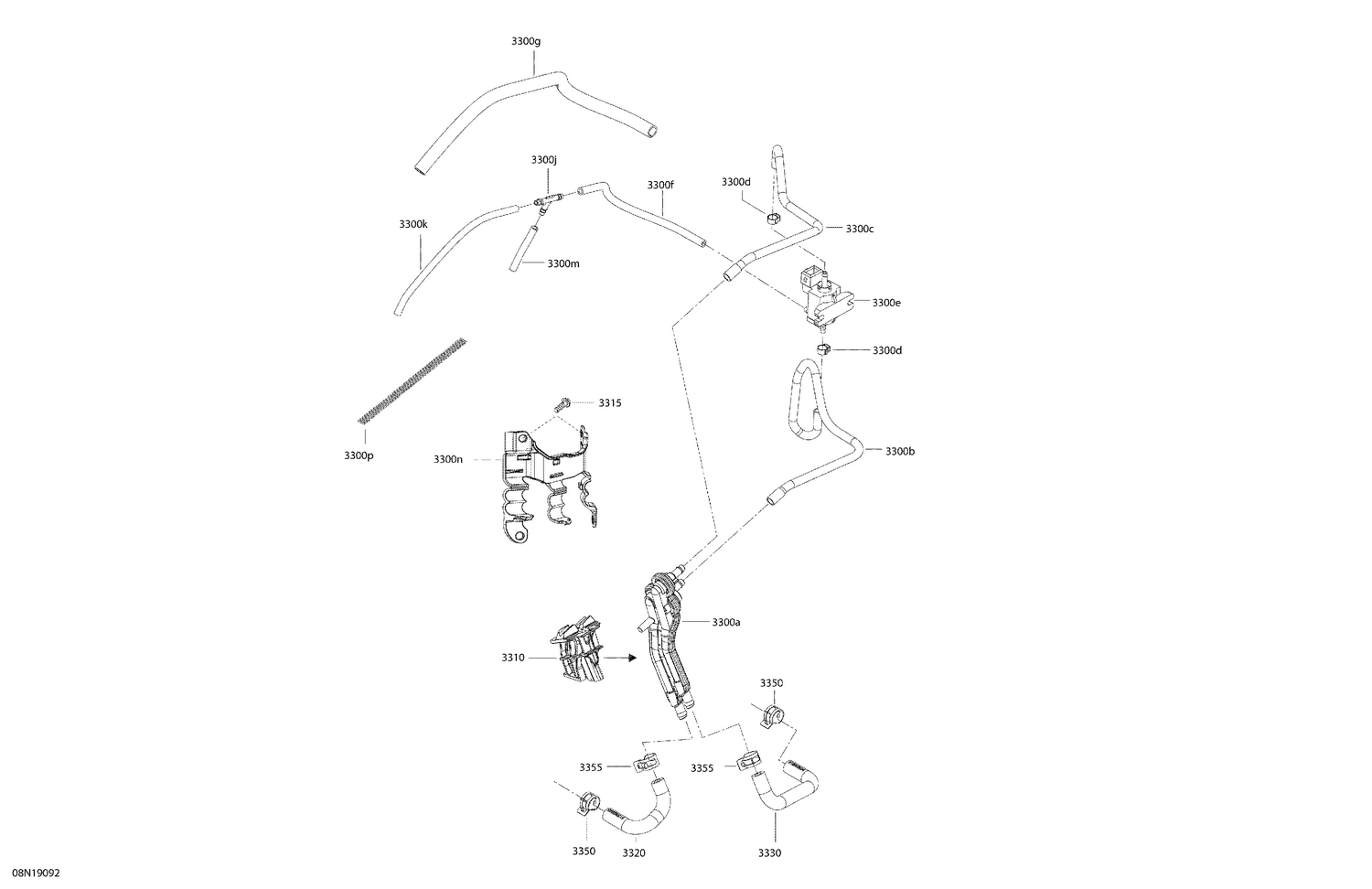

01- Engine Manifold - 800R E-TEC
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 3300a | 512060692 | Manifold |
| 3300b | 219704410 | Polyurethane Hose 10000Mm Long |
| 3300c | 219704410 | Polyurethane Hose 10000Mm Long |
| 3300d | 293650234 | Crimp Clamp |
| 3300e | 270600005 | Solenoid Valve This part replaces 512061078. |
| 3300f | 219704352 | Was 420660574 Pressure Hose 280 mm |
| 3300g | 219704399 | Was 409901700 Tubing (9 mm) |
| 3300j | 293710068 | T-Fitting |
| 3300k | 219704352 | Was 420660574 Pressure Hose 280 mm |
| 3300m | 219704352 | Was 420660574 Pressure Hose 280 mm |
| 3300n | 512060827 | Hose Support |
| 3300p | 512060934 | Spring |
| 3310 | 512060822 | Manifold Support |
| 3315 | 250000937 | Screw-Forming HEX.HD.FL.BZN |
| 3320 | 512060695 | LH Formed Hose |
| 3330 | 512060694 | RH Formed Hose |
| 3350 | 293650214 | Norma Spring Clamp |
