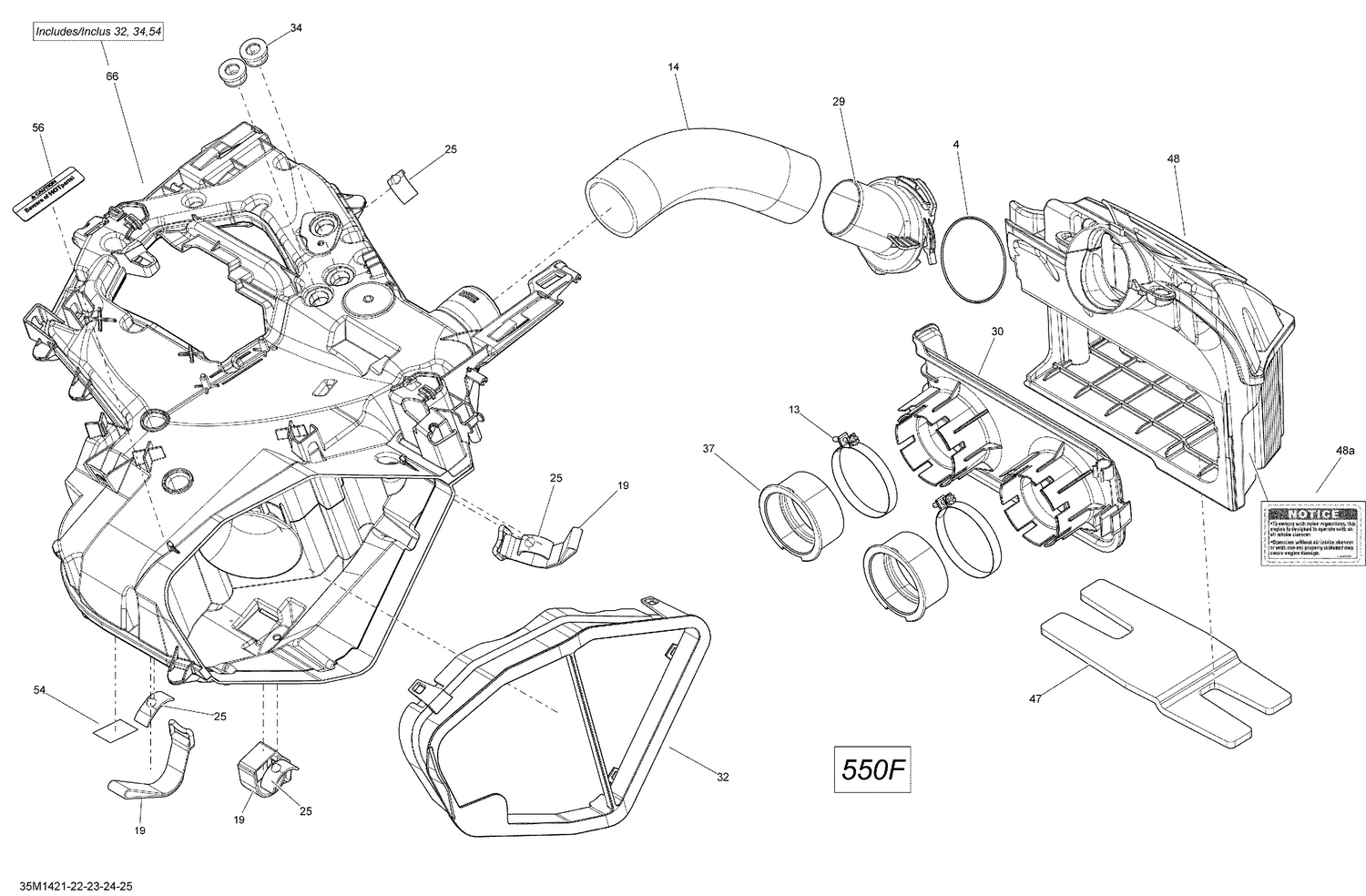

02- Air Intake System _35M1421
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 293300115 | O-Ring |
| 13 | 508000369 | Gemi Clamp |
| 14 | 508000406 | Tube |
| 19 | 508000820 | Velcro Strip This part replaces 508000532. |
| 25 | 508000537 | Stopper |
| 29 | 508000562 | Link |
| 30 | 508000564 | ADAPTER PLATE - Call your local BRP dealership |
| 32 | 508000568 | Air Intake Filter |
| 34 | 508000574 | Grommet |
| 37 | 508000594 | Air Intake Adapter |
| 47 | 508000674 | Insulated Foam |
| 48 | 508000680 | Primary Chamber Ass'y |
| 54 | 509000688 | Reflective Sheet |
| 56 | 516005280 | Caution Decal Hot Parts |
| 66 | 508000712 | Secondary Chamber Ass'y |
