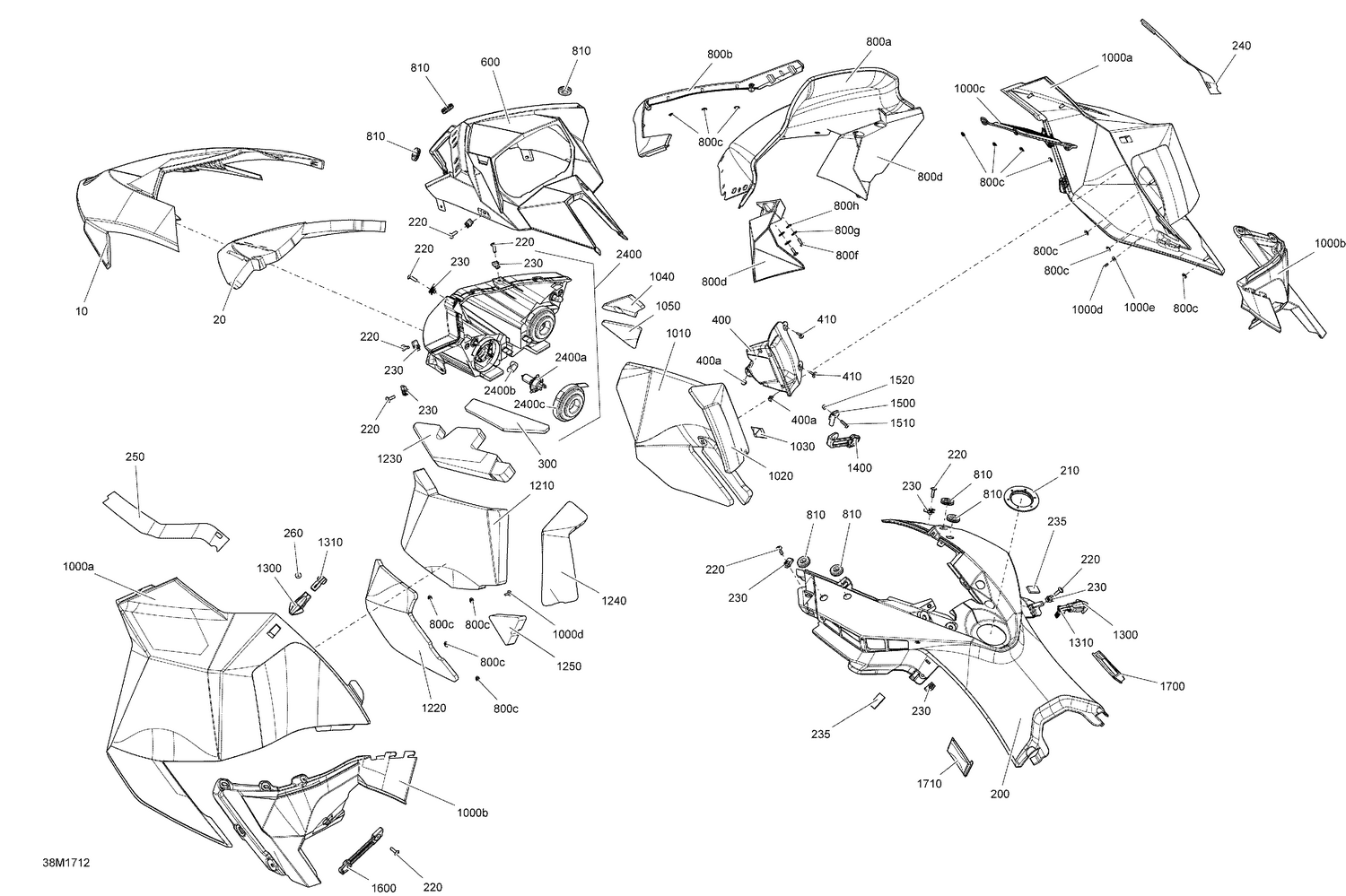

09- Hood — Parts Catalog

Parts (51)

Ref	Part Number	Description
10	517304492	White Hood
20	517304913	Hood Foam
200	517305274	White Console
210	517304518	Console Nut
220	250000705	Torx Truss Screw M6 X 20
230	250100198	Panel Nut M6 X 1.0 This part replaces 250100113.
235	517304105	Console Decal
240	517304103	RH Decal
240	517304104	LH Decal
260	250000721	Torx Truss Screw M6 X 16
300	517304882	Foam
400a	275500241	Black, Cap
410	250000725	Screw M4 X 16
600	517304578	Gauge Support
800a	517304766	Windshield 450
800b	517303607	Windshield Support
800c	732610072	Push Nut
800d	517303604	RH Air Deflector
800d	517303605	LH Air Deflector
800f	250000720	Torx Screw K50 X 16
800g	250200025	Washer M5
800h	250200024	Rubber Washer 5 mm
810	517303756	Grommet
1000a	517304029	Deep Black, RH Panel
1000a	517304030	Deep Black, LH Panel
1000b	517303671	Deep Black RH Moulding Panel
1000b	517303673	Deep Black, LH Moulding Panel
1000c	517303622	Grille
1000d	241141660	Hex. Flange Screw K40 X 16
1000e	234042600	Flat Washer 4 mm, Stainless
1010	517304883	RH Center Foam
1020	517304884	RH Panel Rear Foam
1030	517305451	Heat Shield
1040	517304885	Foam
1050	517304886	Foam
1210	517304887	LH Panel Center Foam
1220	517304888	LH Panel Lower Foam
1230	517304889	LH Panel Upper Foam
1240	517304890	LH Panel Rear Foam
1250	517304891	Foam
1300	517304075	End Piece Latch
1310	517303981	Panel Latch
1400	517303612	RH Panel Latch
1500	517304221	Latch Support
1510	250000792	Torx Screw M5 X 20
1600	517303808	LH Panel Latch
1700	513033471	RH Panel Clip
1710	513033472	LH Panel Clip
2400a	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 )
2400b	515176498	Cap
2400c	219800280	Rubber Cap Protector This part replaces 515176499.
