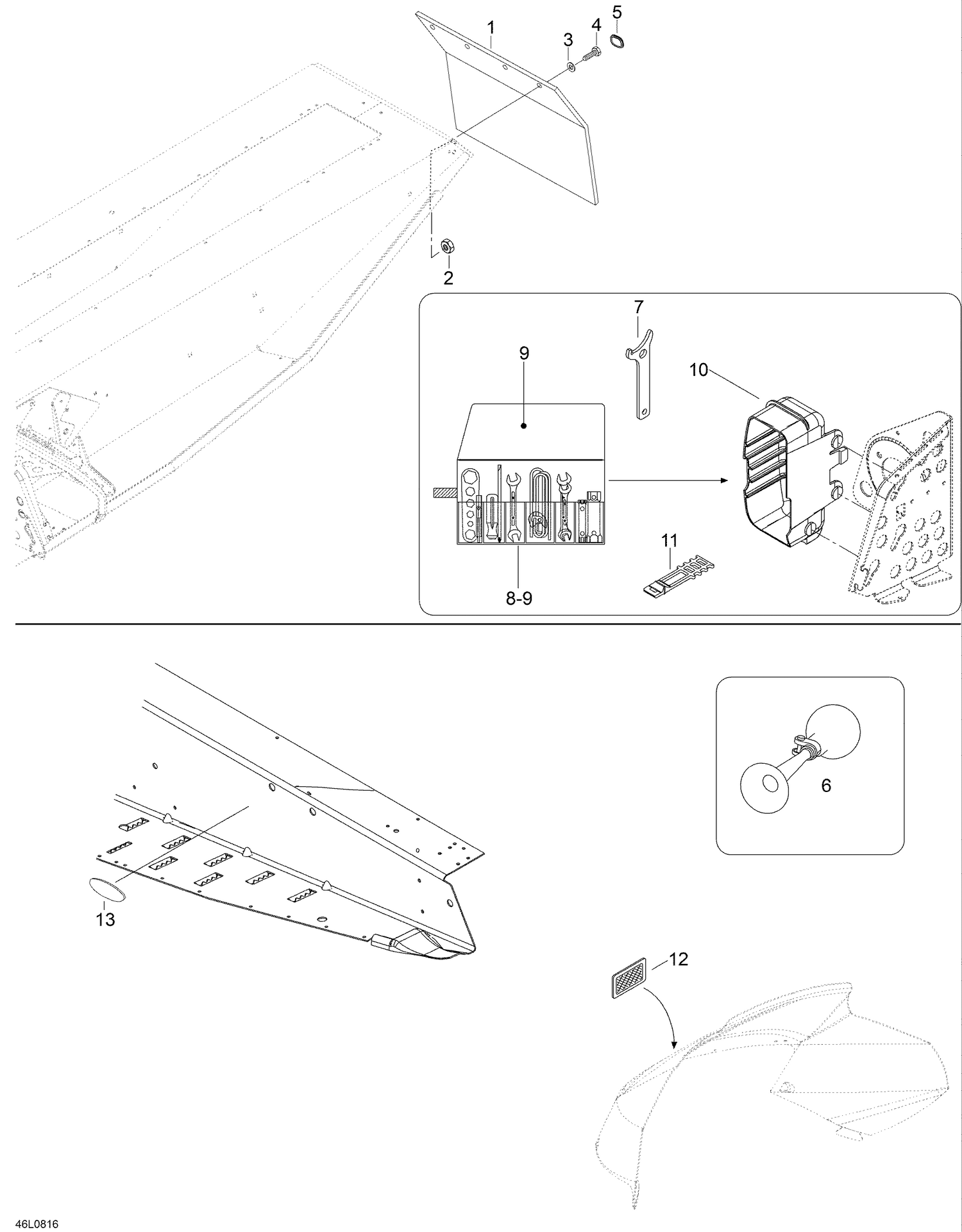

| Ref | Part Number | Description |
|---|
| 1 |
5246131 |
Roiskeläppä |
| 2 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 3 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 4 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 5 |
415073300 |
Peitelevy |
| 6 |
549011291 |
Horn This part replaces 21003. |
| 7 |
529000035 |
Wrench adjuster This part replaces 529032900. |
| 9 |
520000047 |
Työkalupussi |
| 10 |
520000322 |
TRUNK - Call your local BRP dealership |
| 11 |
570069700 |
LATCH - Call your local BRP dealership |
| 12 |
21118 |
Heijastin, valkoinen |
