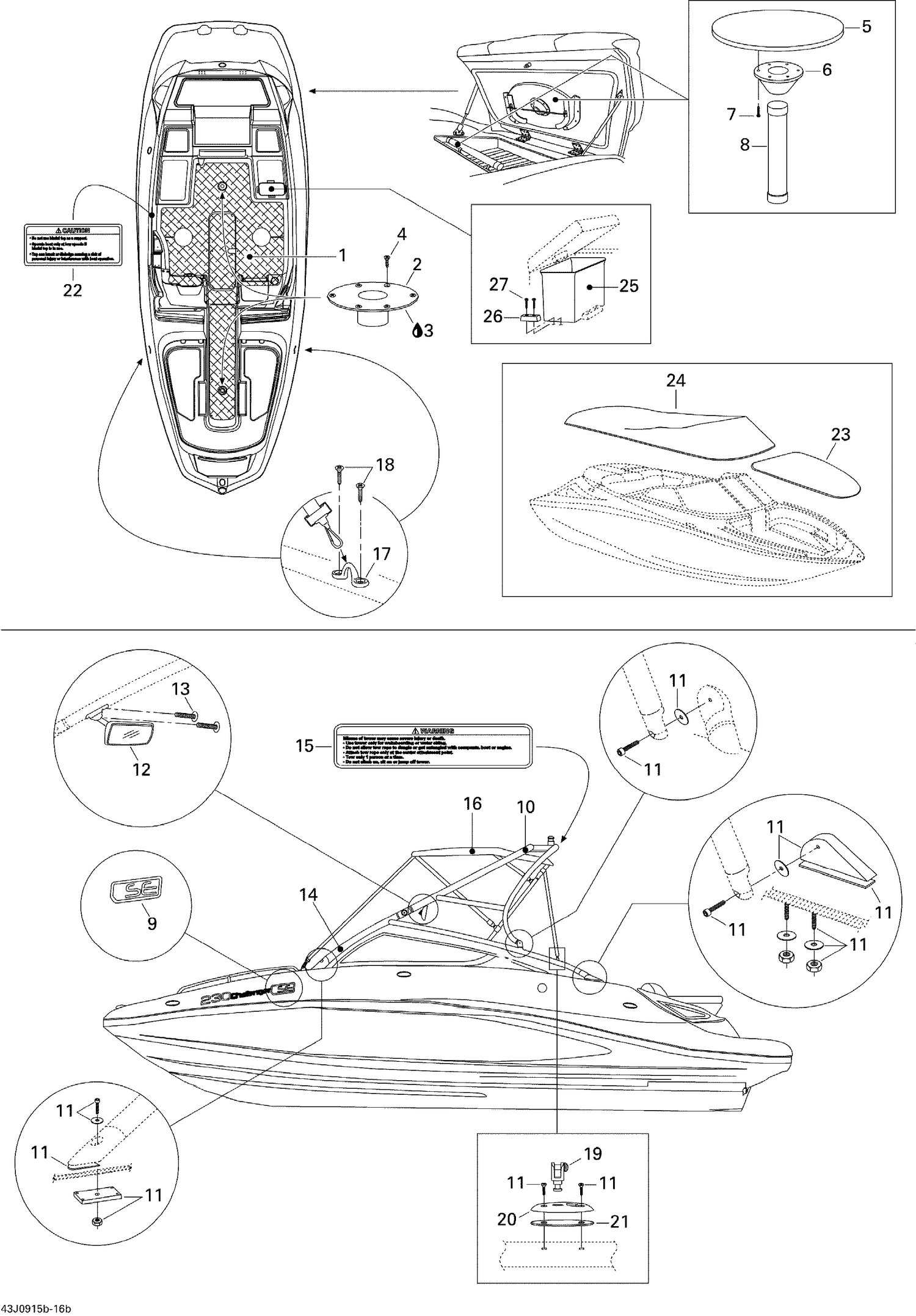

| Ref | Part Number | Description |
|---|
| 1 |
204950081 |
COCKPIT CARPET - Call your local BRP dealership |
| 2 |
204071209 |
TABLE BASE - Call your local BRP dealership |
| 3 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 4 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 5 |
204073212 |
COCKPIT TABLE - Call your local BRP dealership |
| 6 |
204071315 |
TABLE MOUNT - Call your local BRP dealership |
| 7 |
209951960 |
TAPPING SCREW M5 X 19 - Call your local BRP dealership |
| 8 |
204070634 |
TABLE POST, LARGE - Call your local BRP dealership |
| 9 |
204901801 |
DECAL, SE - Call your local BRP dealership |
| 10 |
204072916 |
Tower Ass'y |
| 11 |
204072919 |
Tower Installation Hardware Kit |
| 12 |
295100386 |
SKI MIRROR - Call your local BRP dealership This part replaces 204071420. |
| 13 |
204100129 |
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership |
| 14 |
204950028 |
Tower Rail, Port Side |
| 14 |
204950029 |
Tower Rail, Starboard |
| 15 |
204901340 |
WARNING DECAL, TOWER - Call your local BRP dealership |
| 16 |
204950160 |
Bimini Top Ass'y |
| 17 |
204071845 |
STRAP EYE - Call your local BRP dealership |
| 18 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 19 |
204950033 |
BIMINI POST - Call your local BRP dealership |
| 20 |
204950034 |
BIMINI BASE - Call your local BRP dealership |
| 21 |
204950031 |
BIMINI SPACER - Call your local BRP dealership |
| 22 |
204901331 |
CAUTION LABEL, BIMINI TOP - Call your local BRP dealership |
| 23 |
204950093 |
BOW COVER - Call your local BRP dealership |
| 25 |
204950095 |
TRASH CAN - Call your local BRP dealership |
| 26 |
204611805 |
LATCH - Call your local BRP dealership |
