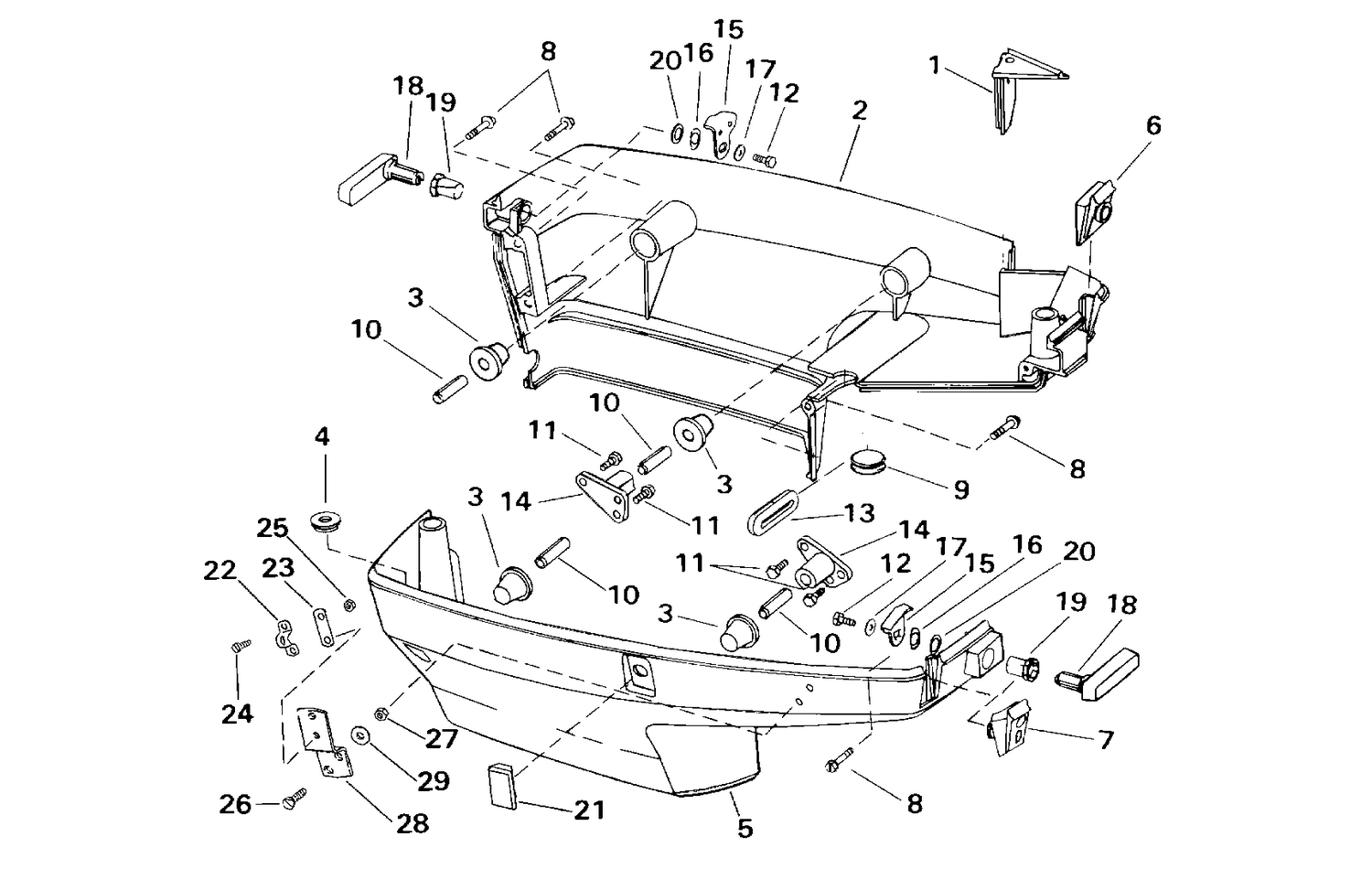

LOWER ENGINE COVER
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0344240 | BRACKET, Fuel conn. |
| 2 | 5004984 | Lmc Ay This part replaces 0344373. |
| 3 | 0332413 | MOUNT |
| 4 | 0320521 | GROMMET |
| 5 | 0341592 | ENGINE COVER, Lower, stbd. |
| 6 | 0333761 | BRACKET |
| 8 | 0332415 | SCREW |
| 9 | 0337907 | PLUG, Shift rod hole |
| 11 | 0551793 | SCREW |
| 13 | 0344342 | SEAL, Steering arm |
| 14 | 0333772 | BRACKET |
| 15 | 0330253 | HOOK Front |
| 19 | 0334851 | BUSHING |
| 22 | 0342619 | CABLE CLAMP |
| 23 | 0342620 | SHIM |
| 24 | 0342621 | SCREW |
| 25 | 0342622 | LOCKNUT |
| 27 | 0342610 | NUT |
| 28 | 0342611 | BRACKET |
