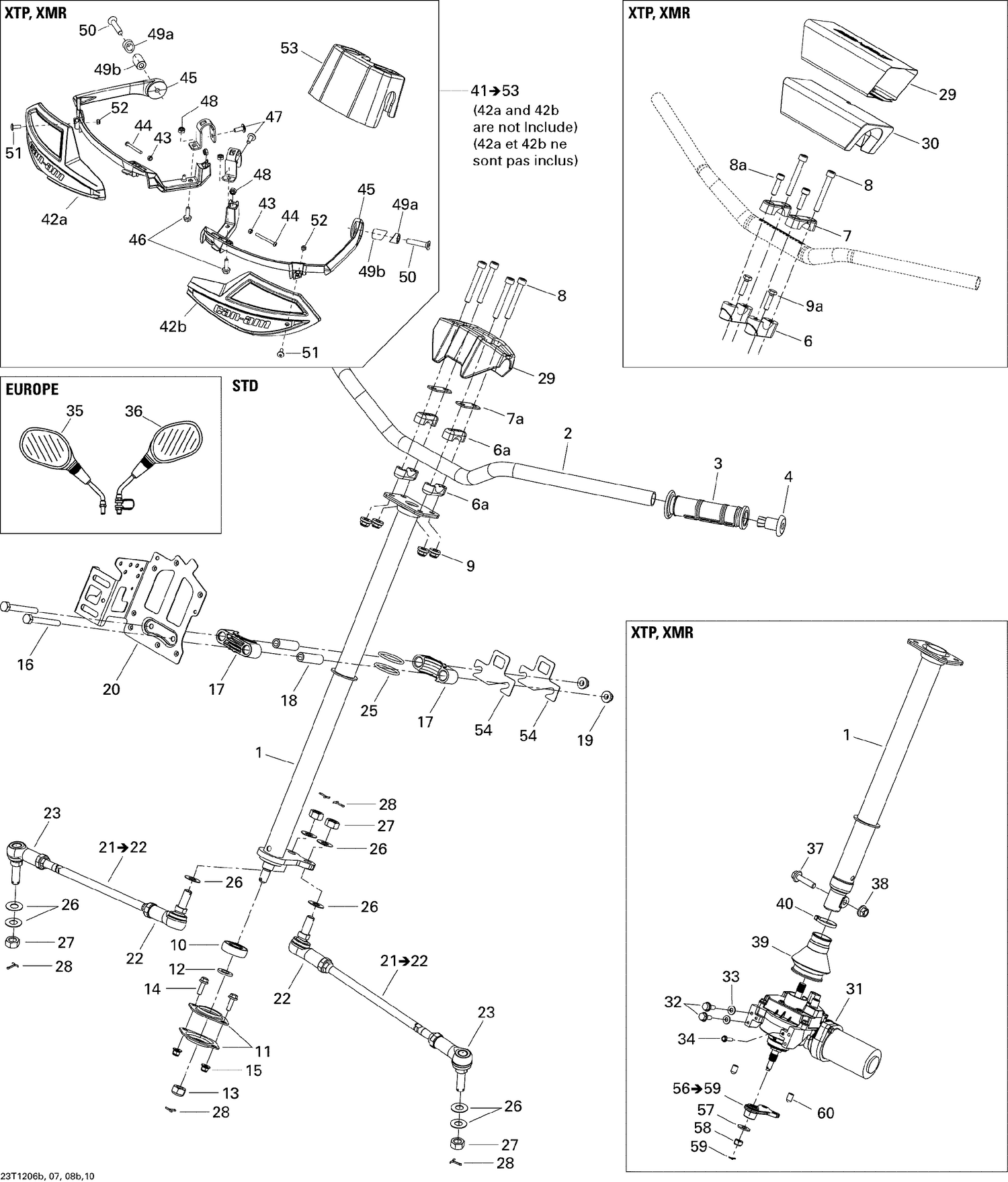

07- Steering

07- Steering

Parts (61)

RefPart NumberDescription
1 709400971 Main Tube, Black
2 709401242 Handlebar This part replaces 709400880.
3 709400493 Handle Grip
4 709400449 End Piece
6 XXX Not Available As Spare Parts
6a 709400919 Steering Support
7 XXX Not Available As Spare Parts
7a 709400920 SUPPORT - Call your local BRP dealership
8 205086060 Socket Head Screw M8 X 60
8a XXX Not Available As Spare Parts
9 233281416 Hex. Elastic Flange Nut M8
9a XXX Not Available As Spare Parts
10 709400439 Ball Bearing
11 709400152 FLANGE, BEARING - Call your local BRP dealership
12 234021410 Flat Washer 12 mm
13 250000047 Hex. Flange Elastic Nut M12
14 207562034 Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044.
15 233261414 Hex. Flange Elastic Nut M6 x 1.0
16 207087044 Hex. Screw M8 X 70
17 709400471 Half Bushing
18 709400072 BUSHING - Call your local BRP dealership
19 233281414 Hex. Flange Elastic Nut M8
20 709400751 MODULE SUPPORT - Call your local BRP dealership
22 709402303 LH Ball Joint This part replaces 709400486.
23 709400487 Ball Joint, RH Threads
25 293300068 O-Ring
26 706200281 Hardened Washer
27 250100099 Nut M12
28 211400013 Cotter Pin
29 XXX Not Available As Spare Parts
30 XXX Not Available As Spare Parts
31 XXX Not Available As Spare Parts
32 XXX Not Available As Spare Parts
33 XXX Not Available As Spare Parts
34 XXX Not Available As Spare Parts
35 709400406 LH Mirror
36 709400523 RH Mirror
37 XXX Not Available As Spare Parts
38 XXX Not Available As Spare Parts
39 XXX Not Available As Spare Parts
40 XXX Not Available As Spare Parts
41 XXX Not Available As Spare Parts
42a XXX Not Available As Spare Parts
42b XXX Not Available As Spare Parts
43 XXX Not Available As Spare Parts
44 XXX Not Available As Spare Parts
45 XXX Not Available As Spare Parts
46 XXX Not Available As Spare Parts
47 XXX Not Available As Spare Parts
48 XXX Not Available As Spare Parts
49a XXX Not Available As Spare Parts
49b XXX Not Available As Spare Parts
50 XXX Not Available As Spare Parts
51 XXX Not Available As Spare Parts
52 XXX Not Available As Spare Parts
53 XXX Not Available As Spare Parts
54 709400734 SHIM 2 MM - Call your local BRP dealership
56 XXX Not Available As Spare Parts
57 XXX Not Available As Spare Parts
58 XXX Not Available As Spare Parts
59 XXX Not Available As Spare Parts
