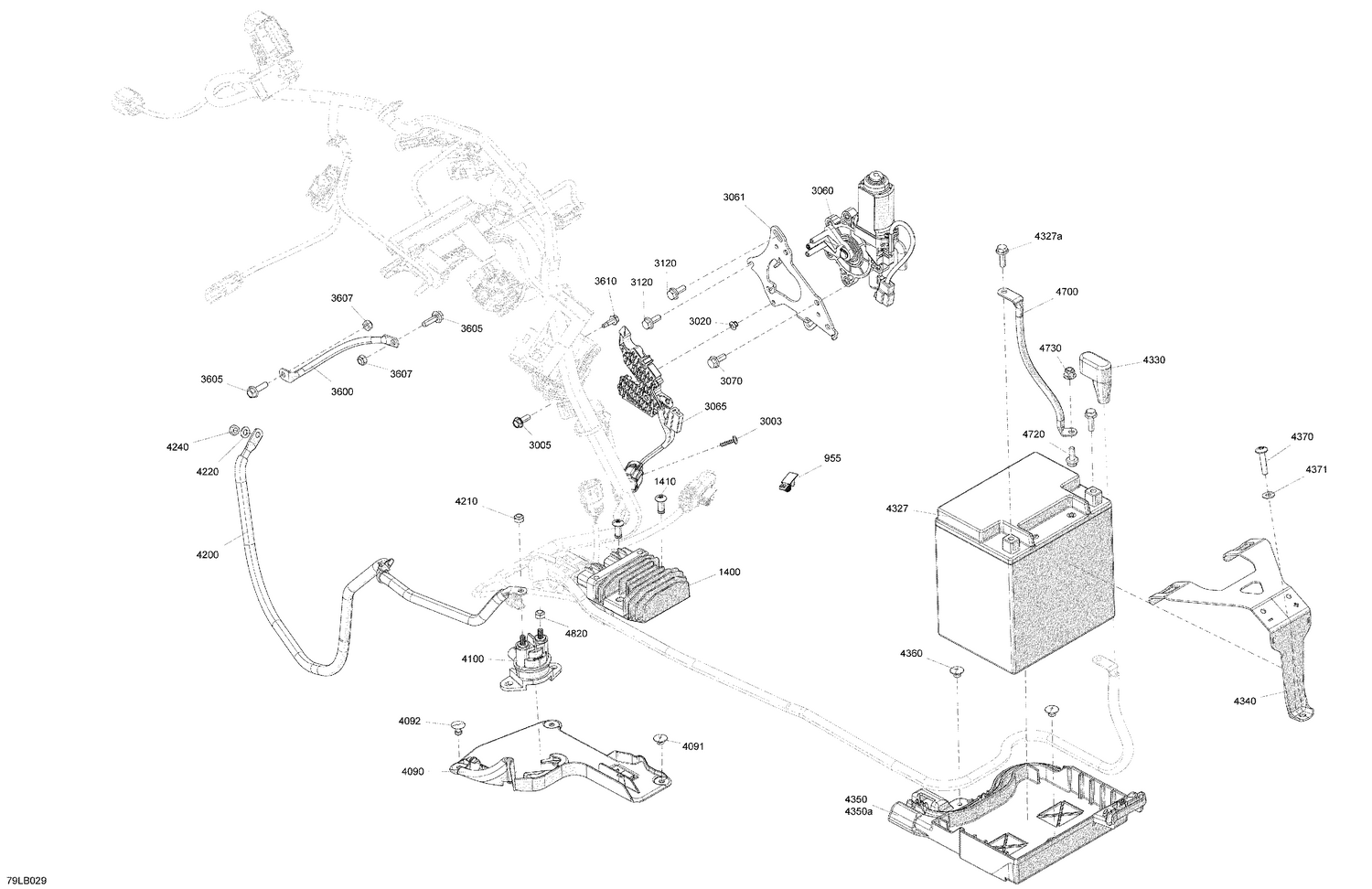

08- Electric - Lower Section
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 955 | 515178223 | Clip Connector |
| 1400 | 710010539 | Voltage Regulator This part replaces 710005569. |
| 1410 | 293150182 | Monobolt Rivet 6.4 |
| 2900 | 515179519 | SUB HARNESS ALPINE - Call your local BRP dealership This part replaces 515178971. |
| 2910 | 270000141 | Clip |
| 2915 | 293150037 | Avdel Rivet 3/16" |
| 3003 | 250000742 | Torx Screw M5 X 14 |
| 3005 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3020 | 390402200 | Pop Rivet 3/16 |
| 3060 | 515180200 | Engine Assembly |
| 3065a | 515177460 | Switch Ass'y |
| 3065b | 710000082 | Female Terminal |
| 3065c | 710000082 | Female Terminal |
| 3065d | 278002894 | Housing 6 Circuits |
| 3065f | 515178018 | Female Terminal |
| 3065g | 515178014 | Female Terminal |
| 3065h | 515177460 | Switch Ass'y |
| 3065j | 710004858 | Female Terminal |
| 3065k | 710004858 | Female Terminal |
| 3065m | 515176550 | Female Terminal Housing |
| 3065n | 515175282 | Female Terminal |
| 3070 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3120 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 3600 | 515178338 | Ground Wire |
| 3605 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3607 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 | 250000911 | Hex. Flange Screw M5 X 16 |
| 4090 | 515178244 | Support |
| 4091 | 293150103 | Pop Rivet 3/16 |
| 4092 | 293150104 | Pop Rivet 3/16 |
| 4100 | 278003012 | Starter Relay |
| 4200 | 515178336 | Battery Wire |
| 4210 | 232561434 | Elastic Stop Nut M6 |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561434 | Elastic Stop Nut M6 |
| 4327a | 515176081 | Battery Bolt Kit |
| 4330 | 710001817 | Protector Cap |
| 4340 | 515178658 | Battery Strip |
| 4350a | 515178659 | Battery Support Under |
| 4360 | 293150103 | Pop Rivet 3/16 |
| 4370 | 250000843 | Torx Truss Screw M6 X 30 |
| 4700 | 515178564 | Cable |
| 4720 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4730 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
