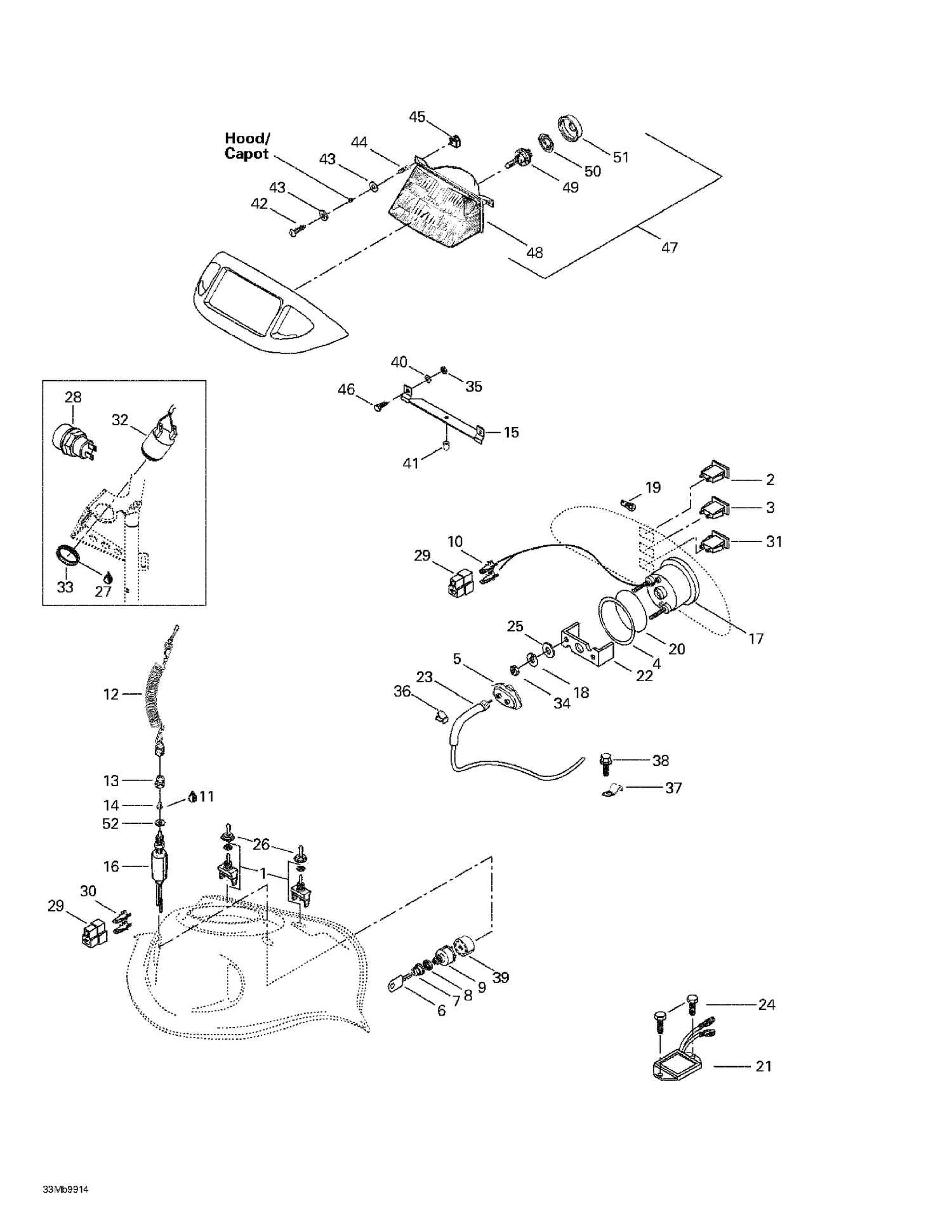

| Ref | Part Number | Description |
|---|
| 1 |
410107300 |
Switch (Heating Grip) |
| 2 |
410109500 |
Pilot Lamp (Red) |
| 3 |
410109600 |
Pilot Lamp (Blue) |
| 4 |
517258500 |
Washer |
| 5 |
572022300 |
Drive Angle |
| 6 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 7 |
570013700 |
Switch Boot |
| 8 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 9 |
410111300 |
IGNITION SWITCH - Call your local BRP dealership |
| 10 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 11 |
293550004 |
Dielectric Grease, 150 g This part replaces 413701700. |
| 12 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 13 |
515145900 |
Switch Nut |
| 14 |
570151100 |
Plunger Cap |
| 15 |
517218500 |
Headlamp Support |
| 16 |
515175653 |
Brake Switch This part replaces 410106700. |
| 17 |
415097000 |
Speedometer (KMH) |
| 18 |
414806700 |
Lock Washer |
| 19 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 20 |
414807100 |
O-Ring |
| 21 |
515163900 |
VOLTAGE REGULATOR - Call your local BRP dealership |
| 22 |
414806500 |
Case Holder |
| 23 |
414761400 |
Speedometer Cable |
| 24 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 732600002. |
| 25 |
517225900 |
Flat Washer This part replaces 414806800. |
| 26 |
515175281 |
Switch Cover |
| 27 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 28 |
415130372 |
Push Button This part replaces 415101200. |
| 29 |
409204500 |
MALE HOUSING - Call your local BRP dealership |
| 30 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 31 |
410113400 |
PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership |
| 32 |
515176035 |
HORN - Call your local BRP dealership This part replaces 415060900. |
| 33 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 34 |
414806900 |
Nut |
| 35 |
232551414 |
Elastic Stop Nut M5 This part replaces 228551045. |
| 36 |
414227300 |
Clip |
| 37 |
414176000 |
Open Clamp |
| 38 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 39 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 40 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 41 |
410608200 |
RUBBER STOPPER - Call your local BRP dealership |
| 42 |
732603002 |
Screw M4 x 40 |
| 43 |
234051410 |
Flat Washer M5 This part replaces 224051111. |
| 44 |
517168600 |
Spring |
| 45 |
572078600 |
Projector Nut |
| 46 |
207151244 |
Hex. Screw M5 X 12 This part replaces 222051265. |
| 48 |
410609300 |
Headlamp |
| 49 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 50 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 51 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
