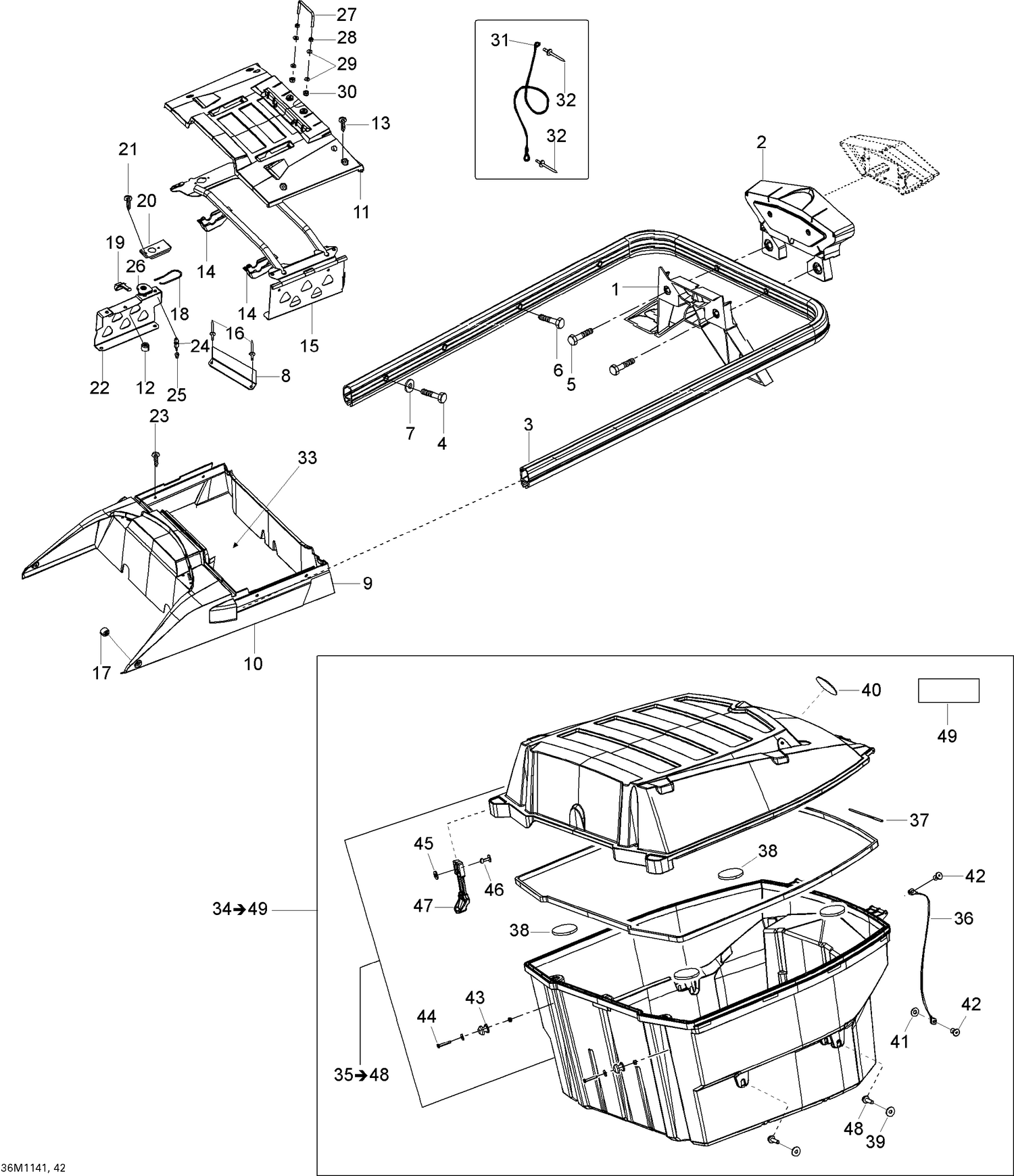

09- Luggage Rack
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 511000559 | Rear Light Support |
| 2 | 511000764 | Rear Light Cover |
| 3 | 511000563 | Black, Rear Bumper |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 5 | 207663534 | HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership |
| 6 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip |
| 7 | 234062410 | Flat Washer 6 mm This part replaces 234062430. |
| 8 | 510005156 | Cable Support Plate |
| 9 | 510004873 | Storage Box Ass'y |
| 10 | 510006243 | Storage Box This part replaces 510004874. |
| 11 | 510006244 | Storage Box Cover This part replaces 510004875. |
| 12 | 510005147 | Bushing |
| 13 | 250000454 | Torx Screw M6 X 12 |
| 14 | 510004999 | Cover |
| 15 | 510005714 | Lock tube This part replaces 510004951. |
| 16 | 390402200 | Pop Rivet 3/16" |
| 17 | 510005147 | Bushing |
| 18 | 269700109 | Latch Ass'y |
| 19 | 510005072 | Puller |
| 20 | 510005698 | Lock Pin Cover This part replaces 510005112. |
| 21 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 22 | 510004998 | LOCKING PLATE (FRAME) - Call your local BRP dealership |
| 23 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 24 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 25 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 26 | 510005044 | Lock Pin Guide |
| 27 | 510004876 | FASTENER PIN - Call your local BRP dealership |
| 28 | 250000135 | Hex. Nut M6 |
| 29 | 20117 | Washer This part replaces M20117. |
| 30 | 232561434 | Elastic Stop Nut M6 |
| 31 | 293750070 | Seat Retainer Cable This part replaces M546777. |
| 32 | 390402200 | Pop Rivet 3/16" |
| 33 | 510005043 | Foam |
| 36 | 293750070 | Seat Retainer Cable This part replaces M546777. |
| 37 | 511000702 | Pin |
| 38 | 510005273 | Foam |
| 39 | 234062410 | Flat Washer 6 mm |
| 40 | 219903305 | BRP Logo 48 mm This part replaces 219902544. |
| 41 | 250200025 | Washer M5 |
| 42 | M36036 | Black, Rivet |
| 43 | 605449087 | Counter Roller |
| 44 | 40168 | Slot Sc. M4 X 25 Din966M4.8Zne(1=10Pcs) This part replaces M40168. |
| 45 | 20037 | Washer This part replaces M20037. |
| 46 | 36037 | Black Rivet This part replaces M36037. |
| 47 | 517304572 | Latch-Panel |
| 48 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
