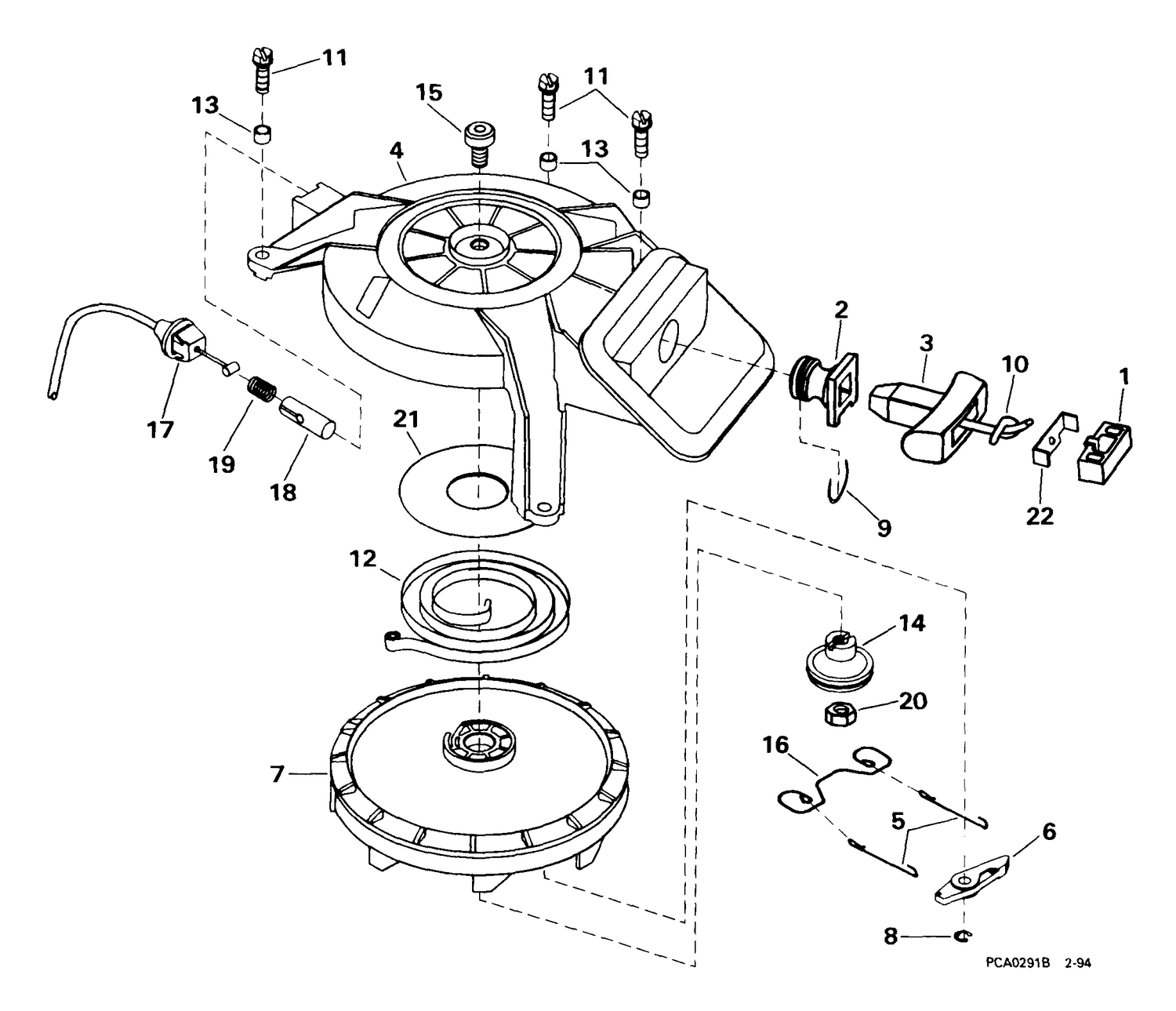

| Ref | Part Number | Description |
|---|
| 1 |
5000510 |
HANDLE ASSY., Starter This part replaces 0338507. |
| 2 |
0336148 |
GUIDE, Rope |
| 3 |
5000510 |
HANDLE ASSY., Starter This part replaces 0342465. |
| 4 |
0339037 |
HOUSING, Starter |
| 6 |
0203698 |
PAWL, Starter |
| 7 |
0435741 |
PULLEY & PIN, Starter |
| 9 |
0336110 |
RING, Retaining, guide |
| 10 |
ROPE, |
Starter, 65 in. (1651mm) |
| 13 |
0336096 |
SPACER, Flywheel cover |
| 14 |
0339038 |
SPINDLE |
| 16 |
0331970 |
FRICTION SPRING |
| 17 |
0432927 |
CABLE ASSY., Starter lockout |
| 18 |
0339009 |
PLUNGER, Starter lockout |
| 19 |
0325338 |
RESSORT, plongeur |
| 21 |
0339030 |
SHIELD, Spring |
