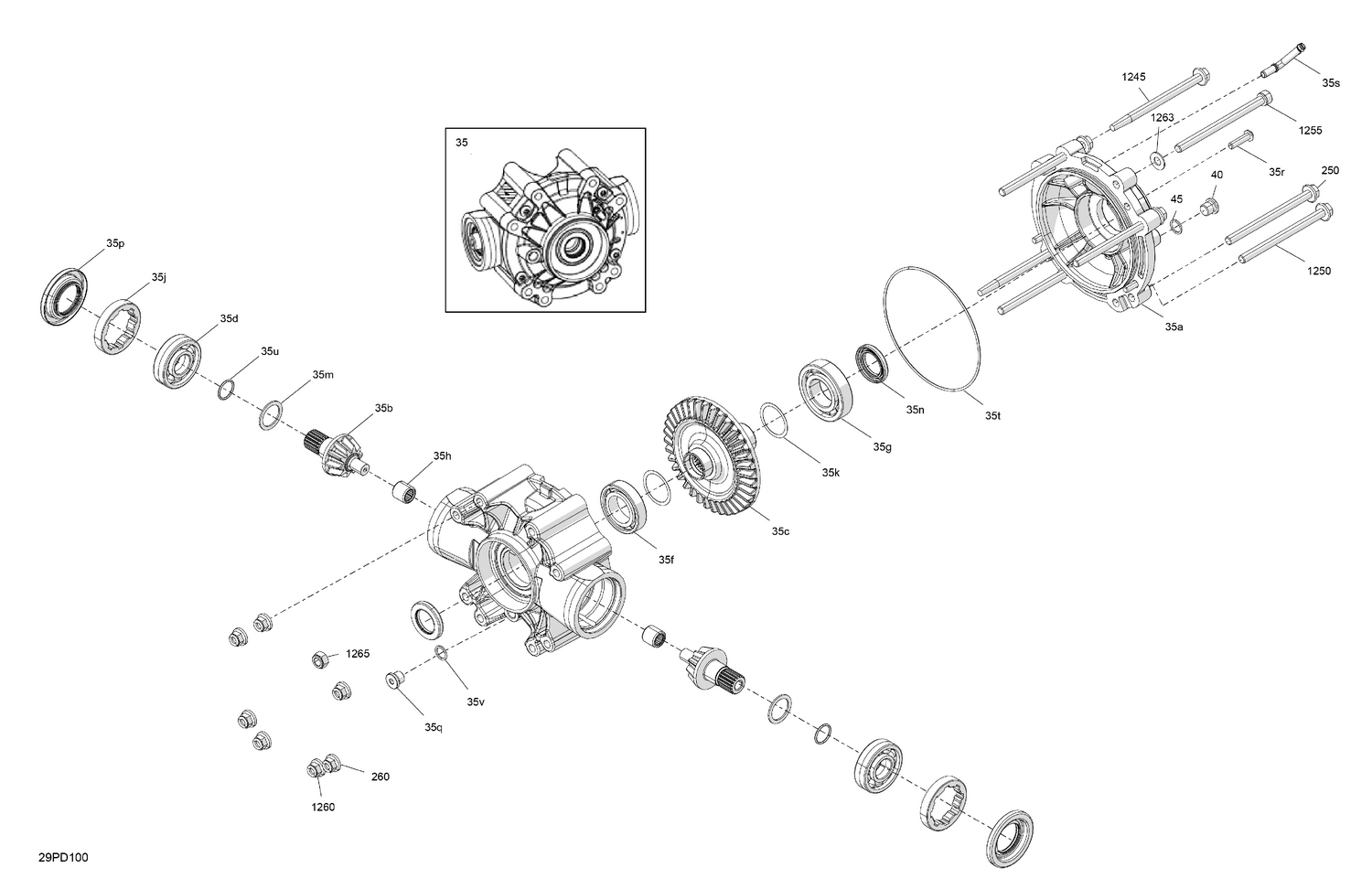

04- Drive - Middle Drive Unit
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 35a | 705502390 | Rear Cover |
| 35b | 705502823 | Pinion 10 Teeth |
| 35c | 705502822 | Gear 36 Teeth |
| 35d | 705502736 | Ball Bearing |
| 35f | 705502737 | Ball Bearing |
| 35g | 705502738 | Ball Bearing |
| 35h | 705502058 | Needle Bearing |
| 35j | 705502059 | Nut |
| 35k | 705502060 | Differential Shim 0.02 mm |
| 35m | 705502061 | Pinion Gear Shim 1.67 mm |
| 35n | 705501996 | Oil Seal |
| 35p | 705402405 | Oil Seal |
| 35q | 705500504 | Fill Level Plug |
| 35r | 205483046 | SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership |
| 35s | 705501584 | Breather Tube |
| 35t | 705502064 | Seal |
| 35u | 705502065 | O-Ring |
| 35v | 705500506 | Copper Washer |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 250 | 250001041 | Hex. Flange Screw M10 X 135 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 1245 | 705502741 | Hex. Flange Screw M10x145 |
| 1250 | 250001041 | Hex. Flange Screw M10 X 135 |
| 1255 | 250001094 | Screw Socket HD M10 X 140 |
| 1260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 1263 | 20005 | WASHER M10 - Call your local BRP dealership |
