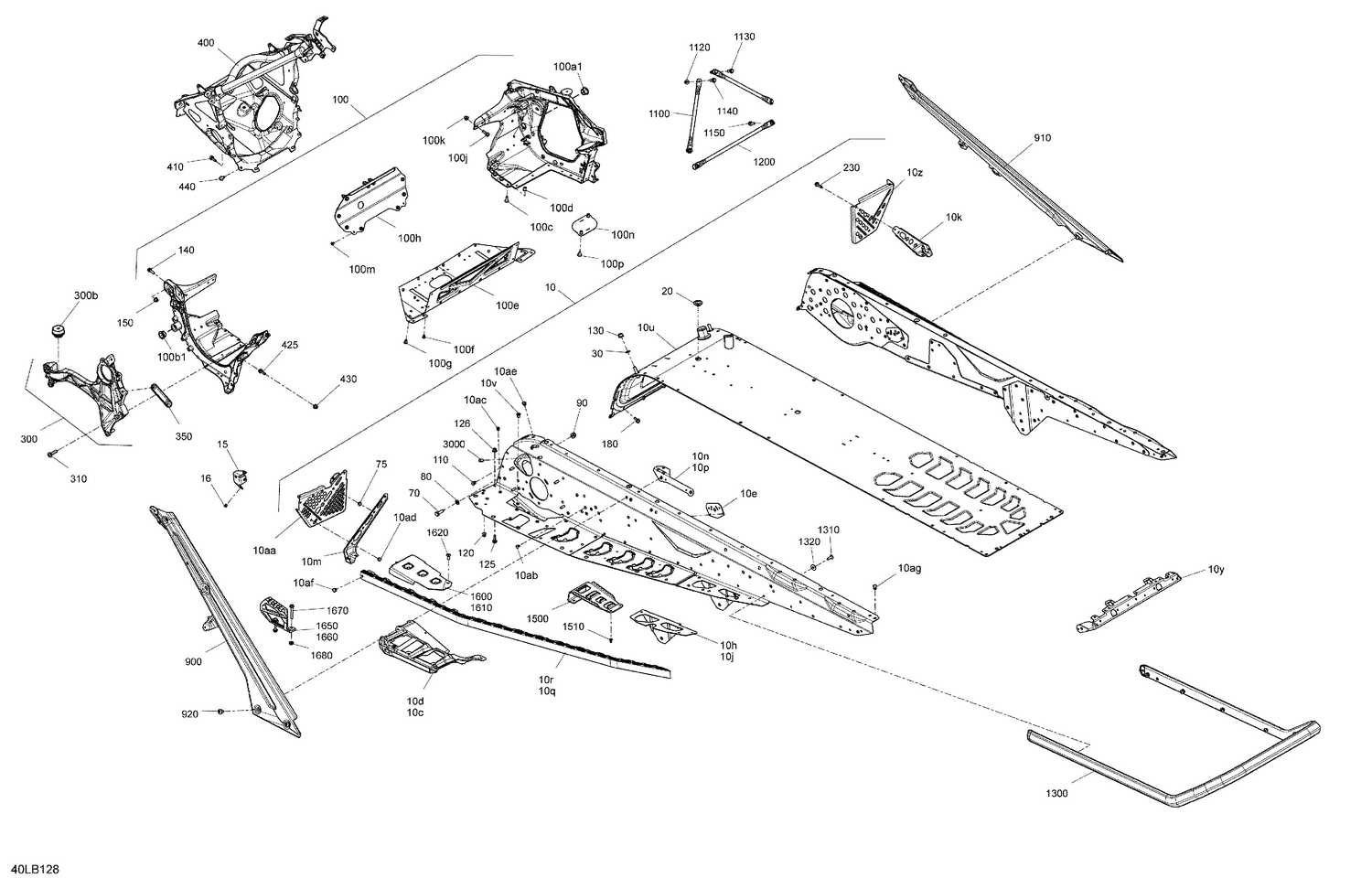

| Ref | Part Number | Description |
|---|
| 10aa |
518330550 |
LH Footrest 400mm |
| 10ab |
390909100 |
Avex Rivet |
| 10ac |
390909200 |
Avex Rivet |
| 10ad |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10ae |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10af |
293150174 |
Hemlock Rivet, 6.5 mm |
| 10ag |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 10c |
518330738 |
Deep Black, RH Footrest Reinforcement |
| 10d |
518331523 |
Deep Black, LH Footrest Reinforcement |
| 10e |
518330104 |
Front Arm Reinforcement |
| 10h |
518331221 |
LH Rear Support |
| 10j |
518331222 |
RH Rear Support |
| 10k |
518331253 |
Stirrup Reinforcement |
| 10m |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10n |
518331744 |
LH Under Chassis Reinforcement |
| 10p |
518331745 |
RH Under Chassis Reinforcement |
| 10q |
518330239 |
RH Roller |
| 10r |
518330240 |
LH Roller |
| 10u |
518334488 |
Radiator Tunnel 137 Ass'y This part replaces 518332552. |
| 10v |
605636003 |
Clinch Nut M6 Hexsert |
| 10y |
518328990 |
Rear Cap |
| 10z |
518330549 |
RH Footrest 400mm |
| 15 |
518330998 |
LH Front Chassis Reinforcement |
| 16 |
390909200 |
Avex Rivet |
| 20 |
293730052 |
Black, Plug |
| 30 |
250200146 |
Conical Spring Washer M8 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 75 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a1 |
505072690 |
Leg Bushing |
| 100b1 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100e |
518332715 |
Bottom Plate |
| 100f |
390909100 |
Avex Rivet |
| 100g |
293450268 |
Insert M5 X 0.8 |
| 100h |
518330100 |
Front Member |
| 100j |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100k |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100m |
390909100 |
Avex Rivet |
| 100n |
518332276 |
Oil Plate |
| 100p |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 120 |
293150174 |
Hemlock Rivet, 6.5 mm |
| 125 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 126 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 300b |
512061516 |
Vibration Damper |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 350 |
518331740 |
LH Front Chassis Reinforcement |
| 400 |
518334551 |
Chassis Suspension Module Ass'y This part replaces 518332098. |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 425 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 440 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 900 |
518333968 |
Viper Red, LH Diagonal Cross Member Ass'y |
| 910 |
518333831 |
Viper Red, RH Rear Diagonal Cross Member |
| 910 |
518333969 |
Viper Red, RH Rear Diagonal Cross Member |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562054 |
Hex. Flange Screw S.GRIP M6 X 20 |
| 1200 |
518329755 |
Center Column Support |
| 1300 |
518329797 |
Black, Hitch Bumper Black 146 |
| 1310 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1320 |
224061201 |
Flat Washer |
| 1500 |
520002896 |
Deep Black, Passenger Footrest This part replaces 520001782. |
| 1510 |
293150102 |
Rivet avex 12 mm. |
| 1600 |
518330279 |
Black, LH Footrest |
| 1610 |
518330280 |
Black, RH Footrest |
| 1620 |
250000755 |
Torx Screw M6 X 16 |
| 1650 |
518330797 |
LH Side Foot Support |
| 1660 |
518330798 |
RH Side Foot Support |
| 1670 |
207664554 |
Hex, Flange Screw |
| 1680 |
233161414 |
Hex. Flange Nut M6 |
