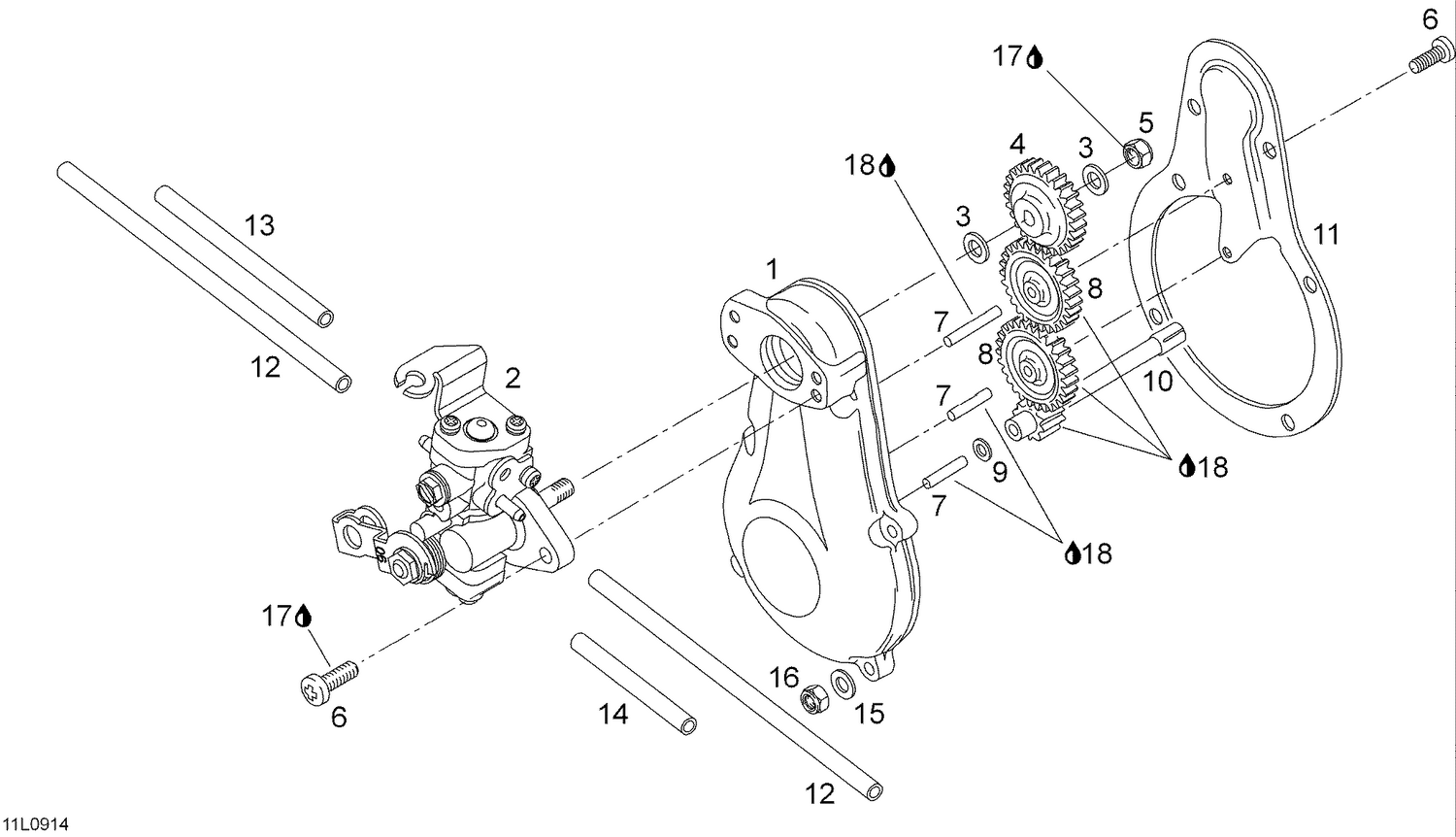

02- Oil Pump
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420810110 | FLANGED PUMP - Call your local BRP dealership |
| 2 | 420889073 | OIL PUMP ASS'Y - Call your local BRP dealership |
| 3 | 420927945 | FLAT WASHER - Call your local BRP dealership |
| 4 | 420935930 | Gear, Z-27 |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 420841971 | Screw |
| 7 | 420232420 | Pin |
| 8 | 420834210 | OIL PUMP GEAR - Call your local BRP dealership |
| 9 | 420244072 | Washer-Flat 4 This part replaces 420244073. |
| 10 | 420935970 | Gear Z-9 |
| 11 | 420810122 | FLANGED PUMP - Call your local BRP dealership |
| 12 | 414413800 | Oil line, 380mm |
| 13 | 420960726 | Isolation hose, 260mm |
| 14 | 276000048 | Isolation hose, 150mm |
| 15 | 420827800 | WASHER - Call your local BRP dealership |
| 16 | 420942025 | NUT M5 - Call your local BRP dealership |
| 17 | 293800060 | Loctite 243, 10ml |
