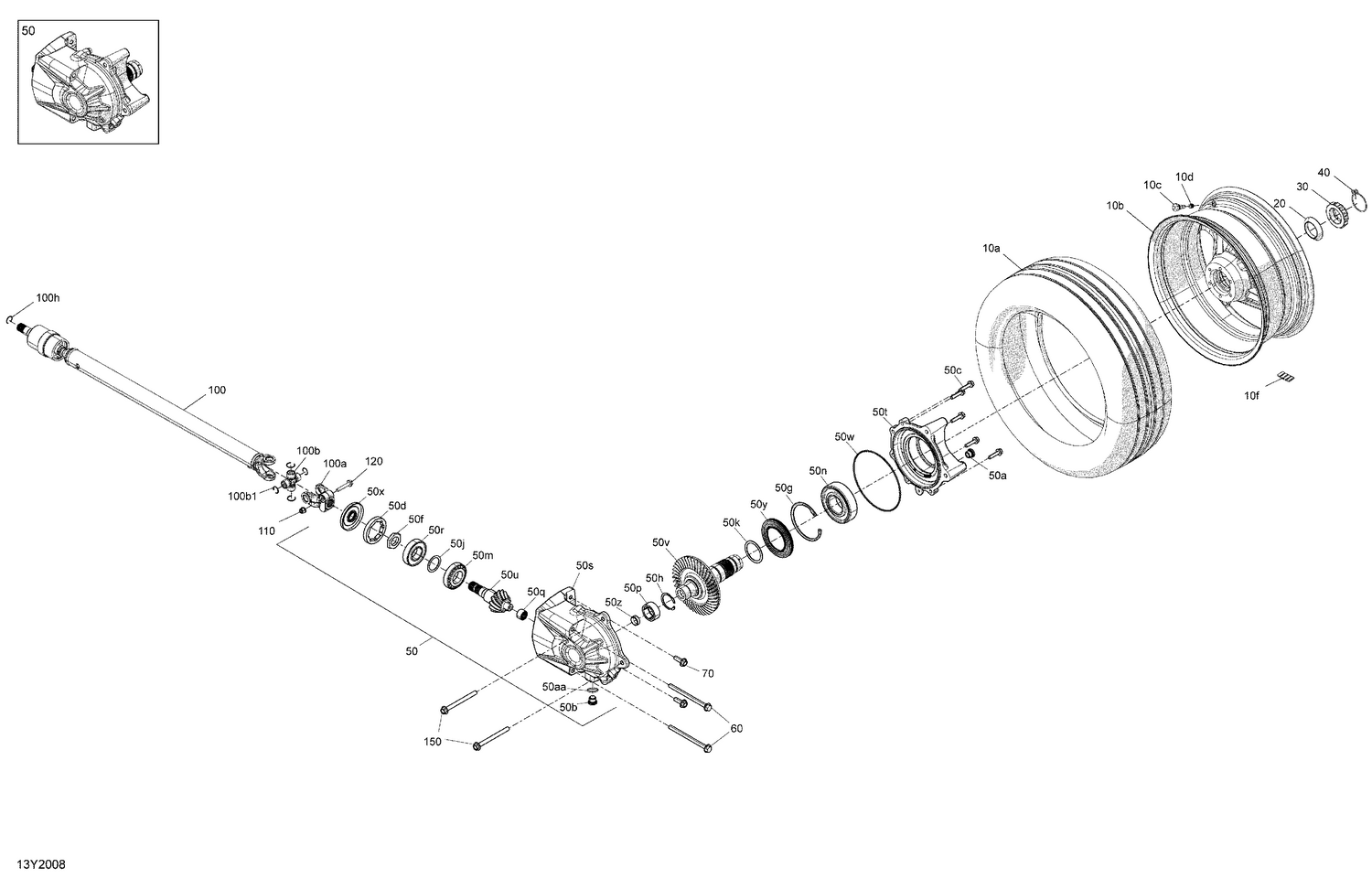

08- Final Drive, Rear Wheel - Propeller Shaft
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 705502453 | Rear Tire 205/45/R16 - 77T |
| 10b | 705503342 | Carbon Black, 16 inch Rim This part replaces 705502454. |
| 10c | 705400193 | Rim Valve With Cap |
| 10d | 293000110 | Valve Cap |
| 10f | 705502106 | Self Adhesive Weight, 5G 20mm |
| 20 | 705401983 | Conical Support Ring |
| 30 | 705402730 | Wheel Nut M45 |
| 40 | 293370168 | External Retaining Ring This part replaces 293370126. |
| 50a | 705501889 | Fill Level Plug |
| 50aa | 219800486 | O-Ring |
| 50b | 705502851 | Magnetic Plug Drain |
| 50c | 705502849 | Hex. Flange Screw M8 X 1.25 x 35 |
| 50f | 705401820 | Nut M27 X 1.5 |
| 50g | 705502840 | Retaining Ring OD 119mm |
| 50h | 705502841 | Retaining Ring OD 50.5mm |
| 50k | 705502843 | Shim 2.047po X 2.5po X 0.60po |
| 50n | 705502845 | Ball Bearing |
| 50p | 705502852 | Needle Bearing |
| 50t | 705502508 | Rear Cover Machined |
| 50v | 705503168 | Ring Gear FInal Drive Ass'y |
| 50w | 705501881 | Oil Seal iDIA 6.737 oDIA 6.943 |
| 50x | 705401827 | Oil Seal, Triple Lip 25 X 79 X 8 |
| 50y | 705502847 | Oil Seal, Single Lip 68 X 110 X 8 |
| 60 | 230604056 | Hex. Flange Screw M10 X 140 |
| 70 | 250001080 | Screw-Hex.Flange M10 X 35 S.Grip |
| 100a | 715900914 | Yoke |
| 100b | 219800424 | Universal Joint Ass'y |
| 100b1 | 219800423 | Circlip |
| 100h | 705401349 | Circlip Joint |
| 110 | 233281416 | Hex. Elastic Flange Nut M8 |
| 120 | 250001028 | Hex. Flange Screw M6 X 45 |
