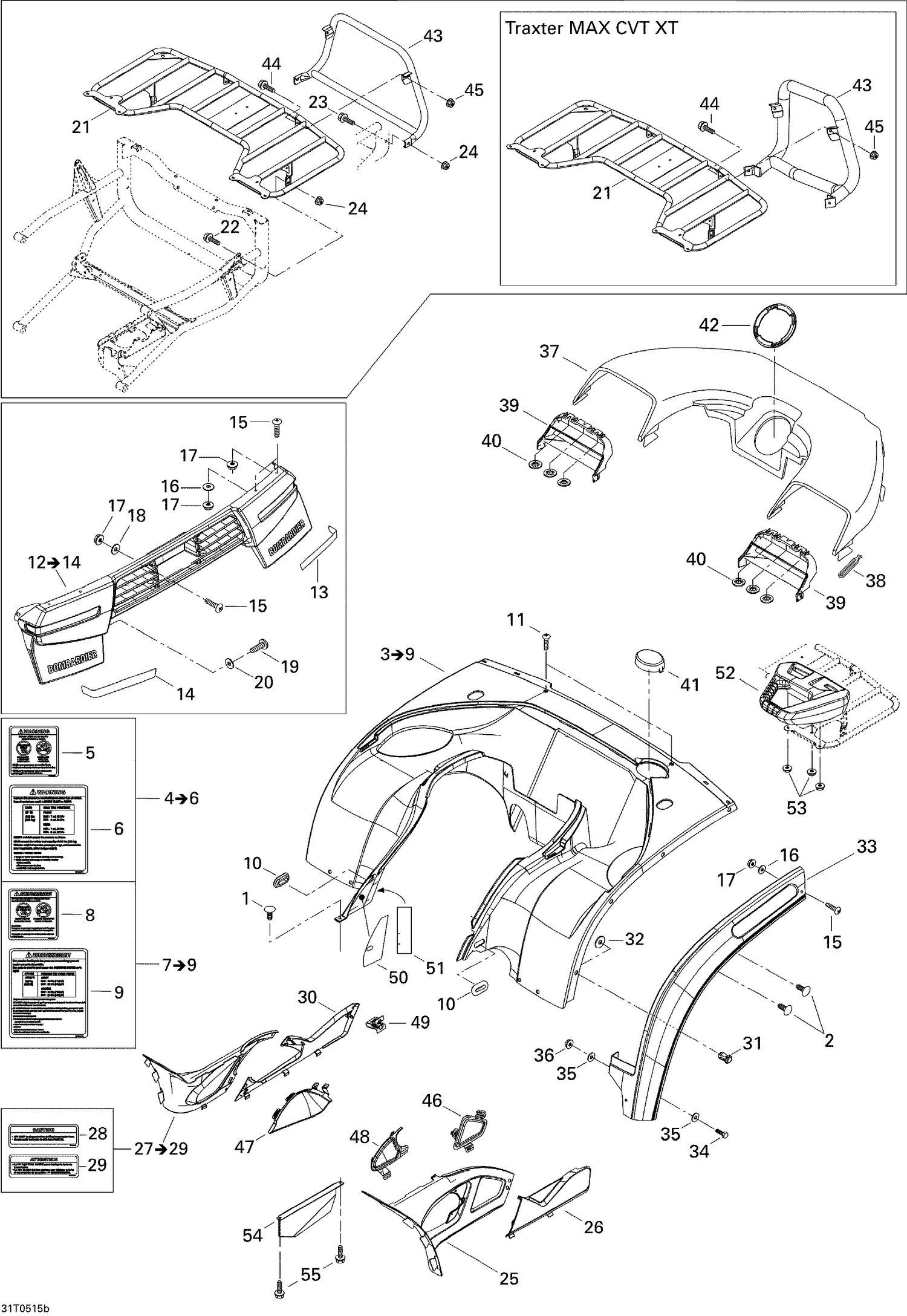

| Ref | Part Number | Description |
|---|
| 1 |
293730011 |
Black, Dart |
| 2 |
293730011 |
Black, Dart |
| 10 |
705003668 |
Oblong Grommet This part replaces 705001121. |
| 11 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 13 |
704900085 |
RH Rear Reflector |
| 14 |
704900086 |
LH Rear Reflector |
| 15 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 16 |
224060201 |
Flat Washer |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
224060201 |
Flat Washer |
| 19 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 20 |
224061121 |
Flat Washer |
| 21 |
705000674 |
Luggage Rack, Black |
| 22 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 23 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 24 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 25 |
705000934 |
LH Upper Panel, Viper Red |
| 25 |
705000935 |
LH Upper Panel, Laurentian Green |
| 26 |
705000942 |
LH Lower Panel, Viper Red |
| 26 |
705000943 |
LH Lower Panel, Laurentian Green |
| 30 |
705000946 |
RH Lower Panel, Viper Red |
| 30 |
705000947 |
RH Lower Panel, Laurentian Green |
| 31 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 32 |
234082410 |
Flat Washer 8 mm |
| 33 |
705001592 |
RH Front Mudguard |
| 33 |
705001593 |
LH Front Mudguard |
| 34 |
207162044 |
Hex. Screw M6 X 20 |
| 35 |
224060201 |
Flat Washer |
| 36 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 37 |
705000576 |
Fender Cover, Viper Red |
| 37 |
705000831 |
Fender Cover, Laurentian Green |
| 38 |
570023800 |
Windshield Latch |
| 39 |
705000180 |
LH Grill, Black |
| 39 |
705000181 |
RH Grill, Black |
| 40 |
250100000 |
PUSH NUT - Call your local BRP dealership |
| 41 |
705000132 |
COVER, BLACK - Call your local BRP dealership |
| 42 |
705000207 |
CAP - Call your local BRP dealership |
| 44 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 45 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 46 |
705000367 |
LH Rear Grill, Black |
| 47 |
705000952 |
Black, RH Rear Grille |
| 48 |
705000368 |
LH Front Grill |
| 49 |
517302785 |
Edge Clip |
| 50 |
705001297 |
Reflective Sheet |
| 51 |
705000492 |
Reflective Sheet |
| 52 |
705001761 |
LH Handle |
| 52 |
705001762 |
RH Handle |
| 53 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 54 |
705001317 |
Heatshield |
