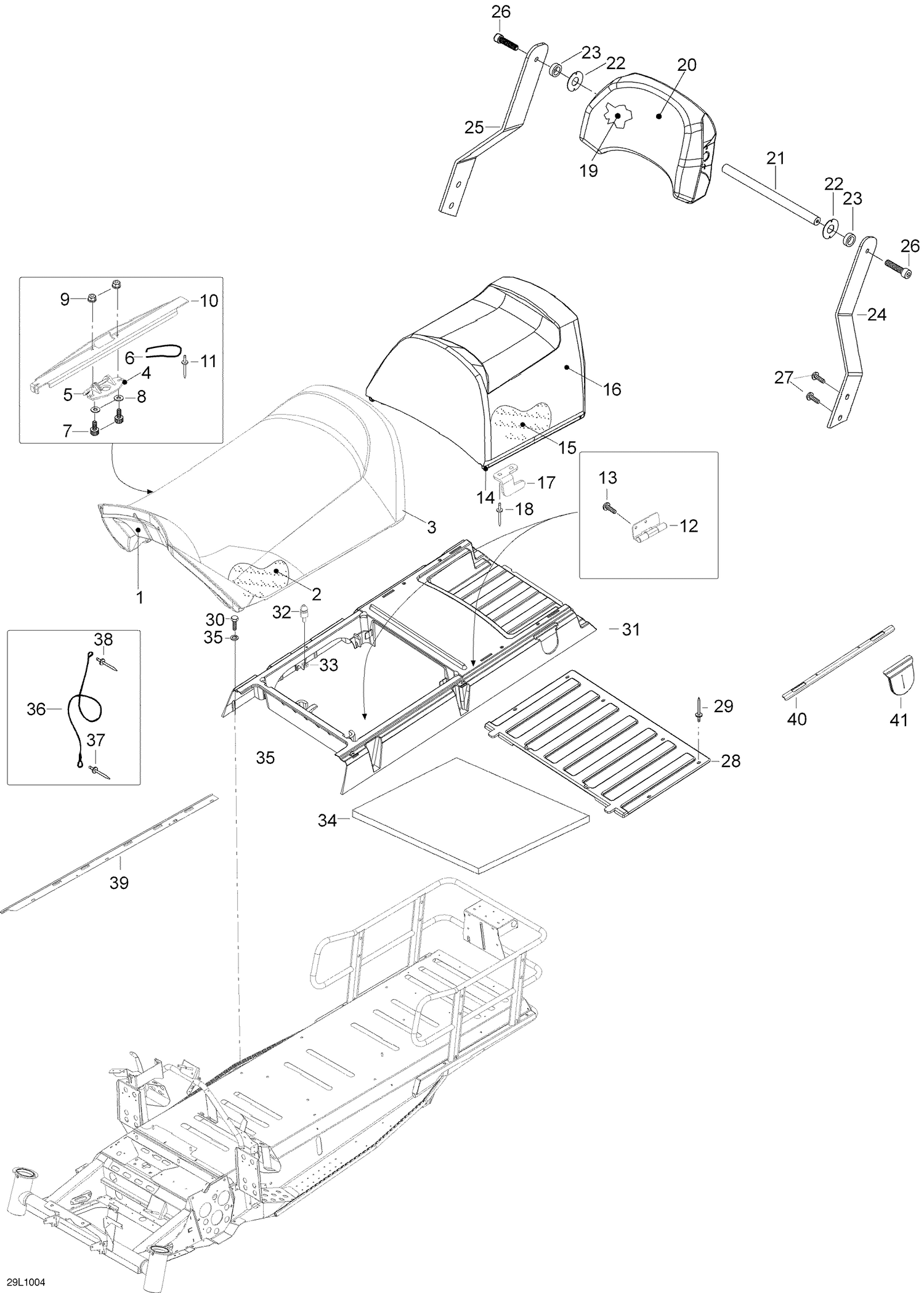

| Ref | Part Number | Description |
|---|
| 1 |
605251388 |
SEAT BASE, FRONT - Call your local BRP dealership |
| 2 |
605255689 |
Seat Foam |
| 3 |
605255216 |
SEAT FRONT COVER, SUV - Call your local BRP dealership |
| 4 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 5 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 6 |
269700109 |
Latch Ass'y |
| 7 |
40276 |
Socket head screw M6 x 25 |
| 8 |
20003 |
Washer A6,4 |
| 9 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 10 |
605352483 |
SUPPORT PLATE - Call your local BRP dealership |
| 11 |
36088 |
Rivet Avibulb 4.8x8.8 Zn(1=25pcs) - Call your local BRP dealership |
| 12 |
605351798 |
Hinge |
| 13 |
40890 |
Wronic-screw 4,2 x 16 |
| 28 |
605255587 |
FRAME COVER - Call your local BRP dealership |
| 29 |
36036 |
Rivet |
| 30 |
40029 |
Hex. screw M6 x 16 |
| 31 |
605155585 |
SEAT BASE - Call your local BRP dealership |
| 32 |
605452035 |
LOCK PIN - Call your local BRP dealership |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 34 |
605355635 |
FOAM - Call your local BRP dealership |
| 35 |
20052 |
Lock washer |
| 36 |
293750070 |
Seat Retainer Cable This part replaces 546777. |
| 37 |
36037 |
Rivet |
| 38 |
36009 |
Rivet |
| 39 |
605255762 |
RH SEAT BRACKET - Call your local BRP dealership |
| 40 |
605355816 |
REAR SEAT SUPPORT - Call your local BRP dealership |
