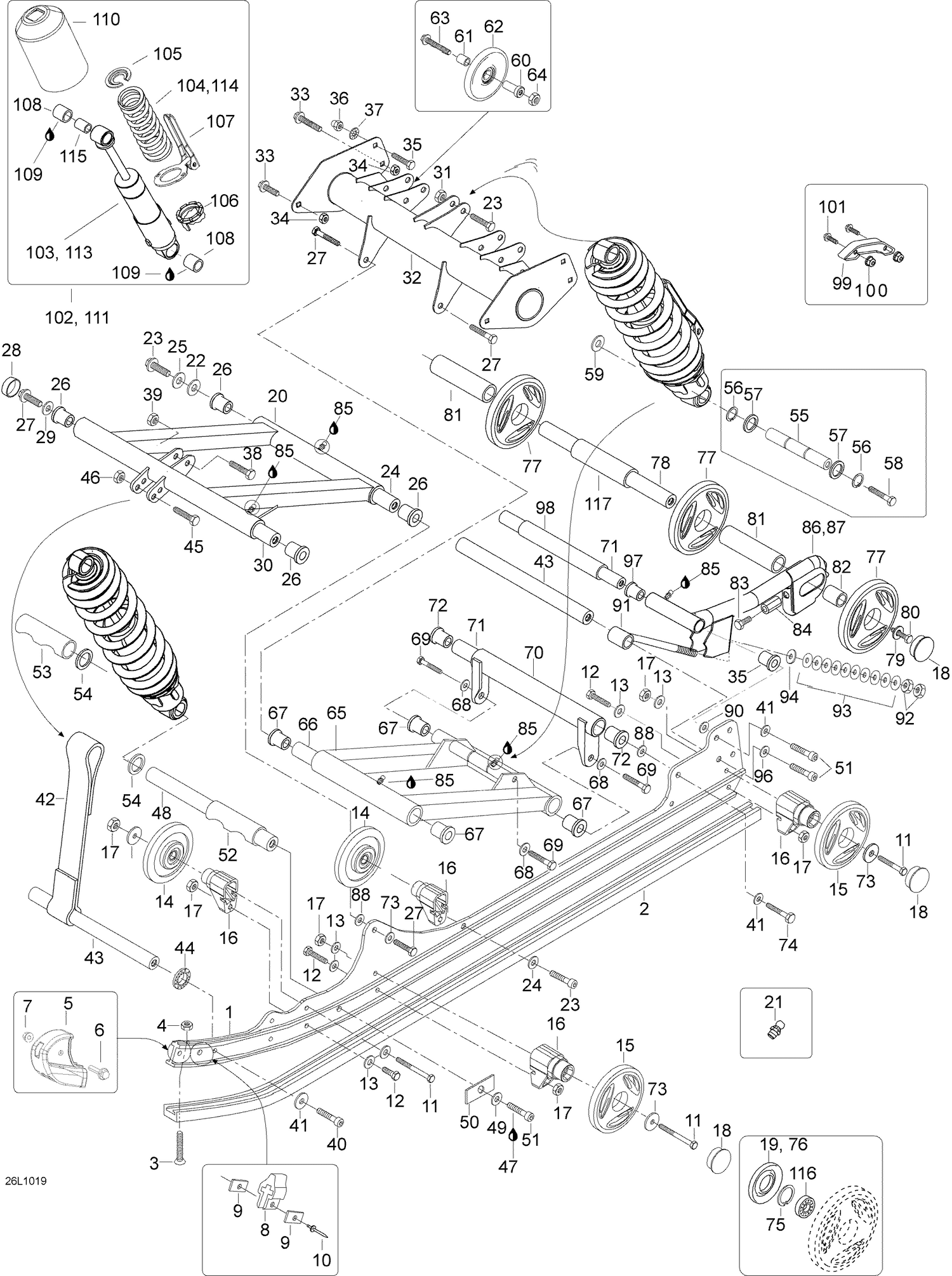

| Ref | Part Number | Description |
|---|
| 1 |
503191837 |
RAIL_SUSPENSION - Call your local BRP dealership |
| 2 |
503192021 |
Slider Shoe |
| 3 |
208562531 |
Phillips Screw M6 X 25 |
| 4 |
232561414 |
Elastic Stop Nut M6 |
| 5 |
503191137 |
Runner Protector |
| 6 |
207652544 |
Hex. Flange Screw M5 X 25 |
| 7 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 8 |
503192106 |
Rubber Stopper |
| 9 |
503191273 |
Washer |
| 10 |
293150142 |
Pop Rivet 3/16" |
| 11 |
207667044 |
Hex. Flange Screw M6 X 70 |
| 12 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 13 |
503191820 |
Wheel Cup M6 |
| 14 |
503191316 |
Black, Wheel Ass'y 141 mm |
| 15 |
503191313 |
Wheel 141 With Pattern Ass'y, Full Moon |
| 16 |
503193894 |
Casted Support This part replaces 503191833. |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
570063600 |
Wheel Cap |
| 19 |
503190434 |
Labyrinth Seal |
| 20 |
5147672 |
Front arm - Call your local BRP dealership This part replaces M5147672. |
| 21 |
408200700 |
Grease Fitting |
| 22 |
512056700 |
Lock Washer |
| 23 |
207004544 |
Hex. Screw M10 X 45 |
| 24 |
5347713 |
Lower Shaft, Front Arm This part replaces M5347713. |
| 25 |
20116 |
Shim This part replaces M20116. |
| 26 |
31024 |
Cushion This part replaces M31024. |
| 27 |
207026044 |
HEX. SCREW M12 X 60 - Call your local BRP dealership |
| 28 |
M5448025 |
Cap |
| 29 |
250200005 |
Conical Spring Washer M12 |
| 30 |
5347719 |
Upper Shaft This part replaces 605348606. |
| 31 |
232500416 |
Elastic Stop Nut M10 |
| 32 |
503191743 |
REAR BEAM - Call your local BRP dealership |
| 33 |
207782044 |
Carriage Bolt, M8 X 20 |
| 34 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 35 |
207781644 |
CARRIAGE BOLT M8 X 16 - Call your local BRP dealership |
| 36 |
232381413 |
Hex. Domed Nut DIN.1587 |
| 37 |
Not |
Available As Spare Part - Lock Washer |
| 38 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 39 |
232500416 |
Elastic Stop Nut M10 |
| 40 |
40134 |
Screw Socket HD.DIN 912 This part replaces 205004544. |
| 41 |
234001410 |
Flat Washer 10 mm |
| 42 |
503192033 |
Strap Stopper |
| 43 |
5347717 |
Shaft This part replaces M5347717. |
| 44 |
M4181158 |
Washer |
| 45 |
207084544 |
Hex. Screw M8 X 45 |
| 46 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 47 |
293800005 |
Loctite 271, 10 ml |
| 48 |
5347726 |
Shaft This part replaces M5347726. |
| 49 |
20068 |
Lock Washer D10 This part replaces M20068. |
| 50 |
5447940 |
Support plate This part replaces M5447940. |
| 51 |
205004547 |
SCREW-SOCKET HD.DIN 912 - Call your local BRP dealership |
| 52 |
5347718 |
Limiter - Call your local BRP dealership This part replaces M5347718. |
| 53 |
M5346649 |
SLEEVE - Call your local BRP dealership |
| 54 |
31013 |
Shim Ring This part replaces M31013. |
| 55 |
605451897 |
REARSHOCK SHAFT - Call your local BRP dealership |
| 56 |
293370056 |
Circlip 20X1.75 DIN471 |
| 57 |
M31091 |
SHIM - Call your local BRP dealership |
| 58 |
207004044 |
Hex. Screw M10 X 40 |
| 59 |
20068 |
Lock Washer D10 This part replaces M20068. |
| 60 |
503192085 |
IDLER WHEEL SLEEVE - Call your local BRP dealership |
| 61 |
503192086 |
IDLER WHEEL SLEEVE - Call your local BRP dealership |
| 62 |
503191316 |
Black, Wheel Ass'y 141 mm |
| 63 |
207087044 |
Hex. Screw M8 X 70 |
| 64 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 65 |
605349313 |
Rear Arm Weld Light |
| 66 |
5346865 |
SHAFT - Call your local BRP dealership This part replaces M5346865. |
| 67 |
31027 |
Flange Bearing (Cushion) This part replaces M31027. |
| 68 |
234001410 |
Flat Washer 10 mm |
| 69 |
207004044 |
Hex. Screw M10 X 40 |
| 70 |
M5347668 |
Welded Rear Arm |
| 71 |
5347713 |
Lower Shaft, Front Arm This part replaces M5347713. |
| 72 |
31024 |
Cushion This part replaces M31024. |
| 73 |
20116 |
Shim This part replaces M20116. |
| 74 |
207004544 |
Hex. Screw M10 X 45 |
| 75 |
512056700 |
Lock Washer |
| 76 |
570063600 |
Wheel Cap |
| 77 |
503191110 |
Wheel 165 mm, Full Moon |
| 78 |
503191408 |
Rear Axle |
| 79 |
503190439 |
Washer |
| 80 |
207303544 |
Hex. Screw M10 x 35 (Scotch Grip) |
| 81 |
503192047 |
SPACER - Call your local BRP dealership |
| 82 |
503192048 |
Spacer |
| 83 |
230100044 |
HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 84 |
605633002 |
Spacer |
| 85 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 86 |
503194592 |
Extension Swing Lh This part replaces 503192088. |
| 87 |
503194593 |
Extension Swing Rh This part replaces 503192089. |
| 88 |
20116 |
Shim This part replaces M20116. |
| 90 |
512056700 |
Lock Washer |
| 91 |
5447373 |
Eye bolt adjuster This part replaces M5447373. |
| 92 |
232006414 |
Hex. Nut M10 X 1.5 |
| 93 |
25004 |
Cup Spring This part replaces M25004. |
| 94 |
234002410 |
Flat Washer 10 mm |
| 96 |
234001410 |
Flat Washer 10 mm |
| 97 |
31024 |
Cushion This part replaces M31024. |
| 98 |
605448429 |
Sleeve |
| 99 |
503192731 |
SLIDING PAD - Call your local BRP dealership This part replaces M5343191. |
| 100 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 101 |
207764044 |
BOLT CARRIAGE DIN.603 - Call your local BRP dealership |
| 102 |
Not |
Available As Spare Part - Shock Ass'y, Rear Arm |
| 103 |
503192311 |
Shock |
| 104 |
503192359 |
WHITE SPRING 255 MM - 70 N/MM - Call your local BRP dealership |
| 105 |
230076 |
Spring Seat This part replaces M230076. |
| 106 |
M230078 |
CAM - Call your local BRP dealership |
| 107 |
605348748 |
ARM ADJUSTING ASS'Y - Call your local BRP dealership |
| 108 |
31094 |
Cushion This part replaces M31094. |
| 109 |
M32161 |
Glue Loctite 641/ 50ml |
| 110 |
M5346754 |
Shock Protector |
| 111 |
Not |
Available As Spare Part - Shock Ass'y, Front Arm |
| 113 |
503192307 |
Shock |
| 114 |
503191848 |
White Spring |
| 115 |
5446652 |
Bushing This part replaces M5446652. |
| 116 |
293350115 |
Ball Bearing This part replaces 293350055. |
