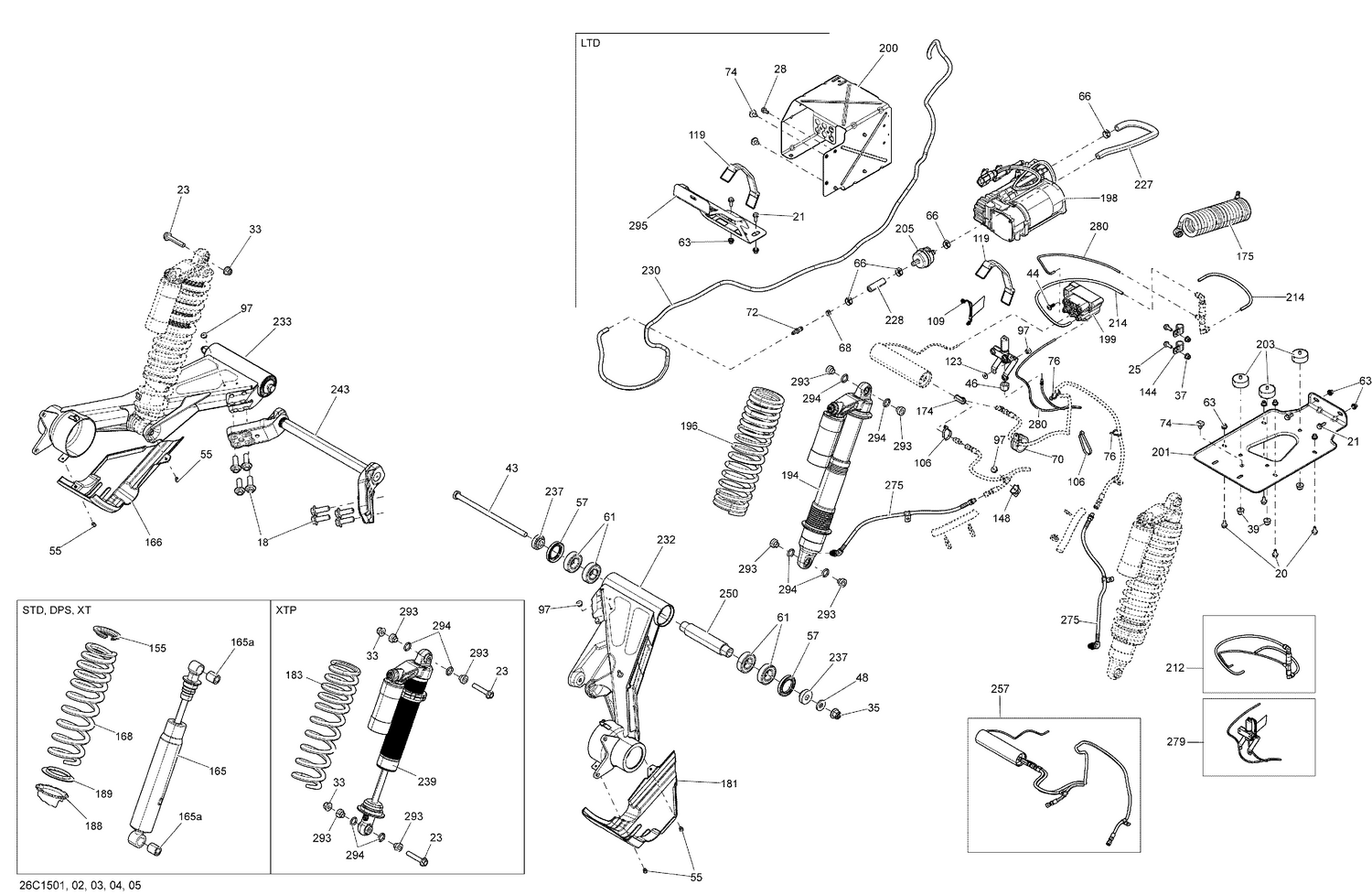

| Ref | Part Number | Description |
|---|
| 18 |
207523544 |
Hex. Flange Screw M12 X 35, Scotch Grip |
| 20 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 21 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 23 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 25 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 28 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 33 |
207605546 |
Hex. Flange Screw M10 X 55 |
| 35 |
233221416 |
Elastic Flange Nut M12 |
| 37 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 39 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 43 |
250001031 |
Hex. Cap Screw M12 X 241 This part replaces 250000515. |
| 44 |
250000546 |
Oval Head Torx Screw K60 X 16 |
| 46 |
250100124 |
Hex. Nut With Nylon 1/2" X 20 |
| 48 |
250200120 |
Flat Washer M12 |
| 55 |
293150104 |
Pop Rivet 3/16" |
| 57 |
293200094 |
Seal |
| 61 |
293350115 |
Ball Bearing This part replaces 293350055. |
| 63 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 66 |
293650053 |
Crimp Clamp |
| 68 |
293650195 |
Clamp, Oetiker |
| 70 |
293650218 |
Hose Retainer |
| 72 |
293710035 |
Straight Fitting |
| 74 |
293730040 |
Mount Dart This part replaces 293730018. |
| 76 |
293750002 |
Tie Wrap 142 mm |
| 97 |
390406500 |
Pop Rivet 3/16" |
| 106 |
414115200 |
Tie-Rap 180 mm |
| 109 |
414811400 |
O-Ring |
| 119 |
515176044 |
Battery Strap |
| 123 |
517124300 |
Washer |
| 144 |
705600040 |
Open Clamp |
| 148 |
705601337 |
Bracket |
| 155 |
XXX |
Not Available As Spare Parts |
| 165 |
XXX |
Not Available As Spare Parts |
| 165a |
XXX |
Not Available As Spare Parts |
| 166 |
706000630 |
LH Joint Protector |
| 168 |
XXX |
Not Available As Spare Parts |
| 174 |
706000806 |
T-FITTING - Call your local BRP dealership |
| 175 |
706000808 |
Auxiliary Hose |
| 181 |
706000814 |
RH Joint Protector |
| 183 |
XXX |
Not Available As Spare Parts |
| 188 |
XXX |
Not Available As Spare Parts |
| 189 |
XXX |
Not Available As Spare Parts |
| 194 |
706001039 |
Rear Shock Ass'y |
| 196 |
706001040 |
BLACK REAR SPRING - Call your local BRP dealership |
| 198 |
706001100 |
COMPRESSOR - Call your local BRP dealership |
| 199 |
706001104 |
Solenoid Valve |
| 200 |
706001120 |
UPPER SUPPORT - Call your local BRP dealership |
| 201 |
706001121 |
LOWER SUPPORT - Call your local BRP dealership |
| 203 |
706001127 |
RUBBER MOUNT - Call your local BRP dealership |
| 205 |
706001141 |
Air Filter |
| 212 |
706001144 |
PRESSURE DISTRIBUTOR ASS'Y - Call your local BRP dealership |
| 214 |
706001145 |
HOSE, POLYURETHANE 6 MM - Call your local BRP dealership |
| 227 |
219704411 |
FUEL LINE 10000MM LONG - Call your local BRP dealership |
| 228 |
219704411 |
FUEL LINE 10000MM LONG - Call your local BRP dealership |
| 230 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 232 |
706001513 |
RH Swing Arm |
| 233 |
706001514 |
LH Swing Arm |
| 237 |
706001350 |
Spacer |
| 239 |
706002004 |
REAR SHOCK - Call your local BRP dealership |
| 243 |
706001718 |
Sway Bar |
| 250 |
706001529 |
Bushing |
| 257 |
706001751 |
Rear Shock Distributor |
| 275 |
706002299 |
Rear Hose Ass'y This part replaces 706001754. |
| 279 |
706001873 |
BRACKET ASS'Y - Call your local BRP dealership |
| 280 |
706001874 |
HOSE 4.0MM - Call your local BRP dealership |
| 293 |
715500361 |
Interior Bushing |
| 294 |
715500360 |
O-RING BUSHING - Call your local BRP dealership |
