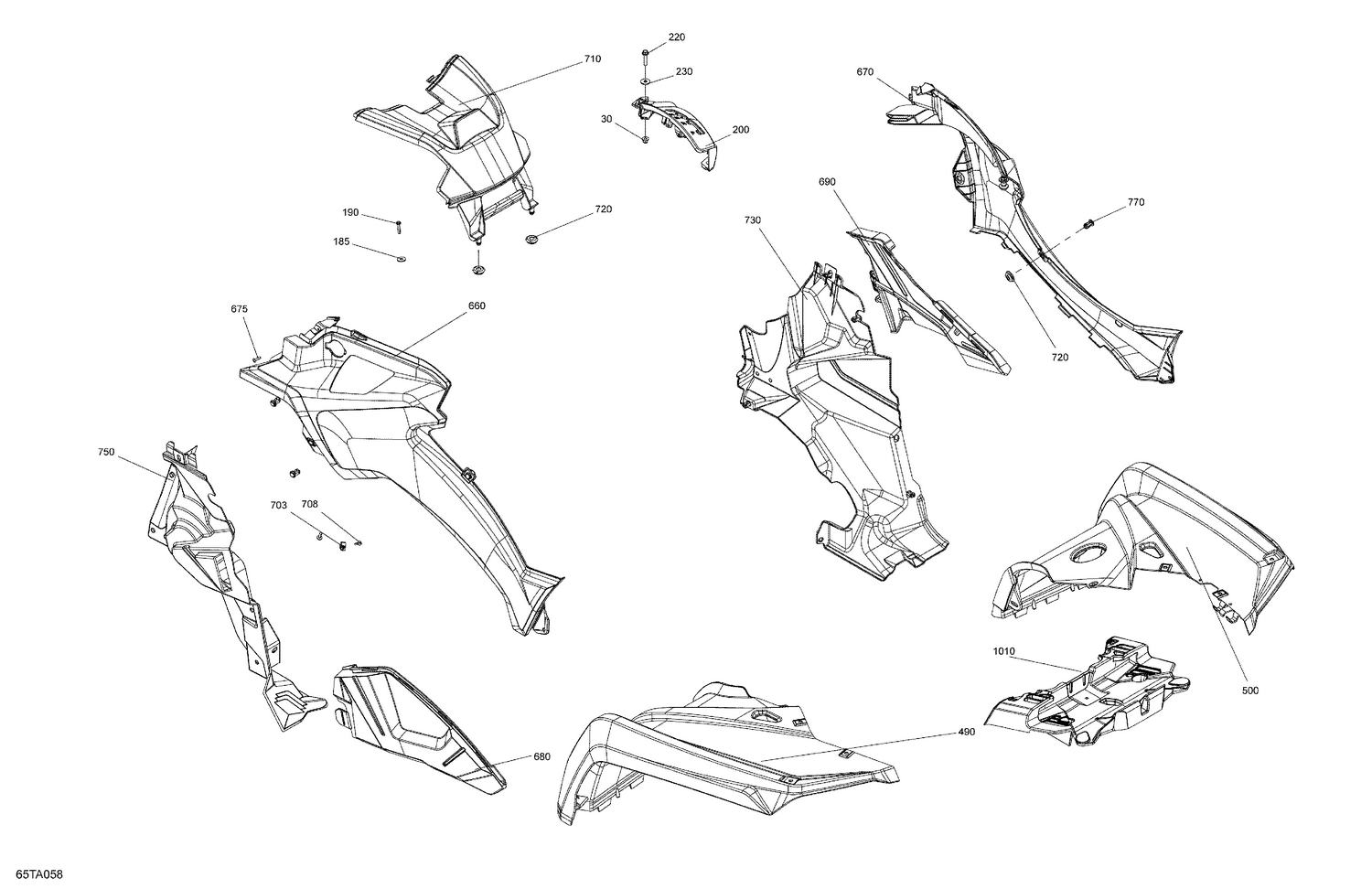

07- Body - Fender Kit
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 185 | 234062600 | Flat Washer M6, Stainless |
| 190 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 200 | 715003973 | Shifter Gate Kit |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 | 224061201 | Flat Washer |
| 490 | 715007952 | Tundra Green, LH Rear Fender Ass'y |
| 500 | 705015272 | Tundra Green, RH Rear Fender |
| 660 | 705015279 | Tundra Green, LH Central Body Panel |
| 670 | 705015280 | Tundra Green, RH Central Body Panel |
| 675 | 250000723 | Phillips Screw K40 X 16 |
| 680 | 715007294 | Deflector Body Panel Kit |
| 690 | 705003444 | Engine Cover |
| 703 | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 708 | 250000797 | Torx Head Screw M4 X 16 |
| 710 | 715005837 | Dash Kit |
| 720 | 705003264 | Grommet |
| 730 | 705017023 | RH Front Wheel Arch Protector This part replaces 705010714. |
| 750 | 705017022 | LH Front Wheel Arch Protector This part replaces 705012338. |
